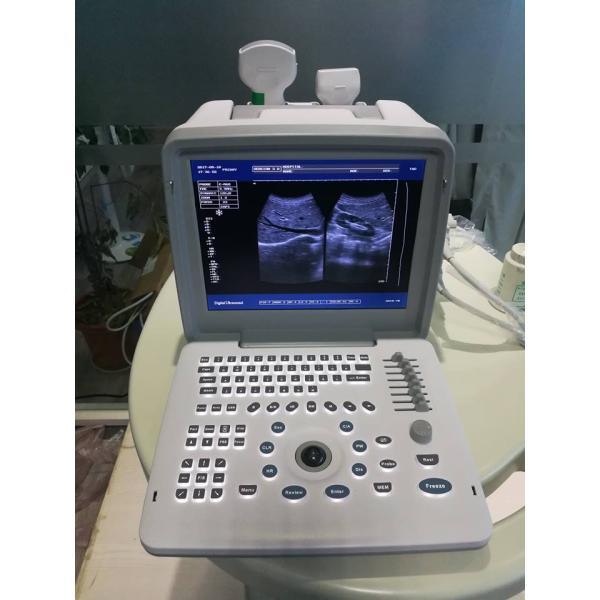

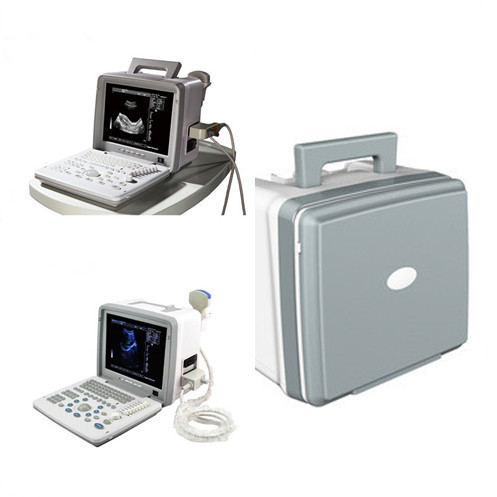

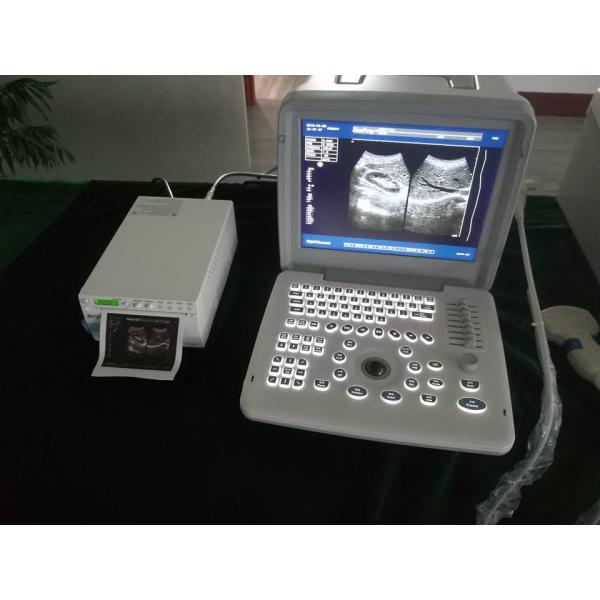

Black White Portable Ultrasound Scanner Equipment For Obstetrics / Gynecology

Black White Portable Ultrasound Scanner Equipment For Abdominal / Obstetrics / Gynecology With Cheapest Price

Product Description

1. Image Mutiplying Factor

3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)

2. Image Processing

Correction, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue

3. Display Modes

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M

5 MHz/R20 Dimpling array probe:B

6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B

4. Focus Position

1,2,3 and 4-segments dynamic electron focusing

5. Frequency Conversion

2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe

6. Measuring Function

Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.

7. Annotation Function

hospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display

8. Gain Control

8 segments TGC and overall gain can be adjusted respectively

9. Capacity Cine Loop

real time display 256 consecutive images which are memorized successively

10. Output Interface

VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc

Our workshop

Our workshop

State (Beijing) Medical Technology Co., Ltd. established in 2002, is a High-tech medical products enterprise combining R&D, production ,sales and after-sale together, specialized in Medical Ultrasonic Instruments, ENT Workstation, Medical Endoscope Imaging Systems, Colposcope, Spectral Instrument for gynecology, Plasma Air Disinfection Machine, X-ray machines and etc. We constantly develop high-quality electric medical devices by adopting the domestic advanced technical facilities to blend the computer information process technology and clinical medicine research perfectly.

With advanced ultrasonic technology, high-standard quality system, strict production process control and efficient after-sales service, our medical ultrasound products has obtained the trust of many medical institutions, such as Colour Doppler ,Digital B/W Ultrasound, Wireless Mini Ultrasound Scanner. Our Colour Doppler is the advanced scientific research achievement of State, which is the reflection that State has been taking customer's demand as design concept and making excellent technology innovation as backup force whether from scalable structure or high-quality images and powerful clinical application. State supply cost-effective and best image colour ultrasounds to global medical communities and make ultrasonic diagnosis enter into a new level. State has got good social and economic benefits because it pays attention to develop new technology and products, train and introduce high-quality talents.

State has first passed the ISO 13485 certificate and the Quality System Certification of ISO9001 as early as 2004 among the same industry in China. The ISO14001 environmental management system certification and ISO 18001 occupational health and safety management system certification has been obtained in 2012. By the end of 2016, three products of our factory have passed the European CE certification. So far, we have 4 computer software copyrights, 2 invention patents, 18 practical and new patents. We always put "quality-oriented, customer the first" as our tenet and stick to the belief "high-standard product, excellent service". We will explore and develop unceasingly and try to make outstanding contributions to human health in the world, which is the common goal of every State people.
