| Brand Name: | WILFORD |
| Model Number: | CLDR |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 stand |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 stand/stands per Month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | Packing in wooden box |
| Rated thermal power: | 0.06-0.29MW |
| Total heating capacity: | 50000-250000 |
| Input power: | 60-300 |
| Input current: | 90-450A |
| Overall size: | Depends |
| Weight: | 0.21-0.37T |
50000 - 250000Kcal Electric Hot Water Boiler For Cleaning Industry
Product introduction
Parameter
| CLDR0.06-95/70 | CLDR0.12-95/70 | CLDR0.17-95/70 | CLDR0.23-95/70 | CLDR0.29-95/70 | |||
| Project | Unit | ||||||
| Rated thermal power | MW | 0.06 | 0.12 | 0.17 | 0.23 | 0.29 | |
| Total heating capacity | 104kcal | 5 | 10 | 15 | 20 | 25 | |
| Rated working pressure | MPa | Ordinary Pressure | |||||
| Input Power | KW | 60 | 120 | 180 | 240 | 300 | |
| Input current | A | 90 | 180 | 270 | 360 | 450 | |
| Rated Voltage | V | 3N AC 50HZ 380V | |||||
| Power×Group | KW×P | 20×3 | 20×6 | 30×6 | 30×8 | 30×10 | |
| Water inlet diameter | DN | 50 | 65 | 65 | 65 | 65 | |
| Water outlet diameter | DN | 50 | 65 | 65 | 65 | 65 | |
| Blowoff valve diameter | DN | 25 | 25 | 25 | 25 | 25 | |
| Overall size | Length | mm | 750 | 920 | 960 | 1050 | 1120 |
| Width | mm | 900 | 820 | 860 | 970 | 1020 | |
| Height | mm | 1020 | 1200 | 1400 | 1510 | 1630 | |
| Weight | kg | 210 | 245 | 310 | 340 | 370 | |
Feature
1 . No pollution, using electricity as a heat source
2 . Durable heating tube
3 . Control cabinet with high protection level
4 . Small heat loss
5 . Ground wiring identification
6 . A variety of protection devices are complete

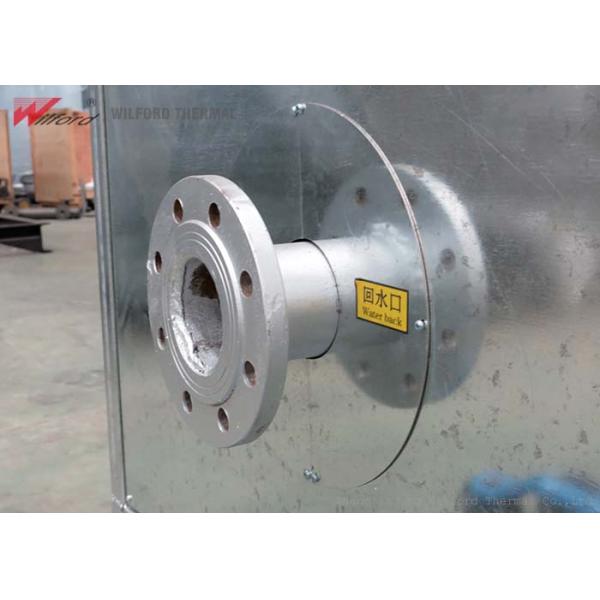

Product picture

|
