| Categories | RO Water Treatment Plant |
|---|---|
| Brand Name: | CHUNKE |
| Model Number: | CK-RO |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | TT |
| Supply Ability: | 1000 unit per month |
| Delivery Time: | 7-10 days |
| Item: | Ro water plant |
| Structure: | Filtering machine |
| Voltage: | 220V / 380V |
| Pump: | CNP\Ling Xiao\ |
| Recovery rate: | ≥50%-60% |
| Organic removal rate:: | ≥98% |
| Capacity: | 0.5TPH |
| Material: | SUS 304 or SUS 306 |
| Packaging Details: | wooden box package |
Auto Valve 500L Per Hour RO Water Treatment Plant filtering machine pure water equipment
RO Water treatment Equipment:
1, capacity: 500-50000LPH
2, material: 304 S.S
3, Conductivity≤20
Water treatment equipment is for producing drinking water, foods
factory, beverage factory, fruit&vegetable factory etc. The
machine is integrated into a group, the assembly and transportation
are rather convenient.
It's simply operation and has long lifespan.
Main complonents: RO membrane(Hydecanme),
high pressure pump(South.China)
Electricity conduction meter
Over high or over low pressure protection failities
304 Stainless steel
Suitable for investment for mid-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
Bacter no.: Not more than 20
Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid,
etc.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter,
etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and
easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane,
accuracy is 5μm.
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can
reach 99%, removing over 99% ions.

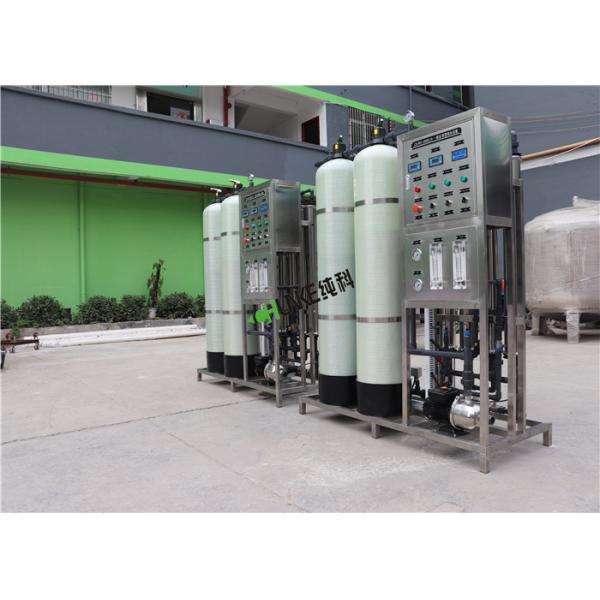

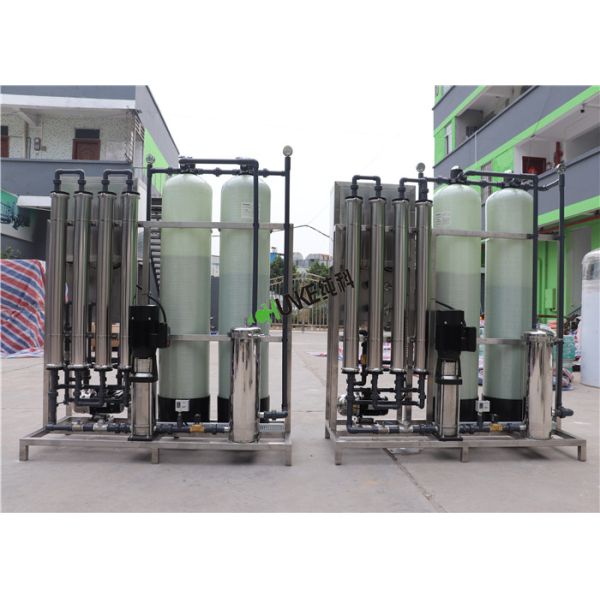

Detail Pictures :


|
