| Categories | RO Water Treatment Plant |
|---|---|
| Brand Name: | CHUNKE |
| Model Number: | CK-RO |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negotiate |
| Payment Terms: | TT |
| Supply Ability: | 100 units per month |
| Delivery Time: | 7-15days |
| Packaging Details: | wooden box package |
| Name: | Water Treatment Equipment, Reverse Osmosis Treatment Plant, Brackish Water System |
| Material: | FRP or stainless steel |
| Output: | 0.25T-100T per hour |
| Control: | Automatic Controll |
| RO Membrane: | Dow/Vontron/LANXESS/Hydraunic |
| Voltage: | 220v/380v |
OEM RO Water Treatment Equipment , Reverse Osmosis Treatment Plant , Brackish Water System
RO Water Treatment Plant:
We provide standard one-set RO system machine for different field request, it mainly be used in Electronic industry, Pharmaceutical, Chemical industry, Boiler feed water, Drinking water, Food industry and Seawater desalination process, etc…
Our standard machine’s design shoot to normal and useful field, it includes below main parts: Raw water pump, Muti-medium filter, Active Carbon filter, Antiscaling (chemical) system, Cartridge filter(Micron filter, 5um); RO system plant(RO membrane, RO membranes housing, instrument and apparatus, pressure gage), Cleaning in Place system, Automatic Flushing systems.
RO system FEATURE:
| 1 | RO Pure water treatment plant is for producing drinking water, Pharmaceutical Factory, foods factory, beverage factory, fruit& vegetable factory etc. The machine is integrated into a group; the assembly and transportation are rather convenient. |
| 2 | It's simply operation and has long lifespan. |
| 3 | Main components: RO membrane (USA DOW) |
| 4 | High pressure pump: Danmark |
| 5 | Electricity conduction meter |
| 6 | Over high or over low pressure protection facilities |
| 7 | 304 Stainless steel (Stainless Steel 316L is available) |
Ro Plant PLANT PROCESS:
1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter
2.Silica Sand filter -- get rid of turbidity, suspended matter,
organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic
matter, harmful matter and so on
4.Softener--reduce the hardness of water
5.Micron filter--prevent any deposition of large Particles, most of
the bacteria, and viruses into the RO membrane, The
accuracy is 5um, for holding back any large particulates such as
large iron, dust, suspended matter, impurity.
6.High pressure pump-- Provide the high pressure to RO membrane (at
least 2.0 M pa).
7.RO system--RO system is the main part of pure water treatment
plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.

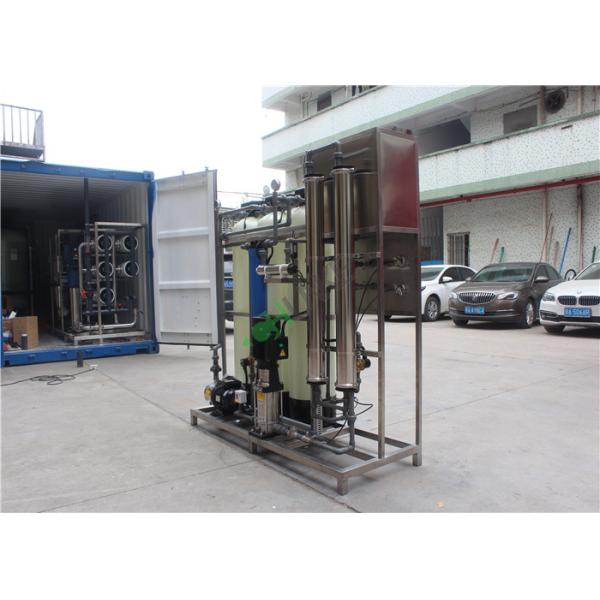

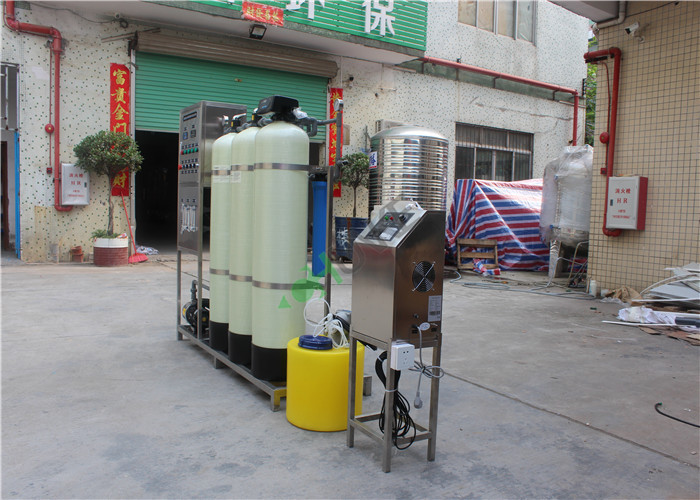

RO water treatment Plant detail picture:
|
