Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

Categories Tungsten Products
Brand Name: JBNR
Model Number: WT20,WP,WC20,WL10,WL15,WL20
Certification: ISO9001:2008
Place of Origin: China
MOQ: Negotiation
Supply Ability: 1000 Kilogram / Kilograms per Month
Delivery Time: 15-25days
Packaging Details: plywood box with foam sheet inside
Operating Current: DC AC
Welding Current: 60-90,90-120,120-150
Operating Temperature: Standard Temperature
Application: TIG Welding, For welding,Smelting,, welding and cutting
Surface: Ground Finish
Standard: ISO 6848, AWS A.5.1 E6013
Length: 175, 300, 350, 400,450mm
Diameter: 2.0, 2.5, 3.2, 4.0mm
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

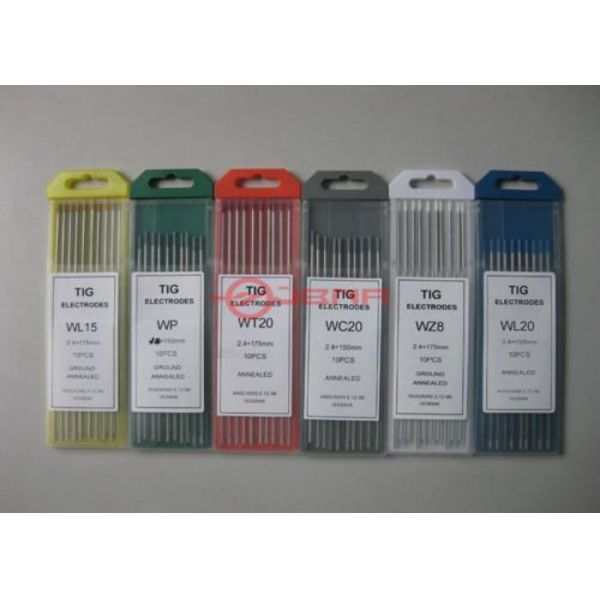

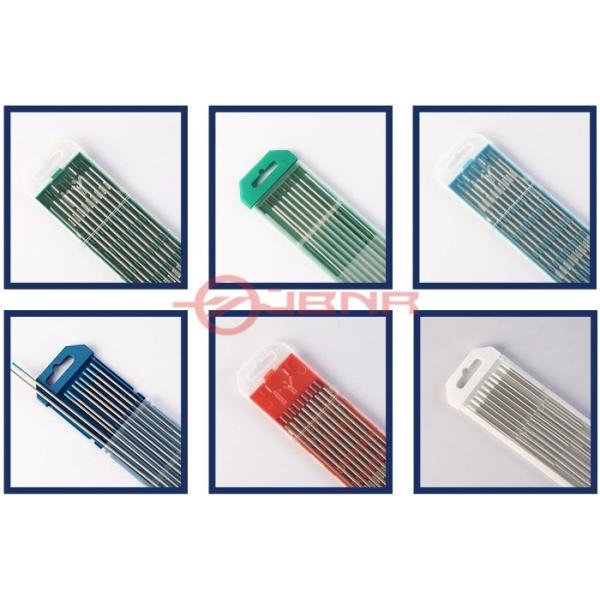

Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

Tungsten Product Tungsten Electrode For Tig Welding Torch Tungsten Welding Rod Tungsten Welding Electrode


We have generally all types of tungsten electrodes for TIG welding, such as ce - w electrode , law electrode , th - w electrode , zr - w electrode , yt - w electrode , pure tungsten electrode , w-rex electrodes, the working performance is good and price is competitive, we accept sample before cooperation.


tungsten electrode compositionColor mark
GradeDioxideDioxide in %Impurities %tungsten %
WT10ThO20.80-1.20≤0.02RemainderYellow
WT20ThO21.70-2.20≤0.02RemainderRed
WT30ThO22.80-3.20≤0.02RemainderPurple
WT40ThO23.80-4.20≤0.02RemainderOrange
WC20CeO21.80-2.20≤0.02RemainderGrey
WL10La2o30.90-1.20≤0.02RemainderBlack
WL15La2o31.40-1.60≤0.02RemainderGold
WL20La2o31.90-2.10≤0.02RemainderBlue
WZr3ZrO20.15-0.50≤0.02RemainderBrown
WZr8ZrO20.70-0.90≤0.02RemainderWhite
WP--≤0.0299.8Green
WYYO21.80-2.20≤0.02RemainderSky blue
WS2YO21.80-2.20≤0.02RemainderTurquoise

DiameterDiameter toleranceLengthLength tolerance
mminchmmmmmm
11/25(+/-)0.0150,75,150,175(+/-)1.0
1.26/125(+/-)0.0150,75,150,175(+/-)1.0
1.61/16(+/-)0.0250,75,150,175(+/-)1.0
22/25(+/-)0.0250,75,150,175(+/-)1.0
2.43/32(+/-)0.0250,75,150,175(+/-)1.0
33/25(+/-)0.0350,75,150,175(+/-)1.0
3.21/8(+/-)0.0450,75,150,175(+/-)1.0
45/32(+/-)0.0450,75,150,175(+/-)1.0
4.83/16(+/-)0.0450,75,150,175(+/-)1.0
51/5(+/-)0.0450,75,150,175(+/-)1.0
615/64(+/-)0.0450,75,150,175(+/-)1.0
6.41/4(+/-)0.0450,75,150,175(+/-)1.0
85/16(+/-)0.0450,75,150,175(+/-)1.0
102/5(+/-)0.0450,75,150,175(+/-)1.0

Feature of tungsten electrode for tig welding

Low electronic function

Good conductivity

Good electron emission ability

Good mechanical cutting performance

High elastic modulus, Low vapour pressure

High recrystallization temperature


Packaging

10pcs in plastic case

one carton box with 1000pcs inside

protective bubble inside

Note: your special request will be available for the package of tungsten electrode.
