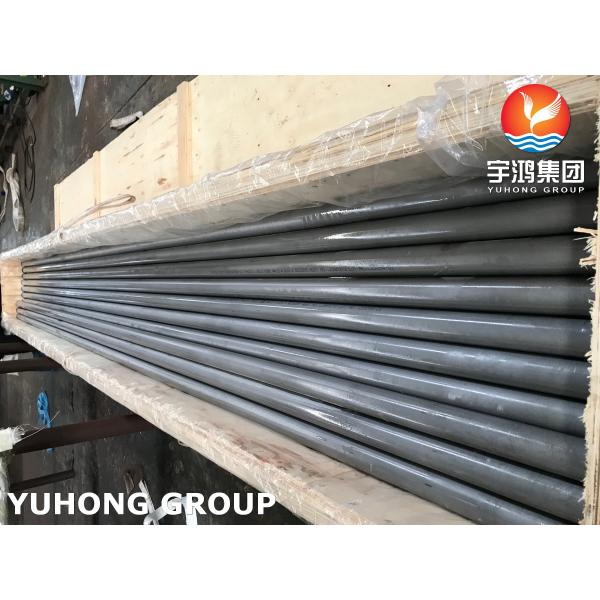

ASTM A268 TP430Ti Ferritic Stainless Steel Tube Petroleum Chemical Condense Heater
YUHONG GROUP deal with seamless steel pipe and tube already more than 33 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 70 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ...
Chemical Composition of ASTM A268 TP430Ti Stainless Steel Tube
| Grade | C | Si | Mn | P | S | Cr | Ti | Ni |
| TP430Ti, UNS S43036 | 0.10 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 25.0~27.5 | 5XC min, 0.75 max. | 0.75 max |
Mechanical Properties of A268 TP430Ti Stainless Steel Tube
| Tensile strength Mpa, min | Yield strength Mpa, min | Elongation in 2'' %, min. |
| 415 | 240 | 20 |
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
|---|---|---|---|
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
| 1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10< | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
Characteristics of ASTM A268 TP430Ti Stainless Steel Tube
Overwiew:
430Ti is an alternative to 430 with better formability and
weldability for stamping, drawing and complex shape applications.
applications and complex shapes. It is a medium chromium ferritic
stainless steel that can be used in many lightly corrosive
environments.Used in many mildly corrosive environments. Due to its
titanium alloying, 430Ti can be welded in all sizes without being
susceptible to intergranular corrosion.
430Ti can be used at high temperatures, for example at the cold end
of automotive exhaust systems.
Application:
petroleum
chemical
war and electricity industries
food processing
medical industry
machinery
hardware fields.
|
