| Categories | Precision Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | Armamentarium |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 250.000 X 250.000 X 251.000 |
| IMM Tonnage: | 100 T |
| Mold Weight: | 94kg |
| Standard mold base P/N: | CI2025.507070 |
| Part material: | PA12+15%GF |
| Part weight: | 0.45g |
| Type: | Two-plates mold |

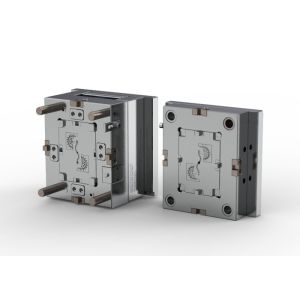

Transparent Medical Instrument PN-1913 (1*4)
No.21069
[Standard]: LKM
Standard mold base P/N: CI2025.507070
L250 | W250 | H250 Net weight 94 kg
|
|
|
Features: Assisted Ejection Injection/Runner
Type: Cold Runner

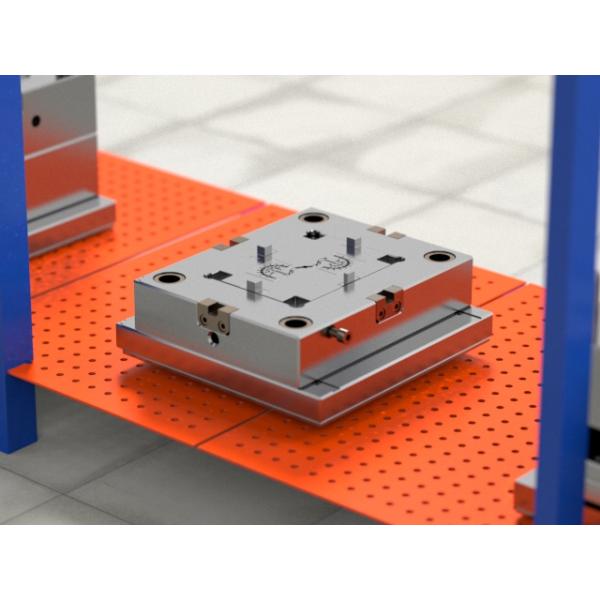

| This is a two-plates mold developed (designed and manufactured) by Chitwing with side gate according to the part appearance characteristics and cost-effective requirements. The mold is easy to fill, with minimized loss of material. The surface polished to SPI-B1; harden the cavity and core with 1*4/S136 to improve the hardness, anti-corrosion and anti-wearing performance; with assisted demolding, short cycle time, reducing the labor cost | ||||||
[IMM tonnage]: 100T
|
|

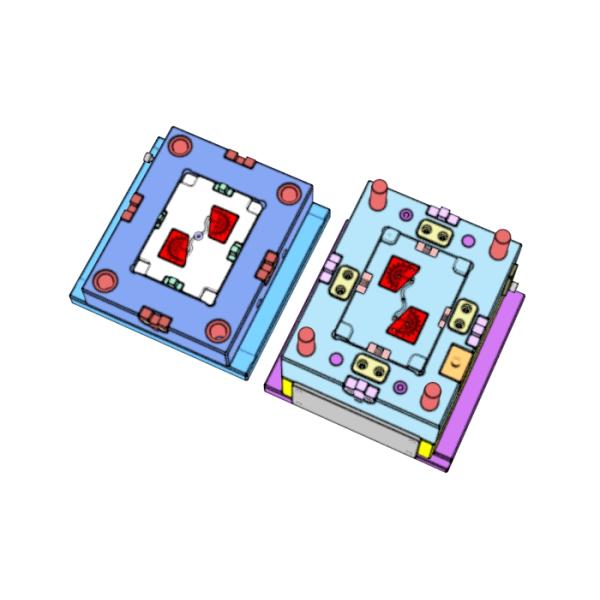

Display diagram
|
