| Categories | Precision Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | CWM21072 Instrument PN-2044 -B |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 250.000 X 250.000 X 251.000 |
| IMM Tonnage: | 100T |
| Mold Weight: | 102kg |
| Standard: | LKM |
| Design software: | <3D:UG 4.0>/ <2D:CAD> |
| Mould life: | 500，000 shots |
| Runner: | Cold runner |
| Gate: | Cashew gate |

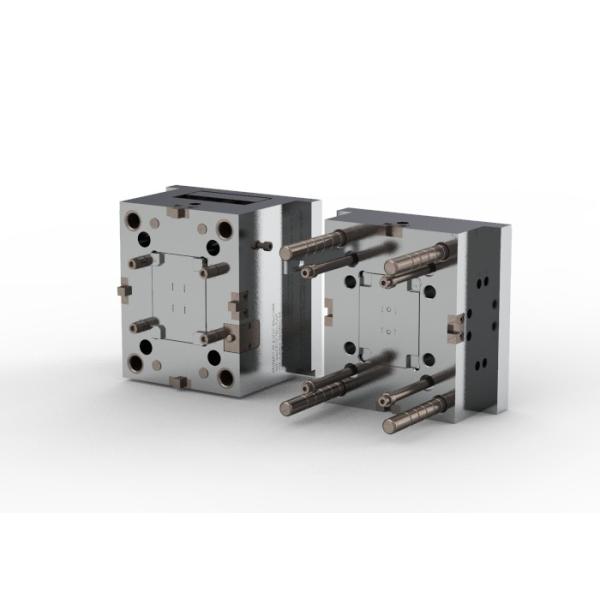

Transparent Instrument PN-2044 (1*4)
No.21072
[Mold base]:Standard mold base CI2025.507070 | |||||
| [Standard]: LKM | [Mold weight]: 102 kg | ||||
| [IMM tonnage]: 100T | |||||
| [Gate]: Cashew gate, suitable for TPEE with good toughness; self-degating | |||||
| [Injection/Runner Type]: Cold Runner |
| [Type]: Two-plates mold, with simple structure, easy operation, can meet the requirements of automatic demolding. Minimized failures, long tool life, short cycle time and low cost. | |||||
| [Part material]: TPEE | |||||
| [Part weight]: 0.01g | |||||
| [Part size]: 1.64 X 10.37 X 2.65mm |
| [Steel of cavity]: Harden (1*4/S136) | [Steel of core]: Harden (1*4/S136) | [Surface finish]: Polished to SPI-B1 | |||
Polish and harden the mold to improve hardness, anti-wearing and anti-corrosion performance; the tool life is up to 500k shots | |||||
Display diagram
|
