OEM / ODM ： Hot Runner Injection Molding & Crystal Right Belt (1*2) No.23187

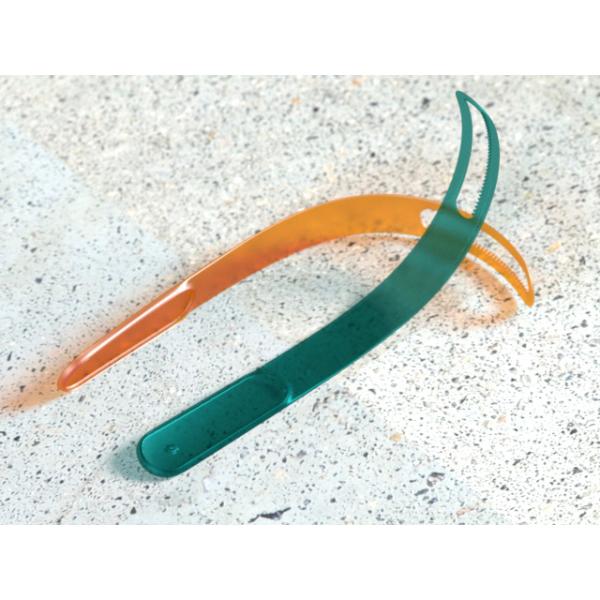

Crystal Right Belt (1*2)

No.23187

The mold is designed with cold runner and cashew gate, with a size of 550 X 650 X 551mm;

other surfaces with MT11010 etch; harden cavity and core (1*2/S136)

The surface is hardened to have a hardness > 600HV, with smooth molding actions.

The mold net weight is 1188kg, the IMM tonnage is 280T, the part net weight is 25.5g,

and the part size is 31 X 344 X 6.35 mm.

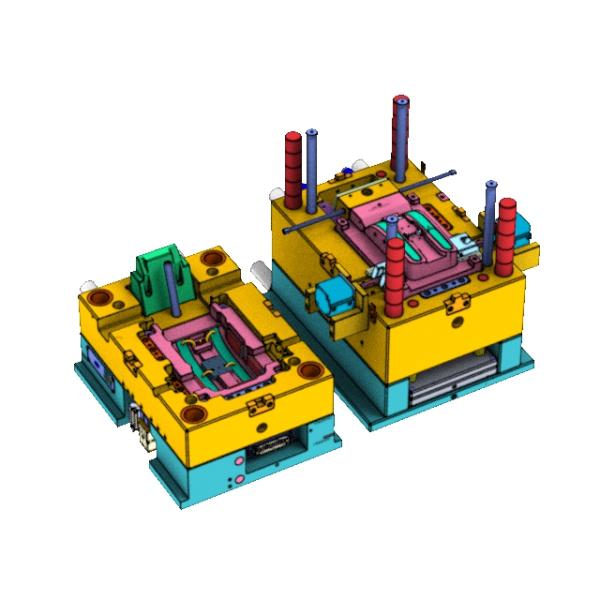

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
