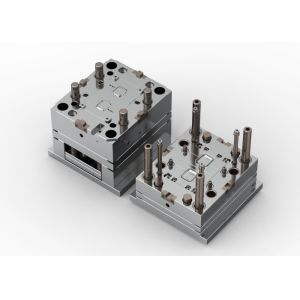

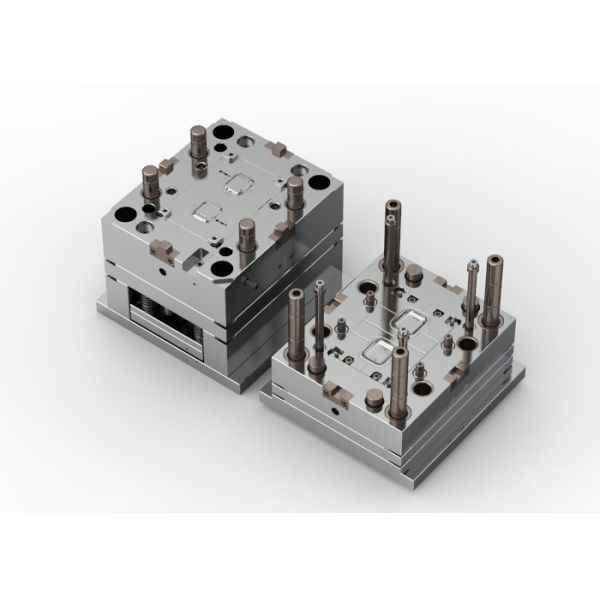

Smartwatch Back Housing / Cold runner / Three-plates mold No.22399

Smartwatch Back Housing

No.22399

Custom mold base DDI2530 1 set A = 60 B = 90 C = 80, sub gate,

the pin point gate turns to the side gate, LKM standard

The surface EDM with Charmilles VDI24#, the waterproof surface polished to 1000# sandpaper;

harden the cavity and core to have higher hardness and anti-wearing performance;

the advanced machining technology makes the mold good fitted and the tool life is

up to 500k shots

IMM tonnage: 80T

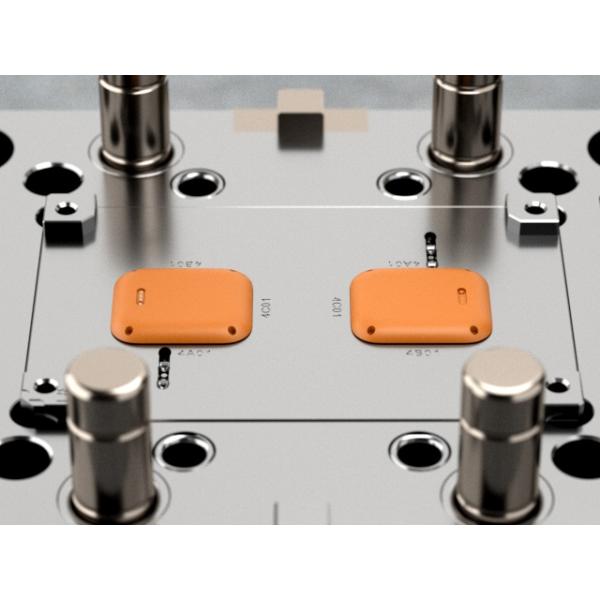

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
