Front Housing / Cold runner / Three-plates mold No.22398

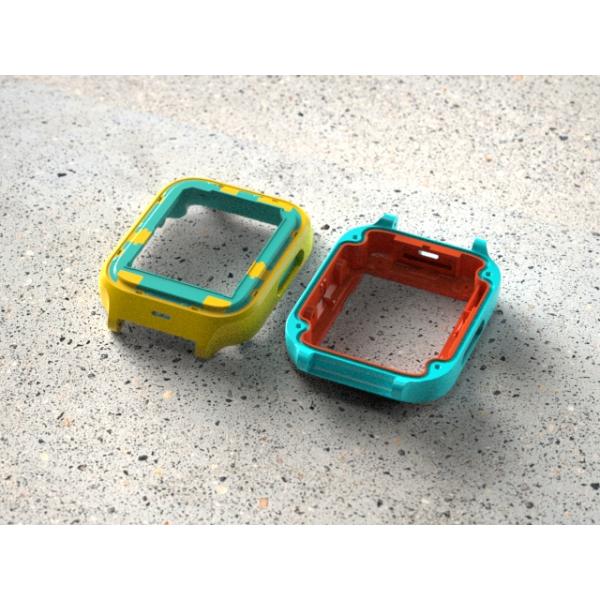

Front Housing

No.22398

The mold adopts standard mold base P/N DAI3040.60100100.

Gate: side gate (the pin-point gate turns to the side gate)

Injection/Runner Type: Cold runner

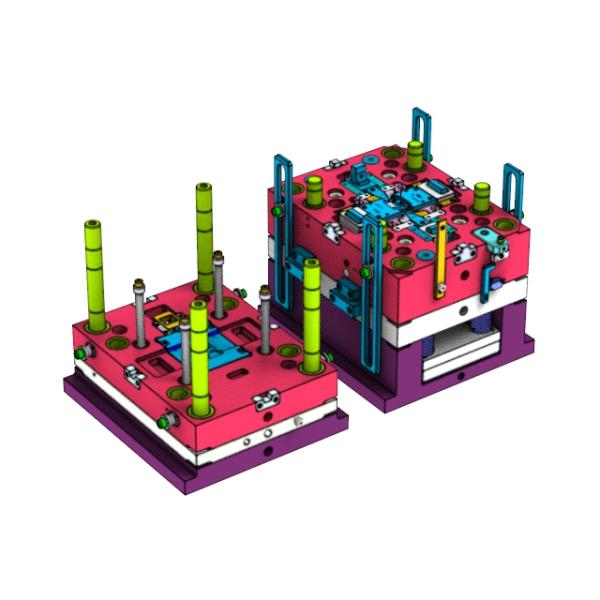

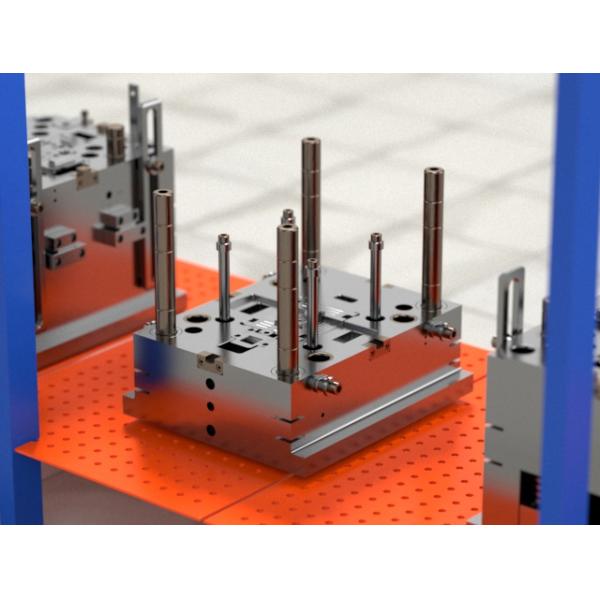

This is a three-plates mold developed (designed) by Chitwing, with 4 large slides and 2

inner slides, high-precision industrial processing, higher anti-wearing performance and

good fitted; with 500k shots life, LKM standard, smooth surface and minimized gate

marks

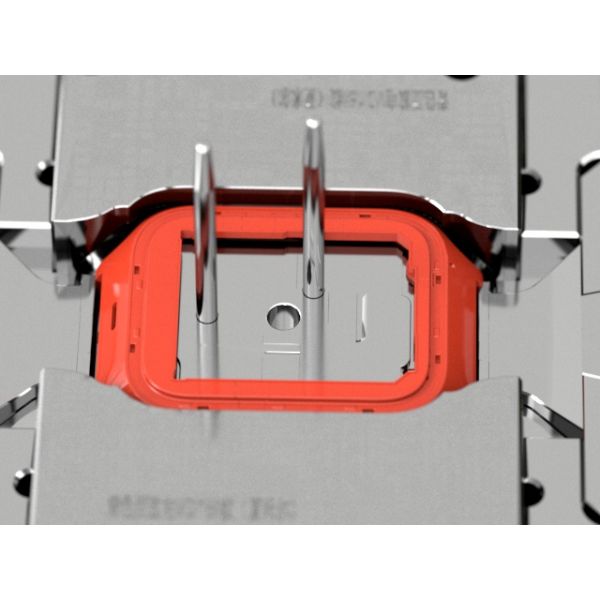

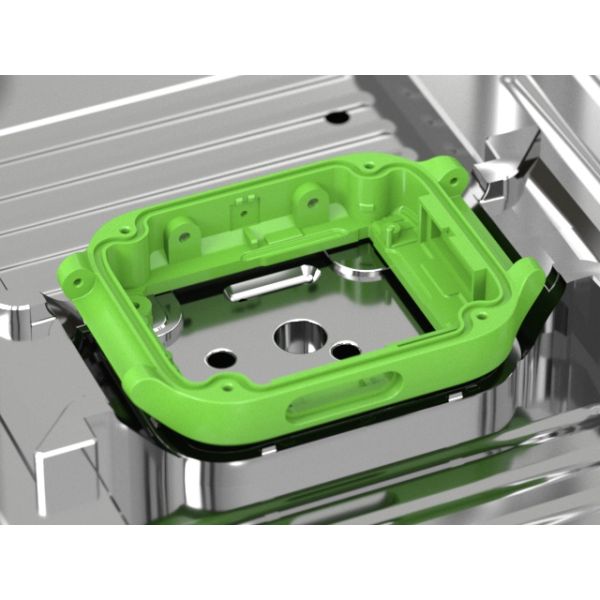

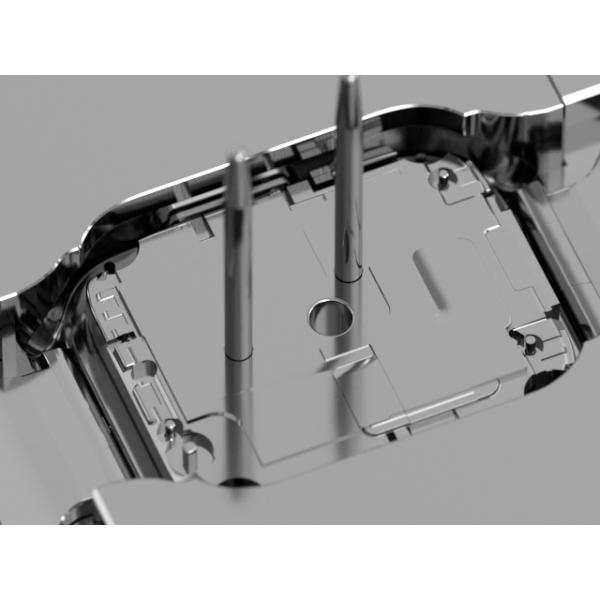

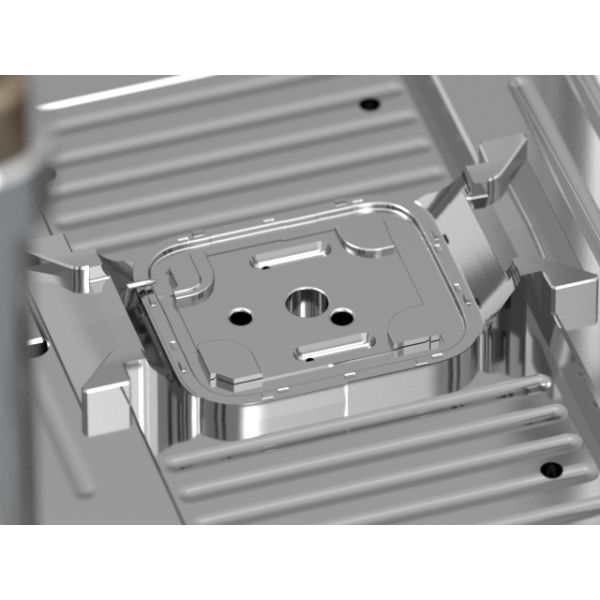

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
