| Categories | Double Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | E -cigarettes |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 400 X 660 X 545mm |
| IMM Tonnage: | 250（T） |
| Mold Weight: | 505（KG） |
| Part material: | PC+ABS |
| Standard: | LKM |
| Type: | Three-plates mold |
| Gate: | Pin point gate |
| Design software: | (3D)UG 4.0/ (2D）CAD |

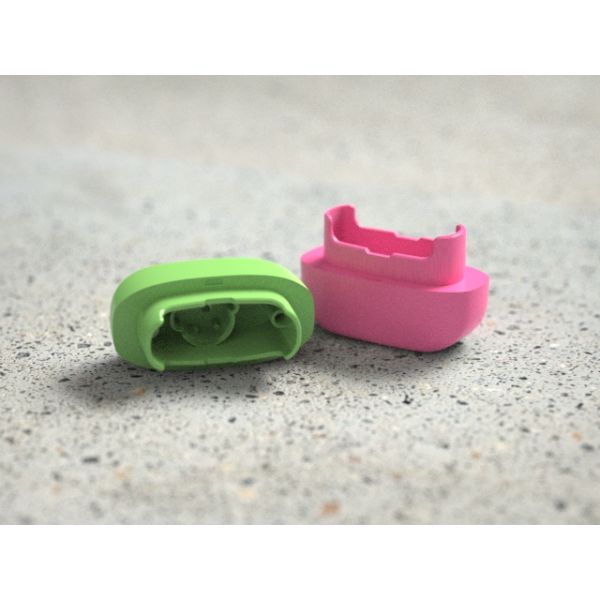

Housing Base (1*16)
No.24309 & 24310
| Mold information | Standard mold base P/N: CI4050.A60 B60 C100 | Net weight | ||||||
| Brand | Chitwing | Length | 400 | Width | 660 | Height | 545 | 505KG |
Origin: Guangdong, China
Injection/runner type: Hot runner
Features: 2k mold
| Surface finish | |||||
| Second-color A surface polished to SPI-A2 | First-color A surface EDM with VDI 15# | ||||
| Cavity | Harden (1*2/S136) | Core | Harden (1*2/S136) | ||
| The fully processing by Chitwing has greatly improved the anti-wearing performance, anti-seizure and anti-fracture performance. The mold good fitted with a very high part quality | |||||||
| Gate | Type | Part material | Standard |
| Pin point gate | Three-plates mold | PC+ABS | LKM |
IMM tonnage: 250T
Part weight: 1g+1.1g
Size: 12.13 * 15.54 * 25.44mm
Display diagram
|
