For Komatsu Excavator Parts 706-7K-01081 PC450-7 Swing Device PC360-7 Swing Motor
How does excavator swing brake work?
The swing brake is a multi-disc and plate assembly loed in the
first stage planetary gear assembly. It is spring applied and
hydraulically released. The brake is designed as a parking brake
only and is not intended to be used as a cyclic service brake. The
discs and plates are lubried by the release signal oil.

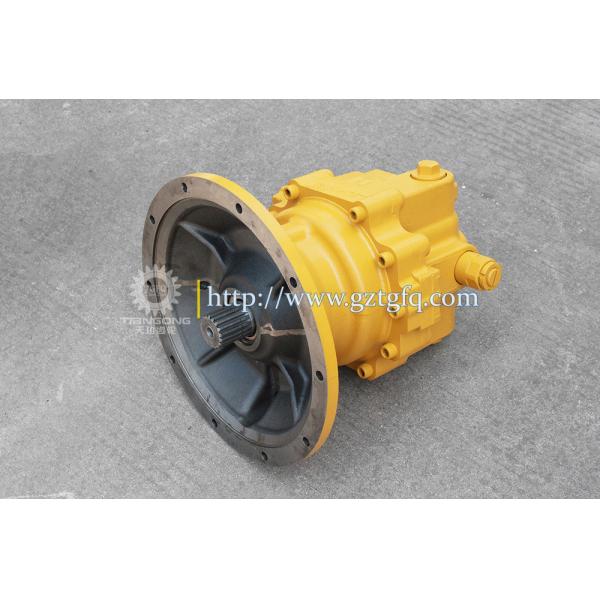

PC360-7 Picture Of Swing Motor







Drawing Of Swing Motor

| Pos. | Part No | Qty | Parts name | Comments |
| 706-7K-01081 | [1] | SWING MOTOR Komatsu | 105 kg. | |
| ["SN: 52194-UP"] analogs:["7067K01080"] |$2. | ||||
| 706-7K-01080 | [-1] | SWING MOTOR ASSY Komatsu | 105 kg. | |
| ["SN: 50001-52193"] analogs:["7067K01081"] |$3. | ||||
| 706-7K-03061 | [1] | MOTOR SUB ASSY Komatsu China | ||
| ["SN: 52194-UP"] |$5. | ||||
| 706-7K-03060 | [1] | MOTOR SUB ASSY Komatsu China | ||
| ["SN: 50001-52193"] |$6. | ||||
| 1 | 706-7K-41150 | [1] | CASE,MOTOR Komatsu | 32 kg. |
| ["SN: 50001-UP"] analogs:["7067K41151"] | ||||
| 2 | 706-7K-71110 | [1] | HOUSING Komatsu | 37 kg. |
| ["SN: 50001-UP"] | ||||
| 3 | 706-7K-40010 | [1] | BEARING Komatsu | 0.15 kg. |
| ["SN: 50001-UP"] | ||||
| 4 | 706-75-42830 | [1] | PIN,DOWEL Komatsu | 0.02 kg. |
| ["SN: 50001-UP"] | ||||
| 5 | 706-77-72280 | [1] | PLUG Komatsu | 0.08 kg. |
| ["SN: 50001-UP"] | ||||
| 6 | 07002-52034 | [1] | O-RING Komatsu | 0.03 kg. |
| ["SN: 50001-UP"] analogs:["0700242034"] | ||||
| 7 | 709-74-92810 | [2] | VALVE Komatsu | 0.063 kg. |
| ["SN: 50001-UP"] | ||||
| 8 | 709-75-92220 | [2] | SPRING Komatsu | 0.001 kg. |
| ["SN: 50001-UP"] | ||||
| 9 | 709-74-92821 | [2] | PLUG Komatsu | 0.4 kg. |
| ["SN: 50001-UP"] | ||||
| 10 | 723-46-41820 | [2] | O-RING Komatsu | 0.006 kg. |
| ["SN: 50001-UP"] | ||||
| 11 | 700-93-11330 | [2] | RING,BACK-UP Komatsu | 0.01 kg. |
| ["SN: 50001-UP"] | ||||
| 12 | 706-77-72130 | [2] | VALVE Komatsu | 0.31 kg. |
| ["SN: 50001-UP"] | ||||
| 13 | 706-77-72140 | [2] | SPRING Komatsu | 0.02 kg. |
| ["SN: 50001-UP"] | ||||
| 14 | 706-77-72150 | [2] | PLUG Komatsu | 0.52 kg. |
| ["SN: 50001-UP"] | ||||
| 15 | 07002-54234 | [2] | O-RING Komatsu | 0.04 kg. |
| ["SN: 50001-UP"] analogs:["0700244234"] | ||||
| 16 | 706-7K-40030 | [1] | O-RING Komatsu | 0.000 kg. |
| ["SN: 50001-UP"] | ||||
| 17 | 01252-61450 | [10] | BOLT Komatsu | 0.087 kg. |
| ["SN: 50001-UP"] analogs:["7051703370"] | ||||



OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.


FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
