WD 30mm~∞ 5MP 8mm Fixed Focal Length Lenses F2.8~F16 0.12kg

Categories	Fixed Focal Length Lenses
Brand Name:	OPT
Model Number:	OPT-C0828-5M
Place of Origin:	China
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	Negotiable
Delivery Time:	7 work days at the soonest
Packaging Details:	Craft Box
Focal Length:	8mm
Aperture:	F2.8~F16
Working Distance(mm):	30~∞
Distortion:	<0.81%
Sensor format:	1/3″ \| 1/2.5″ \| 1/1.8″ \| 2/3″
Back focal length (mm):	13.06mm
Filter thread (mm):	M30.5*P0.5
Weight (kg):	0.12kg

Contact Now

Add to Cart

Company Info.

OPT Machine Vision Tech Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

WD 30mm~∞ 5MP 8mm Fixed Focal Length Lenses F2.8~F16 0.12kg

5MP Fixed Focal Length Lenses F2.8~F16 WD 30-∞ Focal Length 8mm 0.12kg OPT-C0828-5M

Product Features

◆ The F/# aperture is F2.8~F16.

◆ High resolution: compatible with 5MP industrial cameras of ≥ 3.45μm pixel size and max. 2/3" sensor; up to 140 lp/mm full FOV resolution.(OPT-C0420-5M/OPT-C0620-5M: Compatible with 3MP cameras of max. 1/2" sensor)

◆ Low distortion: total distortion < 0.7%, min. distortion as low as 0.02%(OPT-C0420-5M & OPT-C0620-5M are not included.).

◆ The OPT-C0828-5M working distance is 30mm-∞.

◆ Filter thread is M30.5*P0.5.

◆ OPT-C0828-5M fixed focal length lenses focal length is 8mm.

◆ Back focal length (mm): back focal length is 13.06mm.

◆ Weight of OPT-C0828-5M fixed focal length lens is 0.12kg.

◆ The sensor format of OPT-C0828-5M is 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.

◆ The distortion is less than 0.81%.

◆ FOV angle (H×V×D) is 32.5° | 39.2° | 48.2° | 57.6°, 25.4° | 29.8° | 37.3° | 49.3°, 40.4° | 48.0° | 58.5° | 71.2°.

Model Explanation

OPT-C0828-5M

OPT: Brand name

C: C-Mount

08: Focal length: 8mm

28: F#: 2.8

5M: 5M pixel

Specifications

Product Name	5MP Fixed Focal Length Lenses
Model	OPT-C0828-5M
Focal Length	8mm
Aperture range	F2.8~F16
Working Distance(mm)	30-∞
Filter thread(mm)	M30.5*P0.5
Distortion(%)	Less than 0.81%
Back focal length (mm)	13.06mm
Weight(kg)	0.12kg
Sensor format	1/3″ \| 1/2.5″ \| 1/1.8″ \| 2/3″
FOV angle (H×V×D)	32.5° \| 39.2° \| 48.2° \| 57.6° 25.4° \| 29.8° \| 37.3° \| 49.3° 40.4° \| 48.0° \| 58.5° \| 71.2°

Resolution Comparison

Image taken via 5MP Fixed Focal Length Lens Image taken via other lens

Application Examples:

Lens surface inspection

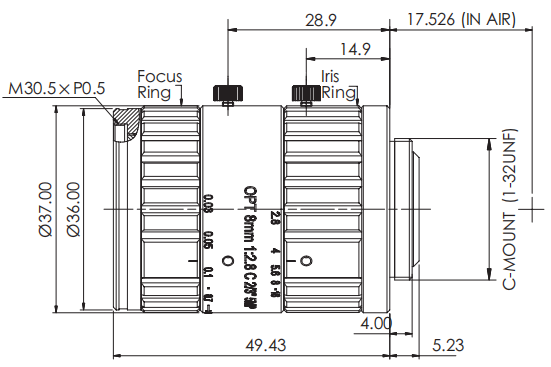

Dimensions (mm)

OPT-C0828-5M
