| Categories | Switch Power Supply |
|---|---|
| Place of Origin: | Guangdong, China |
| Model Number: | S-60-12 |
| Certification: | CE |
| Packaging Details: | 30pcs/box |
| Price: | Negotiation |
| MOQ: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-10days |
| Output Power: | 60W |
| Input Voltage: | AC100V-240V |
| Output Voltage: | 12V |
| Output Frequency: | 50-60Hz |
| Output Current: | 5A |

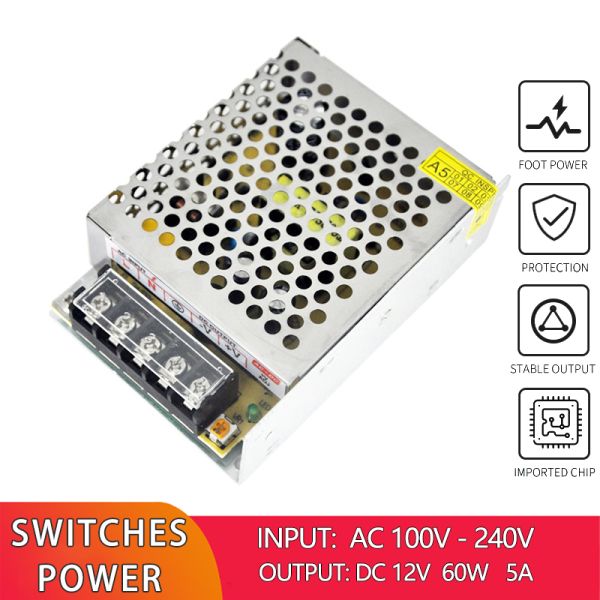

| Product Name: | Chassis Switching Power Supply |
| Type: | AC DC Power Module Converter |
| Weight: | 185g |
| Size: | L110*W78*H35(mm) |
| Protections: | Short Circuit Overtemp Overload Overvolt |
| Company Info. |
| ShenZhen Million-tech Co., Ltd. |
| View Contact Details |
| Product List |

Model | S-60-12 |
AC input voltage range(V) | AC 100V-240V |
Input current(A) | 2A/115VAC;1A/230VAC |
Frequency (Hz) | 50/60Hz |
Efficiency | 86%(230VACFull Load) |
Inrush current(A) | cold start 20A/115V AC 40A/230VAC |
Leakage current(mA) | <3.5mA/240VAC |
Output Voltage(V) | +12VDC |
Voltage Regulation | ±10% |
Output Current(A) | 5A |
Current Range (A) | 0-5A |
Rated Power(W) | 60W |
Start time, hold-up time(ms) | 300ms/230VAC 800ms,/115VAC at full load |
Rise time(ms) | 50ms at Full Load |
Ripple/Noise(MVP-p) | 120mVp-p |
working Temperature (°C) | -10 centidegree to+60 centidegree |
Storage Temperature(°C) | -20 centidegree to+85 centidegree |
Humidity | 20% to90%RH non condensing |
Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% Auto recovery |
Short circuit Protection | Latched |

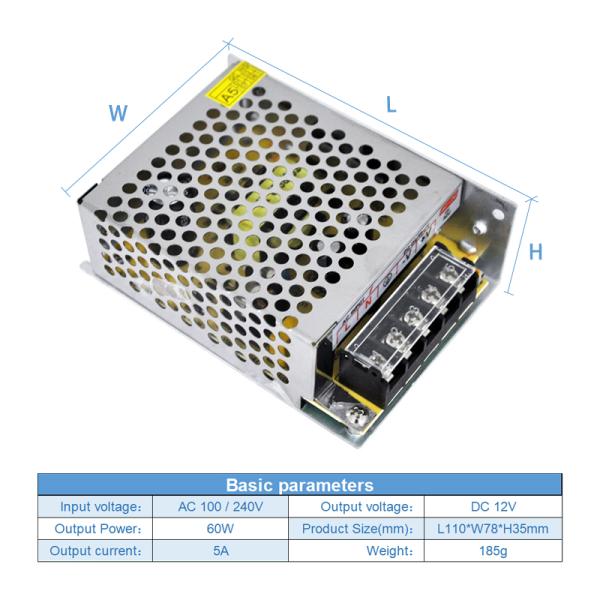

Size L*W*H(mm) | 110*78*35 |
Weight | 185g |




item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Megbox |
Model Number | S-60-12 |
Output Power | 60W |
Output Type | Single |
Input Voltage | AC100V-240V |
Output Voltage | 12V |
Output Frequency | 50-60Hz |
Output Current | 5A |
Product Name | Chassis Switching Power Supply |
Application | LED Lighting |
Warranty | 2 Years |
Certification | CE |
Type | AC DC Power Module Converter |
Efficiency | 86% |
Weight | 185g |
Size | L110*W78*H35(mm) |
Protection | OCP OVP SCP OPP |
Protections | Short Circuit Overtemp Overload Overvolt |
|
