| Categories | Electric Wire Rope Winch |
|---|---|
| Brand Name: | JCYC |
| Model Number: | KDJ |
| Certification: | CE&ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD negotiate per unit |
| Payment Terms: | L/C, T/T, Western Union, D/P, D/A, MoneyGram |
| Supply Ability: | 500 pcs per month |
| Delivery Time: | 10 -15 working days |
| Packaging Details: | Plywood case |
| Product name: | 3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity |
| Lifting Weight: | 200kg to 10000kg |
| Rope length: | 0-100m or at request |
| Motor: | 4pol 6pol |
| Power supply: | 3 phase 220V/380V/415V/440V/480V 50/60HZ |
| Max. Cap: | 10000 kg |
| Company Info. |
| Chongqing Shanyan Crane Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

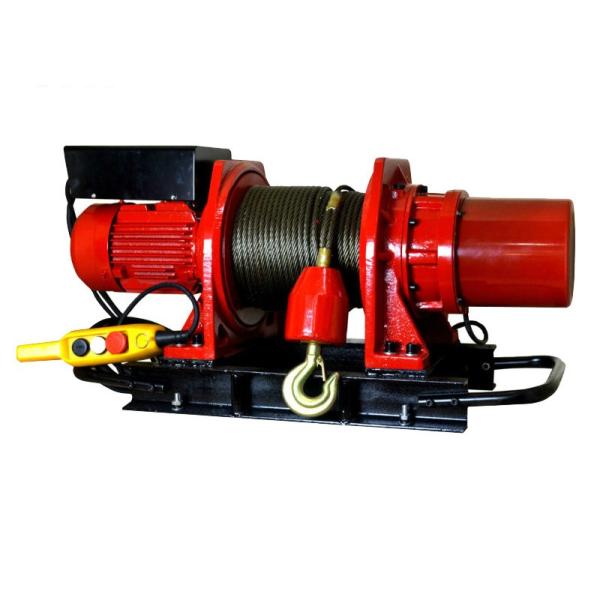

3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity
Product parameters
| Model | Load rated (kg) | Speed M/min | Motor hpxp | Voltage | Lifting | Wire Rope | G/ N.W. | Packing size |
| Freq. | Height | φmmxm | (KG) | cm | ||||
| (M) | ||||||||
| KDJ-200E | 200 | 10-15 | 0.8x4 | 110-240v 1ph 50/6hz | 29 | 6x30 | 36.5//35.2 | 58×33×31 |
| 12-18 | ||||||||
| KDJ-250E | 250 | 10-15 | 1.0x4 | 29 | 6x30 | 41/39.5 | 61×33×32 | |
| 12-18 | ||||||||
| KDJ-300E | 300 | 10-15 | 1.5x4 | 29 | 7x30 | 47/45.5 | 64×33×32 | |
| 12-18 | ||||||||
| KDJ-300E1 | 300 | 10-15 | 1.5x4 | 220-440v 3 ph 50/60hz | 29 | 7x30 | 50/48 | 64×33×32 |
| 12-18 | ||||||||
| KDJ-500E1 | 500 | 12-18 | 2.5x4 | 58 | 9x60 | 156/139 | 104×51×62 | |
| KDJ-750E1 | 750 | 12-18 | 3.5x4 | 58 | 9x60 | 167/150 | 104×51×62 | |
| KDJ-1000E1 | 1000 | 12-18 | 5x4 | 11x60 | 178/161 | 104×51×62 | ||
| KDJ-2200E1 | 2200 | 7-12.5 | 7.5x4 | 97 | 16x100 | 500/450 | 156×70×81 | |
| KDJ-3200E1 | 3200 | 6.3-8.8 | 7.5x6 | 97 | 18x100 | 550/500 | 156×70×81 | |
| KDJ-3500E1 | 3500 | 6.3-8.8 | 10x4 | 140 | 18 x143 | 600/550 | 156×70×81 | |
| KDJ-5000E1 | 5000 | 8.0-12 | 15x4 | 192 | 22.4 x200 | 2700/2580 | 210×120×135 | |
| KDJ-10000E1 | 10000 | 7-11 | 30x4 | 235 | 32 x 250 | 3200/3080 | 230×120×135 |
| FEATURES | |
| Wire Rope Fixing: | No escape of wire rope from the drum by means of P.T. screwdevice. |
| Drum Transmission: | The shaft direct driving drum provides rope replacement and alternation of rotation with easy. |
| Electromagnetic: | Designed for both static and dynamic loading. Brake will auromatically apply in the event of power cut. Large friction surfacr area. No adjustments or serving requirement. |
| Gear Box: | Provides strengh, durability an non-worry of breakage of structure. |
| Induction Motor: | IEC induction motor mounted provides reallity availability, cost effective and service spares availability world wide. |
| Ball Bearings: | High efficient and heavy duty bearings provide long life. |
| Planetary and Anti-wear Gears: | Compact, load sharing minimizes size, weight, and cost. Full depth spur gear planetary reductions ensure quiet and long life. |
| Machine Fixture: | It is made of super armor plate, used for suspender, lifter and girder. |

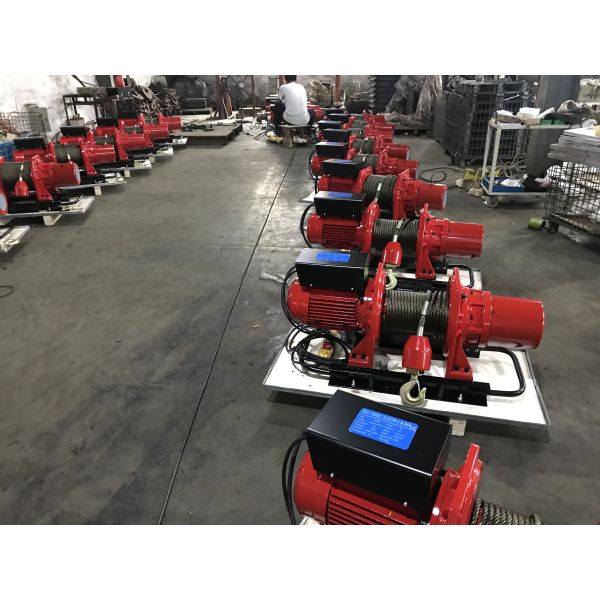

Facotry show
Questions before make quotation:
The more information you provide, the accurate solution we can
prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?
|
