Industrial Ceramic Parts Zirconia Ceramic With Shaft Rod / Plunger Rod Threaded

Categories	Industrial Ceramic Parts
Brand Name:	Mingrui
Model Number:	Customized
Certification:	ISO9001-2015,,UL
Place of Origin:	China
MOQ:	2 pieces
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability:	5000 pieces two weweks
Delivery Time:	15 working days after the order confirmed
Packaging Details:	By carton or pack according to your requirements
function:	Insulating ceramic
material:	Zirconia ceramic
Delivery:	15 days
Precision:	+- 0.001mm
Type:	Ceramic Rollers
Color:	Ivory
Thermal Conductivity:	3 W/m.k
Size:	As your drawings
Fracture Toughness:	7-10 MPa.m(1/2)
Compressive Strength:	2000 - 2500 Mpa

Contact Now

Add to Cart

Company Info.

Dongguan Ming Rui Ceramic Technology Co.,ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

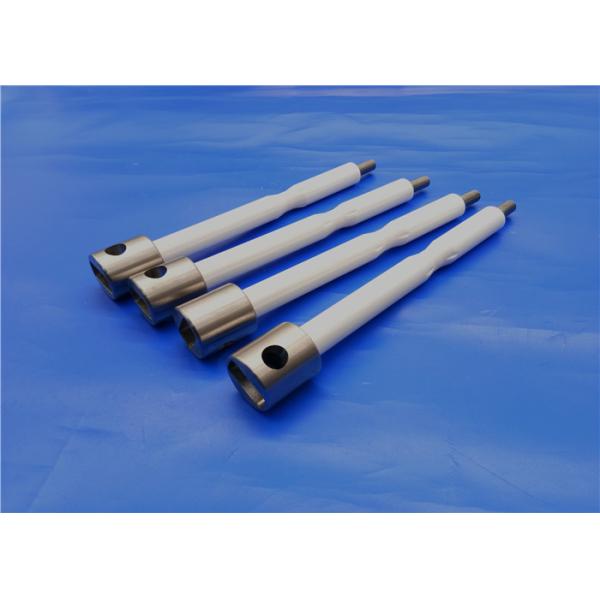

Industrial Ceramic Parts Zirconia Ceramic With Shaft Rod / Plunger Rod Threaded

High Hardness Zirconia Ceramic With Stainless Steel /Shaft Rod/Plunger Rod Threaded

Feature:

1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Good wear resistance
7) Mechanical strength

8). factory
9). Best price, good quantity

10). Short delivery time
11). long working life

ADVANTAGES

Electrical insulation
High dimensional tolerances
Chemical corrosion resistance
High temperature resistance
Very good thermal shock properties

Ceramic parts we can produce:

Alumina ceramic, Zirconia ceramic , Ceramic Dowel pin, Zirconia Positioning pin, Insulating ceramic plate

Ceramic adapter plate,Ceramic centering pin,Ceramic connectors,Ceramic spinner,Ceramic roller

Ceramic blade,Ceramic brackets,Ceramic disc,Ceramic insulator,Ceramic rod,ceramic atomizer

ceramic fuse pin,ceramic nozzle,ceramic ferrule,ceramic necklace,ceramic ornament,alumina ceramic plate, ceramic cylinder, ceramic guide, ceramic pin, ceramic bushing, ceramic brick,ceramic injection molding,ceramic bushings,ceramic smoking pipe, ceramic spacer,ceramic piston pump,ceramic part

ceramic heating element vaporizer e cigarette, al2o3 ceramic, ceramic donut atomizer, alumina ceramic disc, alumina ceramic sheet , ceramic alumina , ceramic pressure sensor , ceramic sheet,

ceramic washer, zirconia ceramic plate, ceramic insert, white ceramic ring, ceramic shaft

ceramic pump, ceramic piston, ceramic nail, ceramic insulators, ceramic rod 3mm , ceramic dowel pin

ceramic pin gage , alumina ceramic parts , ceramic burr , ceramic proppant , ceramic needle

ceramic grinder, alumina ceramic rod , alumina ceramic ring, ceramic conical burr , ceramic heater rod

ceramic gear , machinable ceramic, ceramic arms , white ceramic ornaments , sustained high temperature on ceramics

Properties of Alumina and Zirconia Ceramic :

Properties	Units	95 Alumina	99 Alumina	ZrO2
Density	g / cm³	3.65	3.92	5.95-6.0g/cm³
Water absorption	%	0	0	0
Coefficient of thermal expansion	10^-6/K	7.9	8.5	10.5
Modulus of Elasticity Young's Mod	GPa	280	340	210
Poisson's ratio	/	0.21	0.22	0.3
HV Hardness HV	MPa	1400	1650	1300-1365
Flexural Strength @ room temperature	MPa	280	310	950
Flexural Strength @700°C	MPa	220	230	210
Compressive Strength @ room temperature	MPa	2000	2200	2000
Fracture Toughness	MPa *m ^1/2	3.8	4.2	10
Heat conductivity @ room temperature	W/ m*k	18-25	26-30	2-2.2
Electrical Resistivity @ room temperature	Ω*mm² /m	>10¹⁵	>10¹⁶	>10¹⁵
Max use temperature	°C	1500	1750	1050
Resistance to acid alkaline	/	high	high	high
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV/mm	16	22	/
Thermol Shock Resistance	△ T ( °C )	220	180-200	280-350
Tensile Strength @ 25 °C	MPa	200	248	252

Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.
