| Categories | Zirconia Ceramic Parts |
|---|---|
| Brand Name: | OEM |
| Model Number: | 0005 |
| Certification: | SGS ROHS TUV |
| Place of Origin: | CHINA |
| MOQ: | 2pcs |
| Price: | USD0.5-20/PCS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000PCS/Month |
| Delivery Time: | 20-30 days |
| Packaging Details: | Normal box |
| Dimension: | Customized |
| Colors: | White |
| Material: | Zirconia |
| MOQ: | 1-2pcs |

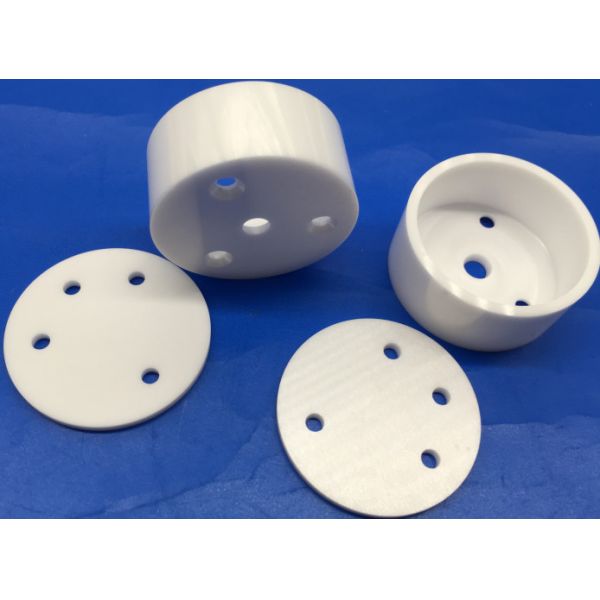

customized precision industrial ceramic injection molding machined zirconia ceramic parts
We can offer the products base on customer's drawing, sample and other reference parameter
1) A variety of specifications available.
2) Satisfy various technical request
3) High quality be sure
4) Good insulation performance and high temperature resistance
5) Bending strength and compressive strength resistance
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
| Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc. | ||||
| Material | Unit | Steatite ceramics | 95% alumina ceramics | 99.5% alumina ceramics |
| Density | G/cm3 | 2.7 | 3.7 | 3.9 |
| Highest application temperature | °C | 1100 | 1500 | 1750 |
| Bending strength | Mpa | 150 | 300 | 340 |
| Compressive strength | Mpa | 900 | 3400 | 3600 |
| Hardness | HV0.5 | 800 | 1800 | 2000 |
| Insulation breakdown strength | KV/mm | 10 | 15 | 18 |
| Processing technology | ||||
| Process range (mm) | ||||
| Outside Diameter | 1---300 | |||
| Inside Diameter | 0.5---300 | |||
| Length | 0.5---1200 | |||
| Accuracy of working (mm) | ||||
| Perpendicularity | 0.01 | |||
| Concentricity | 0.01 | |||
| Roundness | 0.005 | |||
| Straightness | 0.005 | |||
| Parallelism | 0.01 | |||
| Planeness | 0.005 | |||
| Roughness | 0.05 | |||
| Fit clearance | 0.005 | |||
Product show
The related products
Factory Introduction
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Machine
Package and shipping
Insulators will be packed in a bubble bag individually, then
separated by a foam, finally put in standard export carton packing,
or OEM packing.
Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea
transportation.
Welcome to contact for the quotation, 2D/3D drawing will be perfect
!
|
