| Categories | Ustc Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 10kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | 2USTC155/180 Litz wire super thin enameled nylon served copper litz wire |
| Diameter: | 0.071mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | 2USTC155/180 Litz wire super thin enameled nylon served copper litz wire |
| No. of strands: | 84 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

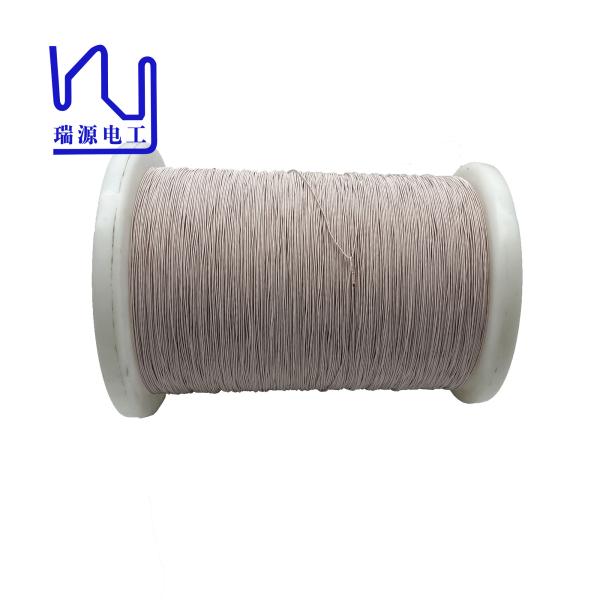

2USTC155/180 Litz wire super thin enameled nylon served copper litz wire
Silk covered copper litz wire is a very important material in the wire cable industry. The Silk covered copper litz wire is made of high-quality enameled copper wire, and the litz wire is wrapped with insulating materials such as nylon, polyester, natural silk yarn, so that it has good electrical conductivity and insulation. This kind of copper stranded wire is often used to make coils of electrical equipment such as transformers and motors, and can also be used to make industrial equipment and instruments.
2USTC155/180 Litz wire super thin enameled nylon served copper litz wire | |||
Item | Technical requirement(mm) | Sample 1 | Sample 2 |
Outer diameter | 0.077-0.084 | 0.078 | 0.081 |
Conductor diameter(mm) | 0.071±0.003 | 0.068 | 0.07 |
Pitch(mm) | 29±5 | √ | √ |
Conductor Resistance(Ω/km at 20℃) | Max. 0.05940 | 0.0541 | 0.0540 |
Breakdow Voltage(v) | Min.950 | 3400 | 3000 |
Key word | 2USTC155/180 Litz wire super thin enameled nylon served copper litz wire | ||
|
