Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

Categories Bracket Cooling Fan
Place of Origin: Guangdong, China
Brand Name: Aidecoolr
Model Number: CC12025(frameless) Ver. B
Packaging Details: Bulk packaging
Supply Ability: 3000000 Piece/Pieces per Month
MOQ: 500
Price: $1.90/pieces 1000-2999 pieces
Type: Axial Flow Fan
Applicable Industries: Other, Home appliance
Customized support: OEM, ODM
Electric Current Type: DC
Mounting: mounting by screws
Blade Material: Plastic
Voltage: 12V/18V/24V
Warranty: 1 Year
After-sales Service Provided: Free spare parts
Bearing Type: Sleeve or 2-Ball
size: 110mmx23mm
Noise level: 27-35dBA
Port: shenzhen,Hongkong
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

Aidecoolr 12025 bladeless fan ,size D 110x23mm frameless fan

Based on the information provided by the link you shared, the product appears to be a bladeless frameless fan with dimensions of 120x25mm and a thickness of 23mm.


The bladeless design can help reduce noise and increase airflow efficiency, making it ideal for use in applications where noise can be an issue. The product is made from durable materials and is designed to be compact and easy to install.


Overall, if you are in need of a bladeless frameless fan for your cooling application to help improve its cooling performance or airflow, this product might be worth considering.

However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.


Parameters:


ModelBearing
Type
Fan TypeversionRated
Voltage
currentSpeedAir Flowstatic PressureNoise Level
vDcAmpRPMCFMMM-HOdBA
BF12025L12SSleeveFramelessB12V0.111,400±10%49.01.5027.0
BF12025L12D2-Bal
BF12025M12SSleeveFrameless-812v0.161,800±10%61.02.3031.0
BF12025M12D2-Ball
BF12025H12SSleeveFramelessB12V0.252,200±10%73.03.1035.0
BF12025H12D2-Bal
BF12025L18SSleeveFrameless-B18v0.081,400±10%49.01.5027.0
BF12025L18D2-Ball
BF12025M16SSleeveFramelessB0.101,800+10%31.0
BF12025M18D2-Ball
BF12025H18SSleeveFrameless-B18v0.1573.03.1035.0
BF12025H18D2-Ball

Parts Specs:

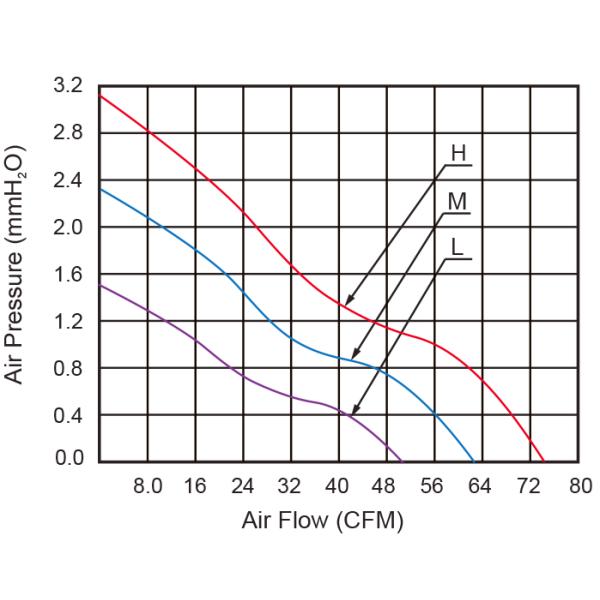

P&Q Curve

Bearing type:Sleeve,2-Ball

Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional

5V,12V,24V are available


Electrical Specifications:

Insulation Resistance10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating DirectionAnti-Clockwise
Polarity ProtectCircuit is protected when VCC&GND are exchanged
No. of pole4Poles

Environmental Specifications

Operating Temp RangeTemperature:-10℃~+70℃
Humidity:35%~85%RH
Store TemperatureTemperature:-40℃~+70℃
Humidity:35%~85%RH
Thermal ShockStandard:MIL-STD 202F Method 107D,Condition D
Insulation ShockUL:Class A


FCL ShipmentLCL Shipment

Air shipment:


FAQ

Lifetime:

Bearing typeLifetime
Sleeve30,000 hours
Hydraulic40,000 hours
2-Ball60,000 hours
