High-Performance F-Class Aramid Paper Electrical Insulation Tape

Categories Adhesive Insulation Tape
Model Number: 432/452/472
Place of Origin: China
MOQ: 500 SQ.M
Price: basing on size and quantity
Payment Terms: T/T
Supply Ability: 20000rolls
Delivery Time: about 30 days
Packaging Details: cartons
Material: Aramid paper
Adhesive: acrylic pressure-sensitive adhesive
Thickness: 0.105/0.13/0.18mm
Tensile Strength: ≥ 30/45/90 N/10mm
Adhesion Strength: ≥ 12.0N/25mm
Breakdown Voltage: ≥ 1.8/2.4/2.8kV
Long-term Temperature Resistance: F class/155℃
Usage: insulation wrapping
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

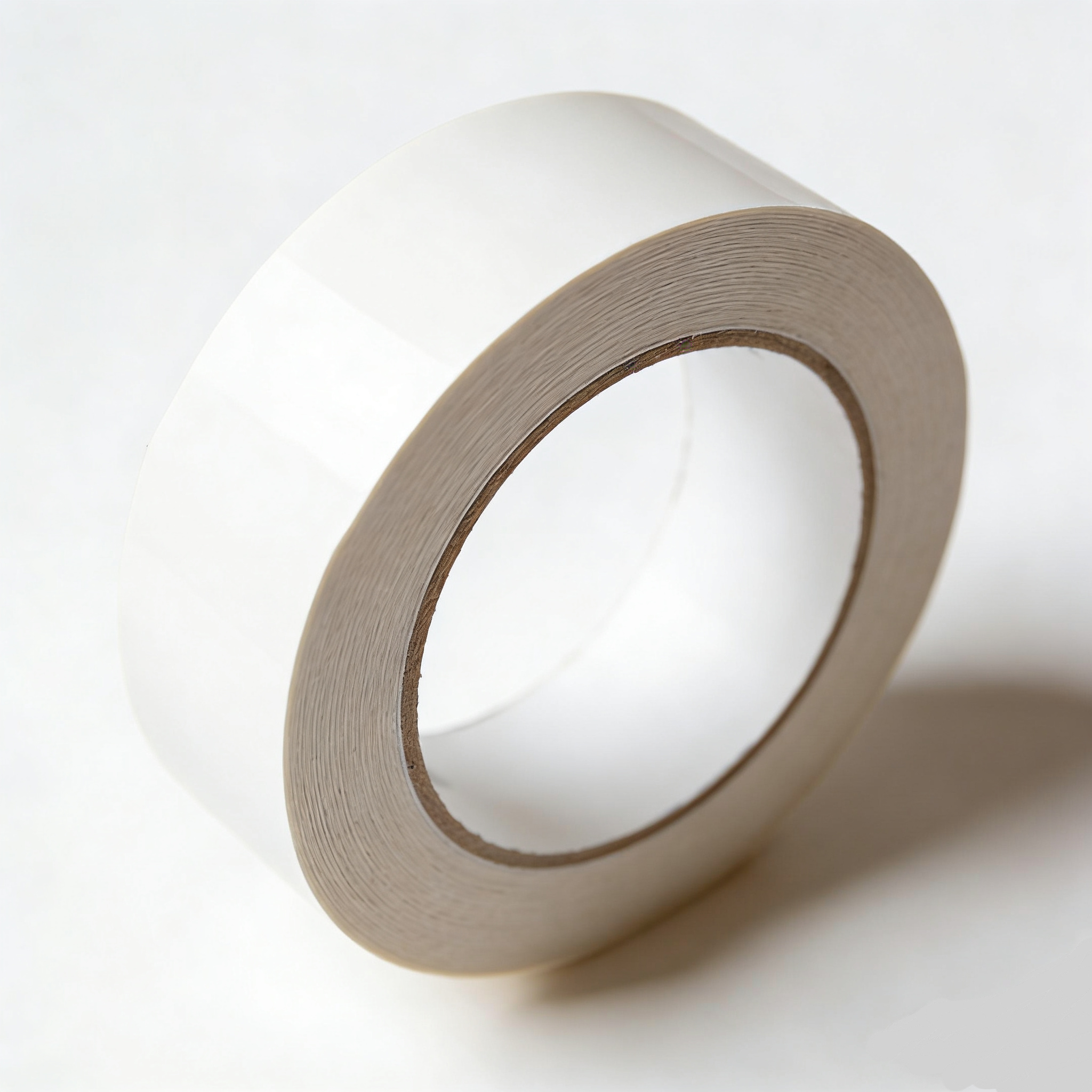

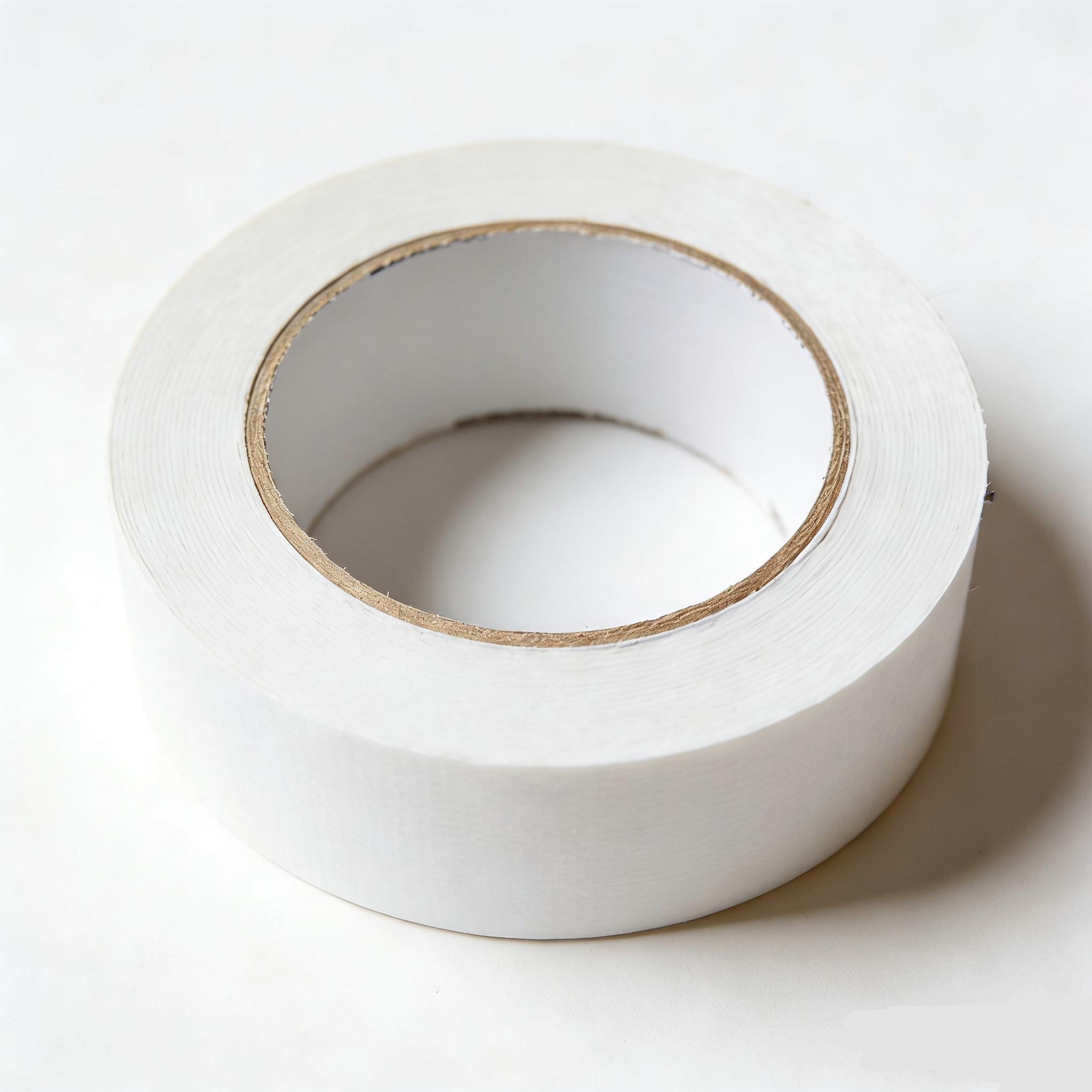

High-Performance F-Class Aramid Paper Electrical Insulation Tape

Product Description

The F-Class Insulation Aramid Paper Tape is made by combining aramid paper with a flame-retardant acrylic pressure-sensitive adhesive.

  • Material & Class: Aramid paper substrate, rated for F-class (155°C) heat resistance.
  • Key Properties: High dielectric strength and good tear resistance.
  • Safety Feature: Compliant with relevant flame-retardancy standards.
Technical Specifications
ParametersValue
Thickness0.105/0.13/0.18mm
Breakdown Voltage≥ 1.8/2.4/2.8kV
Tensile Strength≥ 30/45/90 N/10mm
Long-term Temperature ResistanceF class/155℃
Advantages
  • Performance & Safety: Delivers reliable F-class (155°C) heat resistance, high dielectric strength, and self-extinguishing flame retardancy that meets safety standards.
  • Material Durability: Resists tearing and withstands exposure to oils, solvents, and corrosive substances.
  • Environmental & Health: Halogen-free, non-toxic, and emits no harmful substances.
Applications
  • Motor & Transformer Insulation: Delivers reliable F-class protection for wrapping and securing coils in motors and transformers.
  • Battery & Component Shielding: Provides chemical-resistant insulation for lithium batteries and sensitive electronic assemblies.
  • High-Performance Transformer Wrapping: Specifically suited for demanding applications including HVT, HID, and other specialty electronic transformers.
