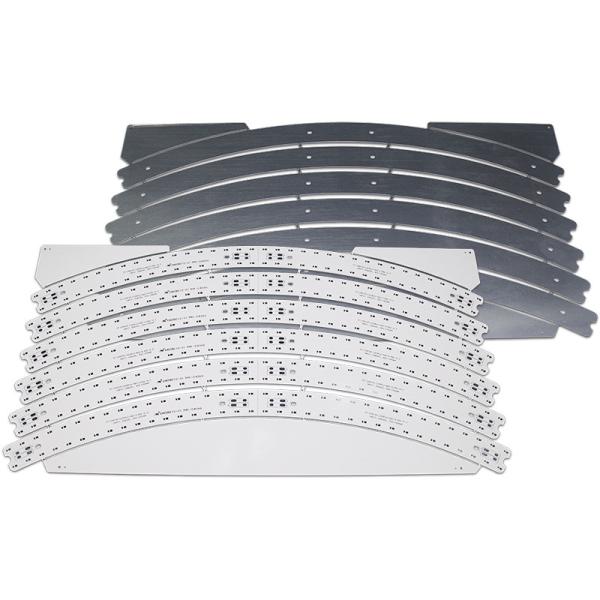

100W 120W 500W 1000W 3030 LED Grow Light Metal Core Printed Circuit Board
1. Introduction
As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.
2. Material: Aluminum-base PCB
| Item | Unit | Specification | Test condition | |
| Insulation thickness | um | Max Min | 200 60 | — |
| Solder resistance (288℃) | Sec. | Min | 600 | IPC-TM-650 2.4.13.1 |
| Thermal shock | 288℃10”/cycle | Min | 6 Times | IPC-TM-650 2.4.13.1 |
| Peel strength (Normal status) | lb/in | Min | 9 | IPC-TM-650 2.4.8 |
| Breakdown Voltage | V/mil | 750 | IPC-TM-650 2.5.6 | |
| Volume resistivity (Normal status＞E+14) | Ω · cm | 1.8*1015 | IPC-TM-650 2.5.17.1 | |
| Surface resistivity (Normal status＞E+12) | Ω | — | 3.5*1014 | IPC-TM-650 2.5.17.1 |
Dielectric constant 1 MHz Normal status 1 GHz Normal status | — | 5.6 5.3 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.6 | |
Dissipation constant 1 MHz Normal status 1 GHz Normal status | 0.013 0.010 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.9 | ||
| Water absorption | % | 0.2 | IPC-TM-650 2.6.2.1 | |
Thermal conductivity (measured on insulation layer only) | W/m℃ | 1.0 | ASTM-E1461 | |
| Flammability | 94V-0 | Pass | IPC-TM-650 2.3.9 | |
| Tg | ℃ | 100 | IPC-TM-650 2.4.24 | |
| Td | ℃ | 410 | TBD (5wt% loss) | |
| MOT (RTI) | ℃ | 130 | UL746B | |
| CTI (Comparative Tracking Index) | V | ＞600 (PLC=0) | UL746E DSR |
3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power
supply, Electronic control, Computer equipment, Communication
electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.
6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
7. Payment method:
T/T, Paypal, credit card, Western Union, etc.
The aluminum circuit board contains a thin layer of thermally
conductive dielectric material, which has the effect of
transferring heat.
An aluminum circuit board is also called aluminum base PCB,
flexible aluminum PCB, metal clad printed circuit board (MCPCB), an
insulated metal substrate (IMS or IMPCB), etc.
The aluminum circuit board is composed of a unique layered structure.
The printed circuitry is etched with a 1oz-10oz copper layer to assemble and link the components, which can carry a higher current compared to FR-4.
The main role of the insulation layer is insulation and thermal conductivity, it plays a central role in Aluminum PCB, which helps to disperse heat and reduce the operating temperature of the device to achieve increased power output, reduced volume, and extended life.
The metal substrate can be selected according to the requirements of the thermal and mechanical conductivity of the Aluminum PCB, aluminum is the ideal choice, but also copper, stainless steel, iron, silicon steel, etc.
|
Aluminum LED Lighting PCB Min 6x6mm Max 610x610mm
Lightweight Aluminum Clad 12V RGB LED PCB Board
HASL ENIG OSP Immersion Silver High Power LED Tube Light PCB
High Power LED Light Metal Surface Mount PCB Assembly
Aluminum Substrate PCB SMT Assembly for High Power LED
0.4 - 3.2mm Thickness Aluminum Clad PCB For SMD LED Light
Aluminum Substrate Solar Light 12V LED Circuit Board
Single Sided Aluminum SMD LED Array PCB For Street Light
SMT Power Supply PCB Board With HASL ENIG OSP Immersion Silver Finish
Aluminum Base Prototype SMD LED Lamp Circuit Board
