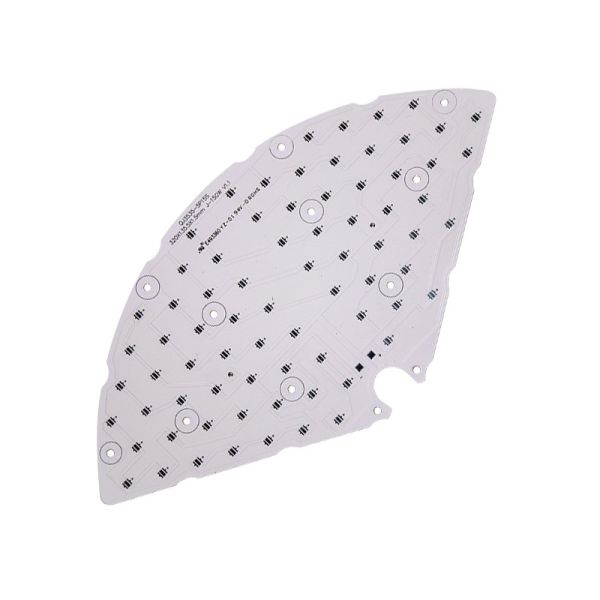

Single Side Aluminum 94V0 LED Strip PCB White Black Silkscreen

Single Side Aluminum 94V0 LED Strip PCB White Black Silkscreen

LED Strip Single Side Aluminum PCB Board 94-v0 led mcpcb for light

Aluminium PCB Stack Up details as the drawing.

1. Aluminium PCB Copper Traces Layer
The copper circuit (traces) layer is etched to form the printed circuit, Compared to FR4 material,

Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.

2. Aluminium PCB Dielectic Layer
The dielectic layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction.

The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.

3. Aluminium PCB Metal Substrate Layer
Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc.

FAQ:

Q1. Are you a factory or trade company?

Shenzhen Yizhuo Electronics Co., Ltd. Is a National High-Tech Enterprise Certified By Iso9001: 2015 International Quality Management System. It Was Founded In 2012.Has Been Committed To The Innovation And Sustainable Development Of Electronic Technology. It Is Used In The Manufacture And Sales Of Various Metal Pcbs, Leds And Related Products. The Products Are Widely Used In Lighting, Electronics, Machinery, Communications, Automotive And Other Industries That Require Heat Dissipation. With a Senior Management Team And r & d Design Team With An Average Industry Experience Of More Than 8 Years, We Have Created a Strong Worldwide Distribution Network And Sales Channels, And Our Products Sell Well In Asia-Pacific, Europe, America, And The Middle East.
