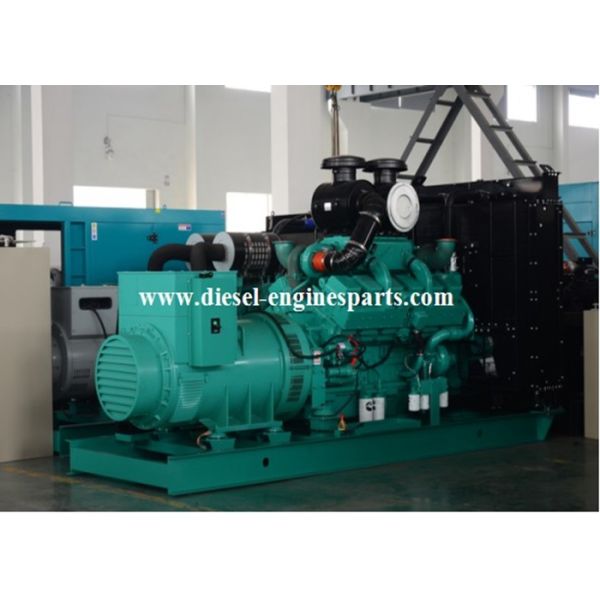

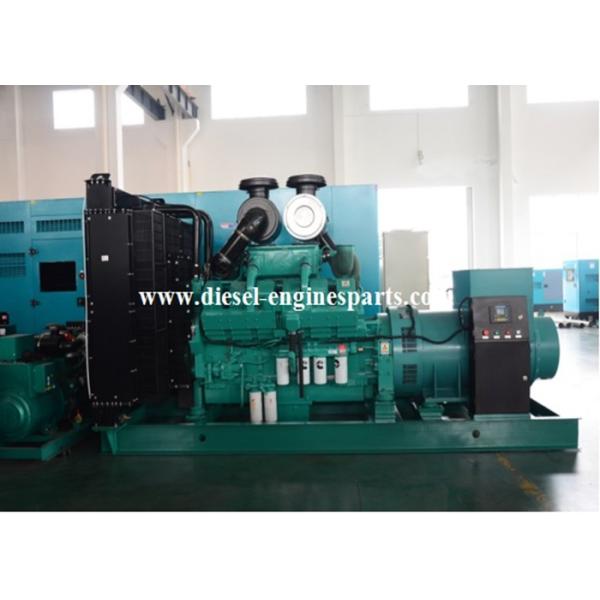

1000kva Containerised Generator Set ISO9001 Cummins Generator Set

Full New Cummins 1000kva Generating Set Container Diesel Generator Set

1. Professional OEM diesel generator factory

2. General features:

• Engine:Cummins KTA38-G2
• Alternator:Leroy Somer TAL-A49-B
• Digital Controller:Deepsea DSE6020
• Equipped with 45℃ Radiator;
• Equipped with 24V DC Start motor;
• Equipped with 3200A Aisikai Brand Circuit Breaker;

n Equipped with vibration Isolators between the engine/alternator and base frame;

n Equipped with high performance maintenance-free lead-acid starting batteries and battery switch;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO9001;

• Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions

ENGINE DATA
Manufacturer/Model	CUMMINS KTA38-G2
No. Of Cylinder	12 Cylinders
Cylinder Arrangement	L Type
Cycle	4 Stroke
Aspiration	Turbocharged,Inter cooling
Combustion System	direct Injection
Bore×Stroke	159mm x159mm
Displacement	38 L
Prime Power/Speed	809KW @ 1800rpm
Standby Power/Speed	895KW @ 1800rpm
Speed Governor	Electronic
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Starter Motor	DC24V

ALTERNATOR DATA
Manufacturer / Model	Leroy Somer TAL-A49-B
A.V.R	Included
Frequency/speed	60HZ/1800rpm
Exciter type	Single bearing, Brush less, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Pole No.	4
Protection Grade	IP23
Phase / wire	3 phase 4 wires
