| Categories | Ultra Fine Enameled Copper Wire |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Place of Origin: | China |
| MOQ: | Different types with differet MOQ |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Model Number: | 3UEW |
| Product Name: | Ultra fine enamled copper wire |
| Insulation: | UEW |
| Size: | AWG 56 |
| Metric size: | 0.012mm |
| Certificate: | ROHS/UL/SGS/ISO9001:2008 |
| Color: | Nature/black |
| Material: | Copper |
| Thermal Class: | 155 |
| Stock: | Available |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

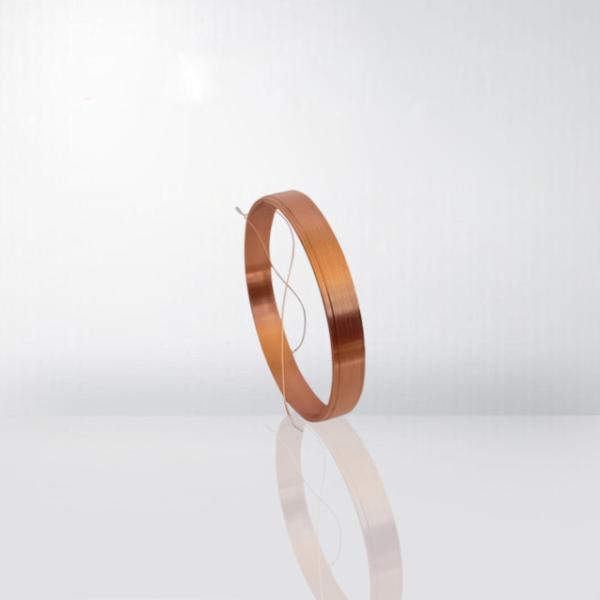

50g 3UEW 0.012MM ENAMELED ULTRA FINE COPPER WIRE SUPER THIN MAGNET COPPER WIRE FOR TOUCH SCREEN
We are the producer of fine and ultrafine enamelled copper wire (winding wire). It is produced and delivered corresponding to the industry standards IEC 60317, NEMA MW1000, JIS C3202 or to customer specific requirements. Besides enamelled copper wire Elektrisola produces enamelled wire made from many other metals as well as selfbonding wire and litz wire.We also can produce the wire according to your request, because sometimes the standard is too wide.Comparing with other competitor, we are the only manufacture who can produce the 0.012mm ultra fine enamled copper wire for mass production, and we also can provide in small quanity such as 50g.
Characteristics | Technical requests | Test Results | Conclusion | |||||||||
Sample 1 | ||||||||||||
1 | Surface | Good | OK | OK | ||||||||
2 | Bare Wire Diameter | 0.012± | 0.0005 | 0.0120 | OK | |||||||
0.0005 | ||||||||||||
3 | Coating Thickness | ≥0.002mm | 0.003 | OK | ||||||||
4 | Overall Diameter | ≤0.016mm | 0.015 | OK | ||||||||
5 | Conductor Resistance | ≤165.99Ω/m | 155.18 | OK | ||||||||
6 | Elongation | ≥5% | 7 | OK | ||||||||
7 | Breakdown Voltage | ≥110 V | 382 | OK | ||||||||
8 | Pinhole Test | ≤12holes/5m | 0 | OK | ||||||||
Remark: | ||||||||||||
Test Items | Technical Requests | Results | Conclusion: Approved | |||||||||
1 | Adhesive | Coating layer is good | OK | |||||||||
2 | Cut-through | 200℃ 2mins no breakdown | OK | |||||||||
3 | Heat Shock | 175±5℃/30min no crack | OK | |||||||||
4 | Solder Ability | 390± 5℃ 2 Sec Smooth | OK | |||||||||
|
