| Categories | Copper Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 20kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | 2UEWF 0.10mm*30 Stranded copper litz wire |
| Diameter: | 0.1mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | 2UEWF 0.10mm*30 Stranded copper litz wire |
| No. of strands: | 30 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

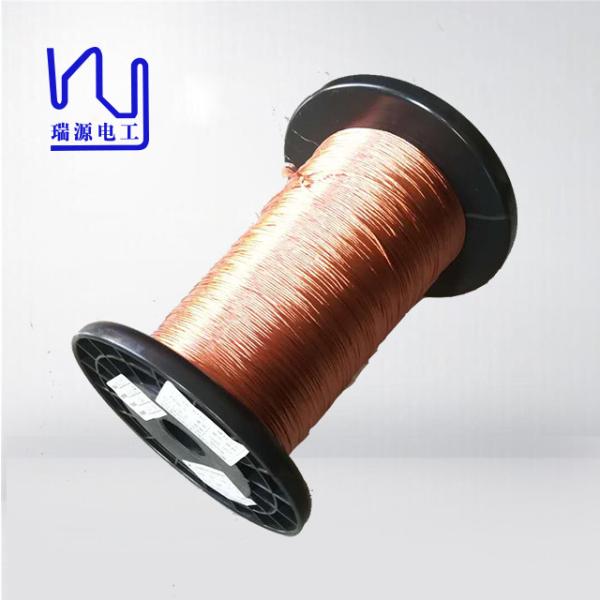

2UEWF 0.10mm*30 Stranded copper litz wire
Stranded wire, generally made by twisting multiple strands of fine enameled wires insulated from each other, is used for high-frequency transformers, high-frequency inductors or high-frequency circuits, etc.
Customized Product Introduction
Stranded wire made by twisting 0.10mm enameled wire as a single wire is our star flagship product. We have many customers ordering this product. We can customize 0.10mm*2 strands until 8000 strands.
Name | 2UEWF 0.10mm*30 Stranded copper litz wire |
Key word | Copper litz wire |
Insulationh | Enamel, polyster cover |
Thermal rating | 155degree |
Diameter of the enameled copper wire | 0.1mm |
Number of strands | 30 |
Key word | 2UEWF 0.10mm*30 Stranded copper litz wire |
| single wire diameter (mm) | 0.10mm |
| number of strands | 30 |
| Maximum Outside Diameter(mm) | 0.79mm |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Twisted | Single twist/multiple twist |
| Pressure resistance | ＞1100V |
| Stranding direction | Forward/ Reverse |
| lay length | 14±2 |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
|
