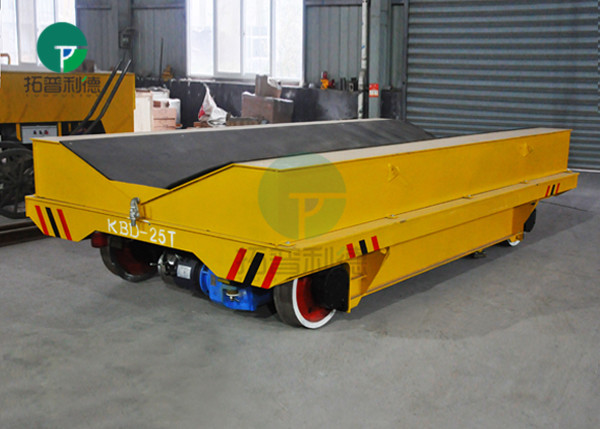

V-Block 20t Electric Industrial Coil Transfer Cart

Introduction

The coil transfer cart is a heavy-duty electric vehicle designed to handle material coils. The structure of the coil transfer cart is similar to that of other common electric transfer carts, but there are V or U shaped brackets mounted on the table of the flat cart. The design of the bracket ensures that the coil is placed safely and stably on the electric cart without the risk of tipping over.

The coil transfer cart is a flexible and customizable piece of equipment that can be customized according to the specific operational needs of different plants. The V/U bracket on the flat cart can be designed in size and number according to the diameter and weight of the coil, making it a universal tool for handling coils of any type of material.

The coil cart saves transportation time and reduces the physical pressure of the material on the transfer cart, thus improving productivity and efficiency.

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

V-Block 20t Electric Factory Coil Transfer Cart V-Block 20t Electric Industrial Coil Transfer Electric Cart

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Product Details

V-Deck Frame Battery Drive mill Material Coil Transfer Cart

Parameter List

Model		KPX-5T	KPX-10T	KPX-20T	KPX-30T	KPX-50T	KPX-100T	KPX-150T
Rated load (T)		5	10	20	30	50	100	150
Table size(mm)	length	3500	3600	4000	4500	5500	6500	10000
	Width	2000	2000	2200	2200	2500	2800	3000
	Height	500	500	550	600	650	900	1200
Wheel Base (mm)		2500	2600	2800	3200	4200	4900	7000
Rail Inner Gauge (mm)		1435	1435	1435	1435	1435	2000	2000
Wheel Diameter(mm)		Φ300	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity(Nos)		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1.2	1.6	2.2	3.5	5	10	15
Battery Capacity (Ah)		180	160	180	250	330	440	600
Battery Voltage (V)		36	48	48	48	48	72	72
Running speed (m/min)		0-30	0-25	0-25	0-25	0-20	0-20	0-18
Running Time When Full Load(Hours)		5.4	4.8	4	3.5	3.3	3.2	3.2
Running Distance for One Charge(Km)		8.1	7.2	4.8	4.2	4	3.8	3.2
Max Wheel Load (KN)		25.8	42.6	77.7	110.4	174	343.8	265.2
Reference Weight (t)		3.6	4.2	5.9	6.8	8	14.5	26.8
Recommended Rail Model		P18	P18	P24	P38	P43	QU100	QU100

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Track battery material transfer cart for coils in workshop

Application

V-block battery power coil transport cart 25tons

Shipping

V-Deck Frame Battery Powered Material Transfer Carts


*From:	Your email address is incorrect!
*To:	Xinxiang New Leader Machinery Manufacturing Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Coil Transfer Cars
Brand Name:	NEWLD
Model Number:	KPX
Certification:	CE,ISO9000
Place of Origin:	China
MOQ:	1 set
Price:	$2500-$6000
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	600 sets/year
Delivery Time:	30-40 days after receive your prepayment
Packaging Details:	The whole Steel Coil Handling Electric Flat Car will be packed by the tarp, the parts will be packed by polywood case.
Product name:	V-Block 20t Electric Industrial Coil Transfer Cart
Key Words:	industrial coil transfer cart
Load capacity:	1-1500T
Running speed:	0-20m/min
Application:	Factory and warehouse for aluminum coil handling cart
Warranty:	2 years
Color:	Customized
OEM:	Accepted
