SUS304 Inside Damp Heat Cycle Climate Test Chamber

SUS304 Inside Damp Heat Cycle Climate Test Chamber

SUS304 Inside Damp Heat Cycle Climate Test Chamber
SUS304 Inside Damp Heat Cycle Climate Test Chamber
Categories Environmental Test Chamber
Brand Name: ZL
Model Number: ZL-6004A
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Delivery Time: 5-8 work days
Packaging Details: Environment Damp Heat Cycle Climatic Stability Test Equipment Leather Paint is packaged within wooden case.
Product name: Environment Damp Heat Cycle Climatic Stability Test Equipment Leather Paint
Humidity range: 20%~98%R.H.
Temperature range: -70℃~+100℃(150℃)
Inside material: Stainless steel SUS 304#
Cooling system: Air-cooled/ single-stage compressor(-20℃) ，wind, water cooled/two-stage compressor(-40℃~-70℃)
protection: compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Contact Now
Company Info.
Dongguan Zhongli Instrument Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SUS304 Inside Damp Heat Cycle Climate Test Chamber

SUS304 Inside Damp Heat Cycle Climate Test Chamber
This environmental damp heat cycle climatic stability test equipment is designed for testing leather, paint, and various materials under controlled temperature and humidity conditions.
Equipment Overview
The SUS304 stainless steel test chamber is engineered for evaluating material performance under heat-resistance, cold-resistance, dry-resistance, and moisture-resistance conditions. Featuring simple operation and easy programming capabilities, it displays set values and operational time for precise testing control.
Key Features
  • High-texture appearance with matte stripe surface treatment and planar non-reactive handles for safe, reliable operation
  • Rectangular complex glass viewing window with anti-sweat heater and high-brightness PL light for clear sample observation
  • Double-insulated airtight container effectively isolates internal temperature leakage
  • External water supply system enables easy water replenishment and automatic reuse
  • French "Taikang" compressor circulatory system with efficient oil removal and environmentally friendly refrigerants (R23, R404, R507)
  • Imported LCD display controller shows measured values, settings, and time
  • Multi-segment program editing with quick (QUICK) or slope (SLOP) temperature and humidity control
  • Built-in mobile pulley system with strong positioning screws for easy mobility and secure placement
Industry Applications
Widely applied for quality control across multiple industries including electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, and medical care.
Technical Specifications
ModelZL-80 (A~G)ZL-150 (A~G)ZL-225 (A~G)ZL-408 (A~G)ZL-608 (A~G)ZL-800 (A~G)ZL-1000 (A~G)
Inside Size W*H*D (cm)40*50*4050*60*5050*75*6060*85*8080*95*80100*100*80100*100*100
Outside Size W*H*D (cm)100*170*87105*175*97115*190*97135*195*115145*185*137145*210*130147*210*140
Temperature Range-70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range20%~98% R.H. (10%-98% R.H./5%~98% R.H. under specific conditions)
Accuracy / Uniformity±0.1℃; ±0.1% R.H. / ±1.0℃; ±3.0% R.H.
Accuracy / Volatility±1.0℃; ±2.0% R.H. / ±0.5℃; ±2.0% R.H.
Heating / Cooling TimeApprox. 4.0℃/min heating; approx. 1.0℃/min cooling (5~10℃/min under specific conditions)
Interior MaterialStainless Steel SUS 304#
Insulation MaterialHigh-temperature high-density amino acid ethyl ester foam insulation
Cooling SystemAir-cooled/single-stage compressor (-20℃), wind/water cooled/two-stage compressor (-40℃~-70℃)
Safety ProtectionCompressor overload switch, high/low pressure protection, over-humidity/temperature protection, fuses, warning system
Standard AccessoriesView window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball (recorder optional)
ControllerTEMI300 digital controller (South Korea)
CompressorFrance Tecumseh
Power Supply1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
SUS304 Damp Heat Cycle Climate Test Chamber interior view showing stainless steel construction and control panel

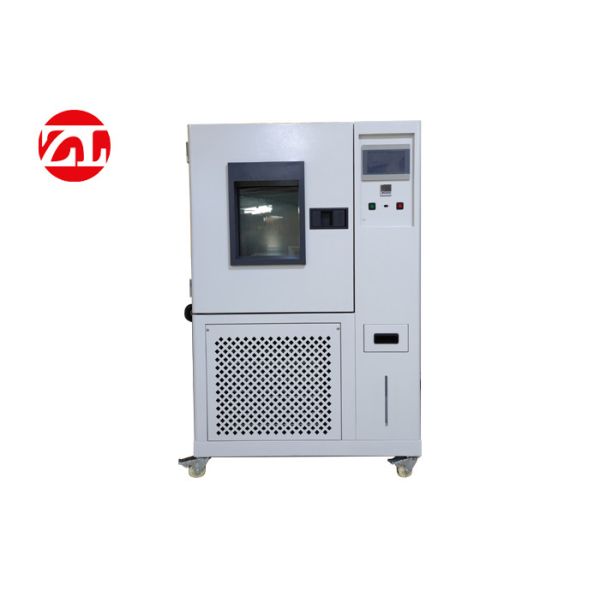

External view of SUS304 Climate Test Chamber showing overall design and control interface
