| Categories | Electric Transfer Cart |
|---|---|
| Brand Name: | BEFANBY |
| Model Number: | KPT |
| Certification: | CE, SGS, ISO9001 |
| Place of Origin: | Henan,China |
| MOQ: | 1 set/sets |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1500 set/sets per year |
| Delivery Time: | 40-50 days as usual delivery,30-40days for urgent delivery |
| Packaging Details: | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Power supply: | Mobile cable |
| Running distance: | According to customers' demand |
| Running speed: | 0-20m/min |
| Color: | Customized |
| Load capacity: | 1-1500T |
| Warranty: | 12 months |

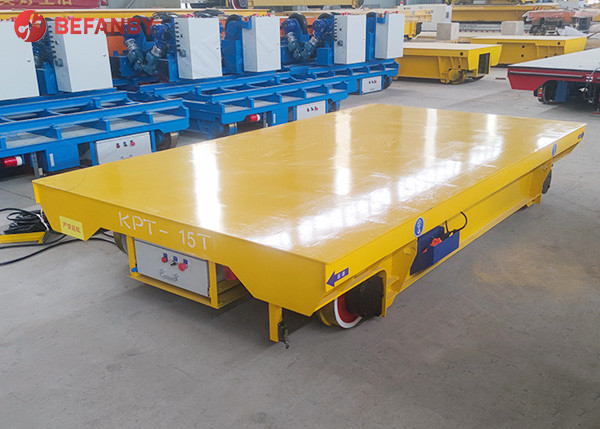

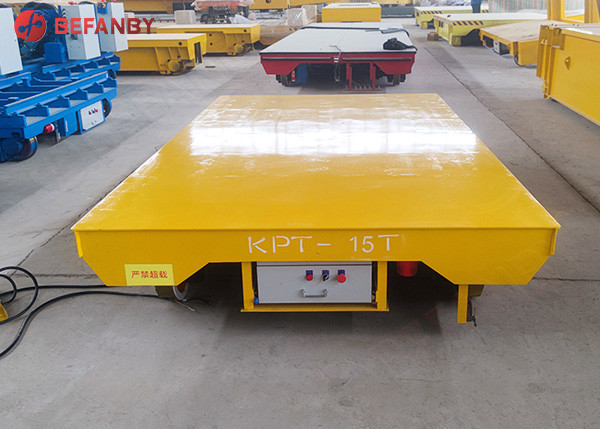

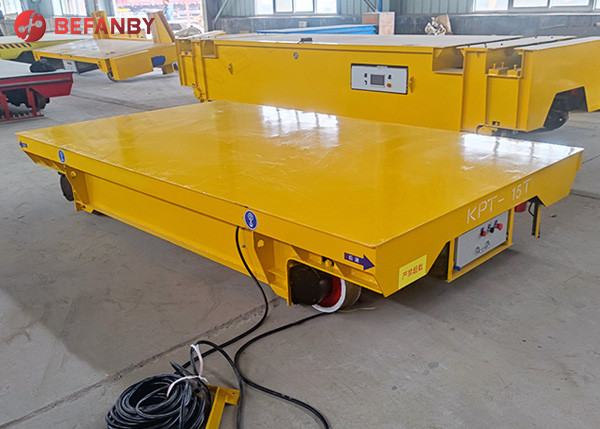

| Product Name: | Metal Plate Transfer Electric Motorized Railway Vehicle |
| Company Info. |
| Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Our material handling vehicle can transport up to 1500 tons of cargo, making it perfect for many occasions.
Motorized railway vehicle are powered by cables. The cables are placed on the ground and the electric transfer cart move to drag the cables, thus providing power to the flat cars. In order to protect the cable, we added a tow chain to match the cable use, so as to avoid the ground cable wear.
Our electric rail car can be operated wireless, which makes it perfect for use in hot or harsh environments. In addition, flatbed cars can not only run in a straight line, but also on curved tracks, which can meet your transportation needs.Transfer trolley body selection is thickened steel, bearing capacity is strong, not easy to deformation.
| Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
|
