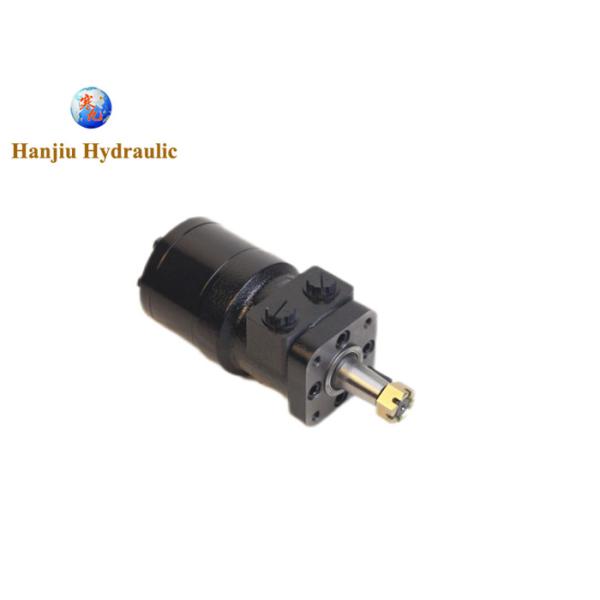

Charlynn Gerotor Hydraulic Motor 103-1064-002 4 Bolts Square Flange 1 Inch SAE 6B Splined Shaft

Categories Gerotor Hydraulic Motor
Brand Name: HANJIU
Model Number: BMRS MOTOR
Certification: CE
Place of Origin: China
MOQ: 100 Pieces
Price: 47 - 60 usd
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Delivery Time: 10 - 15 work days
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type: Geroler and Gerotor motor
Model No.: BMRS375
max speed: cont.155/int. 190 rpm
max torque: cont.365/int. 495 N.M
max output: cont.5/int. 8 kw
max pressure: cont.7/int 10 mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Charlynn Gerotor Hydraulic Motor 103-1064-002 4 Bolts Square Flange 1 Inch SAE 6B Splined Shaft


Charlynn gerotor hydraulic motor 103-1064-002, 4 bolts square flange, 1 inch SAE 6B Splined shaft

Specifications:

TypeBMRS
Displacement375CC
shaft1inch 6B spline shaft
FlangeH4
Port Positionside ports
Shaft SealHigh Pressure
DrainYes


Main specification
TypeBMRS
36
BMRS
50
BMRS
80
BMRS
100
BMRS
125
BMRS
160
BMRS
200
BMRS
250
BMRS
315
BMRS
375
displacement (cm3 /rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
Max. speed (rpm)cont.1085960750600475378310240190155
int.12201150940750600475385300240190
Max. torque (N·m)cont.

72

100195240300360360390390365
int.83126220280340430440490535495
peak105165270320370460560640650680
Max. output (kW)cont.8.59.512.513.012.512.5107.06.05
int.9.811.21515.014.514139.59.08
Max. pressure drop (MPa)cont.14.01417.517.517.516.5131197
int.16.517.52020202017.5151310
peak22.522.522.522.522.522.522.52017.515
Max. flow (L/min)cont.40506060606060606060
int.45607575757575757575
Weight (kg)6.56.76.977.37.68.08.59.09.5
