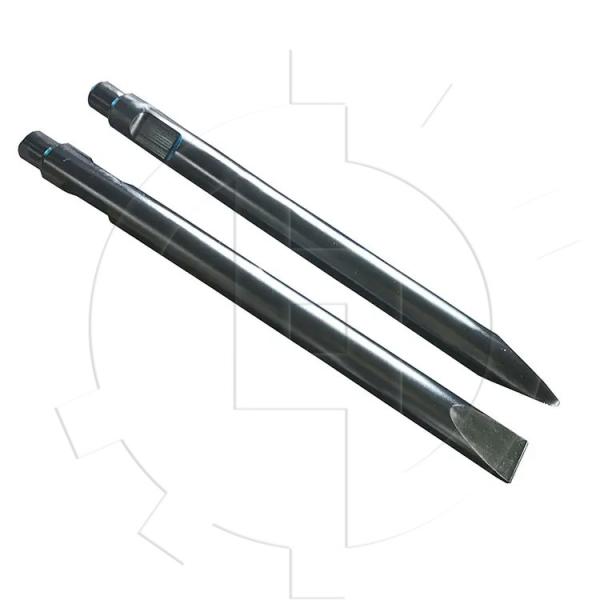

135*1200 Moil Type Wedge Type 42CrMo Chisels For S2000 S2200 S2500 S3000 S3600 Hydraulic Breaker Spare Parts

Categories Hydraulic Breaker Spare Parts
Brand Name: Huilian
Model Number: DARMO S2000 S2200 S2500 S3000 S3600
CertifiCATEEEEEion: ISO9001
Place of Origin: China
MOQ: 1 Pieces
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10000 PCS per month
Delivery Time: 1-7days
Packaging Details: PP Bag Carton
Part Name: Hydraulic Breaker chisel
Model: DARMO S2000 S2200 S2500 S3000 S3600
Core Components: Wear bush,Through bolt,side bolt,front cover,rod pin,accumulator
Material: 40cr/42crmo
Type: Breaker Wedge CONICAL BLUNT chisel
OEM: YES
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

135*1200 Moil Type Wedge Type 42CrMo Chisels For S2000 S2200 S2500 S3000 S3600 Hydraulic Breaker Spare Parts

135*1200 Moil Type Wedge Type 42CrMo Chisels for S2000 S2200 S2500 S3000 S3600 Hydraulic Breaker


Product overview

1. Material: 40Cr or 42CrMo

2. Dimension: Depending on the specifiCATEEEEEEEEEEion of Tool Maker

3. Chisel type: Moil Point, Blunt Tool, Flat, wedge

4. Heat Treatment:

a.Austen-ting Temperature 810~850 (20min/inch)

b.Cooling Water oil cooling

c.Tempering 250~300 (1hr/inch)

5. Mechanical Properties:

a.Surface Hardness HRC51± 3

b.Core Hardness HRC35± 3

c.Tensile strength(min) 1250N/mm²

d.Yield point (min) 950N/mm²

e.Elongation 10~14%

f.Reduction of Area 35~40%

j.Impact work 23~28 ft1b

k.Grain size 7.0~8.0


For DARMO Alincon Series


DAEMO
S150S2200-IIDMB-20DMB-210B20B210
S500S2300DMB-30DMB-230B30B230
S700S2500DMB-40DMB-250B40B250
S900S3000DMB-50DMB-300B50B300
S1300S3600DMB-70DMB-360B70B360
S1800S4500DMB-90DMB-450B90B450
S2000S5000DMB-140DMB-800B140B600
S2200DMB-10DMB-180B10B180B800

Show your Soosan Chisel Dedails as below

Type/Parameter Size(mm)Size(mm)Weight(kq)MaterialSuitable tvpe of breaker
Moil/Wegde-68/0.7Ф68*7001642Crmosb40
Moil/Wegde-75/0.72Ф75*7202142Crmosb43
Moil/Wegde-85/0.9Ф850*9002942Crmosb45
Moil/Wegde-100/1Ф100*10005542Crmosb50
Moil/Wegde-135/1.3Ф135*130012742CrmoGB8AT/20G/SB81N
Moil/Wegde-140/1.3Ф140*130013442CrmoSB81/GB8T/FX140
Moil/Wegde-150/1.4Ф150*140015542CrmoSB100/30G/RHB330
Moil/Wegde-155/1.5Ф155*150018342CrmoSB121/F37
Moil/Wegde-165/1.6Ф165*160022042CrmoSB131
Moil/Wegde-175/1.6Ф175*160026042CrmoSB151
Moil/Wegde-185/1.7Ф185*170030842CrmoSB161

Below are some brands and models of chisels, and we can also customize special sizes as customer's requirements.

BRANDMODEL
INDECOMES121/150, MES180/181/200, MES300/301/350/351, MES451/521/550/HB5, MES601/621/650
HB8, MES1200/HB12, MES1500/HB19, MES1750/1800, MES2000/HB27, MES2500, MES3000
MES3500, MES4000, MES5000, MES7000, MES8500, MES12000
ATLAS COPCOMB500, MB700/800, MB1000, MB1200, MB1500, MB1600, MB1700, HB2000, HB2200, HB2500
HB3000, HB4200, TEX75/80/100H/HS, TEX110H/HS, TEX200H, TEX250H1, TEX400H/HS
TEX600/700/900H/HS, TEX1400H/HS
MKBMKB500, MKB800, MKB900, MKB1200, MKB1400, MKB1500, MKB1600, MKB1700
MKB2000, MKB2500
BLTBLT20, BLT30, BLT40, BLT50, BLT60, BLT80-1, BLT80-2, BLT81, BLT100, BLT160, BLT190
KRUPPAT20, AT70, AT120, AT170, AT220, HM45, HM50/51/55, HM60V, HM60/61/75, HM85/90V
HM100/110, HM130/131/135/140V, HM170/185/190V, HM200, HM220V, HM230V, HM300/301/305
HM350V, HM400/401, HM550/560CS/V, HM580, HM600/601, HM680, HM720CS/711/715,
HM700/701/702/705, HM710/720CS/V, HM780, HM780V, HM800,HM900/901/902, HM950/960-CS/V, HM1000, HM1000V, HM1200, HM1300/1500CS/V, HM1800/2000CS/V, HM2100, HM2200/2500CS/V
RAMMER/S-21/BR321, S-20/22/BR623, S-24, S-25,/BR825, S-26/D-50, S29/BR1229, S-52, S-54/D-60, S-55
S-56/D-70, S-82, S-83/D-110, S-84, S-86, E-63/BR2063, E-64/BR2064, E-66/66N/BR2266, E-68/BR2568, G-80, G-90/BR3890, G-100/BR4510, G-110/BR4511, G-120
TEISAKUTR40, TR60, TR100, TR200, TR210, TR220, TR300, TR400
MONTABERTBRH40, BRP75/76/90/91, BRP85/100/95/M85, BRP130/140/150/M130,M125SX, M300, M600, M700, BRH125, BRH250/270, BRH501/750, BRH620, BRH625/M900/V900, BRH750, BRP1100/V1600, BRP30, BRP45/50/M50, BRP60/70/M60/M70, BRV43, BRV45, BRV52, BRV53, BRV55, BRV1600, SC6/NE6, SC8/NE8, SC12/NE12, SC16/NE16, SC22/NE22, SC28/NE28, SC36/NE36,
MIRACLEMB15M, MB20M, MB35M, MB50M, MB80M, MB100M, MB130M, MB160M, MB300M, MB180F, MB250F
MB260F, MB350F, MB450F, MB600F
DOUBLE BULLDBB10, DBB20, DBB30, DBB50, DBB70, DBB90, DBB130, DBB160, DBB200, DBB220, DBB280

Company Show

Guangzhou Huilian Machinery Equipment Co., Ltd. Our company was established in 2011.
Huilian is a professional spare parts manufacturer and reliable supplier, providing almost all spare parts for various models

rock breakers.
Specializes in:


Excavator accessories
Hydraulic breaker accessories


Breaker Spare Parts Suitable for the brands: SOOSAN, FURUKAWA, KRUPP, ATLAS-COPCO, EDT, JCB, NPK, , HANWOO,

TOKU, FINE, OKADA, SAGA, MONTABERT, INDECO, KWANGLIM, RAMMER, KONAN, KOMATSU, GENERAL etc.

Excavator Spare Parts Suitable for the brands: CATEEEEEEEEEE, KOMATSU, HITACHI, EC, KOBELCO, cx, SUMITOMO, DOOSA,

NHYUNDAI, SANY, XG ect. The logistics in Guangzhou is very convenient that we deliver goods to the whole world.
