Double Wall Floor Mounted Outdoor Electrical Enclosures Cabinets With Air Conditioner And Fan 42U

Double Wall Floor Mounted Outdoor Electrical Enclosures Cabinets With Air Conditioner And Fan 42U

1. Floor Mounted Outdoor Cabinet Structure

(1) External Dimension W×D×H 9000×9000×2200mm

(2) One compartment, 42U free space

(3) One front door; with special lock for outdoor cabinet (support padlock)

(4) Material: Galvanized steel, 1.2mm thickness Left, right and back side : Sandwich structure panel, inner panel: 0.5mm, outer panel: 0.5mm; 45mm EPS between two panels Top cover: galvanized steel, inner panel:1.0mm, outer panel:1.2mm, 40mm PEF between two panels; Door and bottom: galvanized steel, inner panel:0.8mm, outer panel:1.5mm, 40mm PEF between two panels;Cabinet base: galvanized steel, 2.0mm thickness

(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated.

2. 42U Weatherproof Telecom Cabinet Features

- Material: good quality Galvanized steel

- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

- Cabinet load bearing: ≥400kg

- Ingress protection: IP55

- Flame retardance: comply with GB5169.7 test A

- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

3. Double Wall Enclosure Table 1 Standard Compliance

4. Floor Mounted Cabinet Pictures and Diagram

5. Cabinet with Air Condtioner Technical Parameters

6. Cabinet With Air Conditioner Accessories List

7. Cabinet LED Lamp

LED lamp is installed at the top of the cabinet.

8. Cabinet Floor mounting

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

9. Cabinet Air Cooling

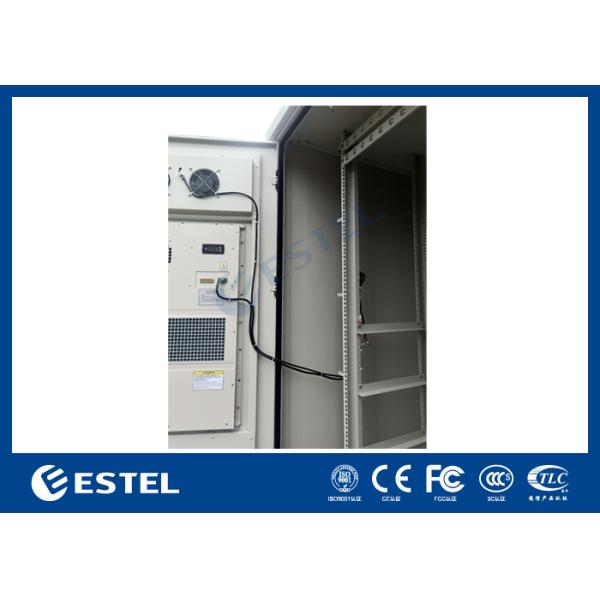

Air conditioner

Cooling capacity: 1500W.

Power Supply: 220VAC 50HZ

Installed on front door.

10. Packing and Shipping

Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
