Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE

Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE

Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE
Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE
Categories Powder Milling Machine
Brand Name: BrightSail
Certification: CE ISO
Place of Origin: Jiangsu, China
Price: $2,700.00/sets >=1 sets
Supply Ability: 20 Set/Sets per Month
Packaging Details: 60mesh hammer mill for red pepper chilli and turmeric powder grinding mill machine
wooden case or container
Output (kg/h): 100 - 1500 kg/h
Feeding Size (mm): 100 - 120 mm
Output Size (mesh): 20 - 120 mesh
Material: SUS304, SUS316
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Type: Pulverizer
Product Type: powder grinding machine
Voltage: Customized
Dimension(L*W*H): Customizable
Weight (KG): 1000 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Construction works , Food & Beverage Shops
Showroom Location: None
Marketing Type: New Product 2023
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
After Warranty Service: Spare parts
Product name: red pepper chilli and turmeric powder grinding mill machine
Capacity: 50-2000kg/H
Fineness: 10-120 Mesh
Suitable for: food,chemical,pharmacy,etc
Port: SHANGHAI
Contact Now
Company Info.
Jiangyin Brightsail Machinery Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE

Brightsail BSDF Black Pepper Spice Powder Grinding Mill Powder Making Machine With CE
Product Description
BSDF Black Pepper Spice Powder Grinding unit includes:
1) crusher part
2) cyclone (discharge system)
3) pulse dust collecting system
4) blower
5) electrical control box

Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine
powder will be seperated to dust collecting box.
The production process is dust-free and continuous. BSDF advanced hammer grinding set is suitable for grinding spices, like ginger, garlic, chilli...etc.
Application
Technical Data of BSDF Black Pepper Spice Powder Grinding
Model
BSDF-350
BSDF-450
BSDF-550
BSDF-750
Rotor speed (rpm)
3500-4500
3300-4200
2900-3600
2100-2700
Grind motor (kw)
22
37
45
75
Discharge motor (kw)
0.75
0.75
1.1
1.5
Blower (kw)
7.5
11
15
18.5
Fineness (mesh)
20-120
20-120
20-120
20-120
Capacity (kg/hr)
100-200
300-500
600-800
800-1300
Detailed Images

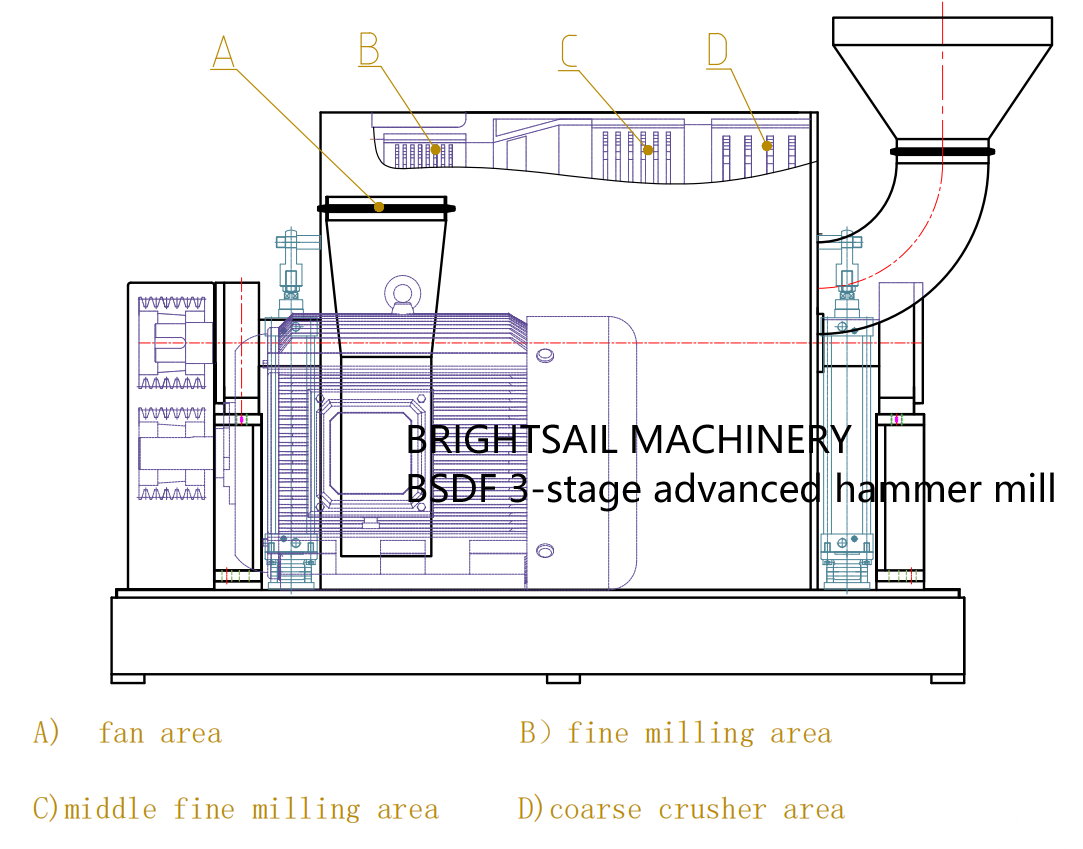

Crusher part:
It combines coarse crushing area, middle fine milling area and super fine milling area together. Each group has one unit of knives and one liner.
Material is fed into the mill chamber, pass through the high speed rotation caused by the three groups of knives one by one.
Material is crushed three times in one mill chamber, then become fine powder. Between middle fine crush knife group and fine mill
knife group, there is a device designed for preventing coarse granule going to fine milling area, so powder fineness is assured.
The rotor speed is controlled by inverter, different particle size is achieved by adjusting rotation speed.

Advantages:
1) No need screen or sieve in mill chamber, change powder particle size by changing speed through inverter;
2) Because it has no screen in mill chamber, it can make finer powder than common hammer grinder machines.
3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly
from big raw material, very effective. Then, no need to crush big material firstly.
4) It can save more power, its capacity is much bigger than other traditional hammer mills.
If you need small capacity or if you don't need fine powder, there are other different grinders for your choices.
Not only Grinding Machine!
We provide overall one-stop spice&herb product processing machines and solutions.
We provide washing machine,cutting machine,dryer, roasting machine, crusher, grinder, pulverizer, mixer, filling and packing
machines......etc
Buyer feedback
Packaging&Shipping
Our Services

Pre-Sales Service

* Inquiry and consulting support with 24 hours

* Sample testing support.

* View our Factory.

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.

* Engineers available to service machinery overseas.

Company Information
Jiangyin Brightsail Machinery focuses on one-stop overall powder process solutions.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
