| Categories | Copper Alloy Tube |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 500 KGS |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Delivery Time: | 5 - 90 Work Days |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Standard: | ASTM B111, ASME SB111 |
| Material Grade: | UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn, 2.0872 |
| Outside diameter: | 2mm~914mm, Or As customized |
| Wall Thickness: | 0.7-10mm, Or As customized |
| Length: | 6M, Or As Required |
| Shape: | Round |
| Applications: | Air Condition Or Refrigerator |
| Ends: | Bevled End, Plain End, Thread End |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

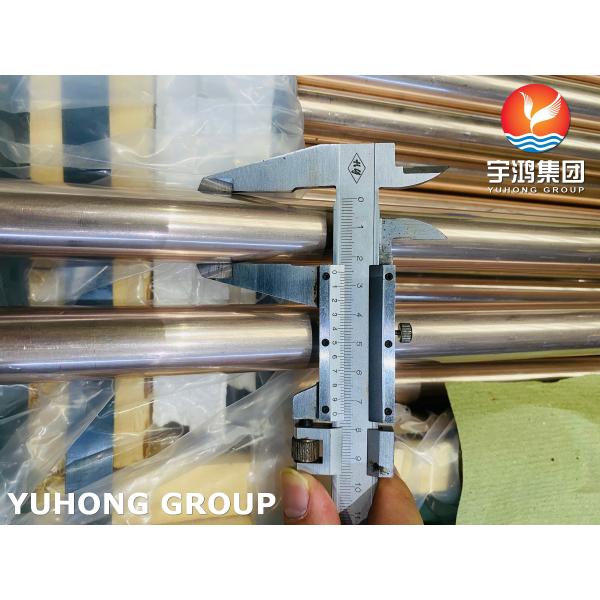

ASME SB111 UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn Copper Nickel Alloy
Seamless Tube
ASTM B111 UNS C70600, also known as Cu-Ni 90/10, is a copper-nickel alloy with a composition of 90% copper and 10%
nickel. UNS C70600 Copper Nickel Alloy Seamless Tube is usually
used in a variety of applications, including marine system,
chemical industry, heat exchangers, coolers, food processing
equipments, construction and so on. Copper Nickel 90/10 alloy tubes
are well-known for their excellent corrosion resistance, high
strength and low magnetic permeability. These copper nickel alloy
seamless tubes are also easy to fabricate and have excellent
formability.
Characteristics:
Chemical Composition (%):
| Cu | Pb | Mn | Fe | Zn | Ni |
| 88.6 min | 0.05 max | 1.0 max | 1.8 max | 1 max | 9-11 max |
Mechanical Properties:
| Properties | Metric | Imperial |
| Tensile Strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | |
Thermal Properties:
| Treatment | Minimum | Maximum |
| Annealing | 1100°F | 1500°F |
| Hot Working Temperature | 1550°F | 1750°F |
Applications:
|
