| Categories | Boiler Tube |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASME SA213 T22 Alloy Steel Seamless Tube |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | CHINA |
| MOQ: | 3000KGS |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 7days |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Standard: | ASTM A213, ASME SA213 |
| Material: | T5, T9, T11, T12, T22, T23, T91 |
| OD: | 1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", etc. |
| WT: | BWG10,12,14,16,18,20,22,25, or custom |
| Length: | Single Random, Double Random & Cut Length |
| End: | Plain End, Beveled End |
| Type: | Seamless |
| NDT: | Eddy Current Test, Hydrostatic Test , Ultrasonic Test |
| Form: | Straight, U bend tube |
| High Light: | ASME SA213 T22 Alloy Steel Seamless Tube, Heat Exchanger and Boiler Tube |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

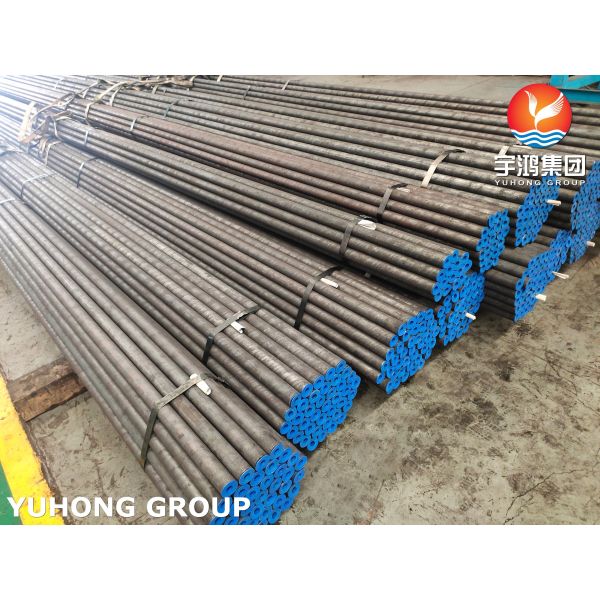

ASTM A213 / ASME SA213 T22 Alloy Steel Seamless tube for Boiler and Heat exchanger
The T22 alloy typically contains about 2.25% chromium and 1.0% molybdenum, along with small amounts of carbon, silicon, and manganese. This composition enhances its strength and resistance to heat. Grade T22 alloy steel has good properties: 1. high-Temperature Strength: can withstand temperatures up to 600°C (1112°F) without losing structural integrity. 2. creep Resistance: Excellent resistance to creep (deformation under constant load over time) at elevated temperatures. 3. weldability: Good weldability, allowing for various fabrication techniques. 4. ductility: Maintains ductility and toughness, making it less prone to brittleness even at high temperatures.
| Carbon | Chromiun | Low Temperature | Stainless Steel | Duplex | Copper& Bronze | Titanium | Ni-Alloy | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties
| Grade | Chemical Composition% | ||||||||
| C | Si | Mn | P, S Max | Cr | Mo | Ni Max | V | Al Max | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0.025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0.025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Max 0.5 | 0.30~0.61 | 0.025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Max 0.5 | 0.30~0.60 | 0.025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0.02 | 8.0~9.5 | 0.85~1.05 | 0.4 | 0.18~0.25 | 0.015 |
| T92 | 0.07~0.13 | Max 0.5 | 0.30~0.60 | 0.02 | 8.5~9.5 | 0.30~0.60 | 0.4 | 0.15~0.25 | 0.015 |
| Grade | Chemical Composition% | Mechanical Properties | |||||||
| W | B | Nb | N | T. S | Y. P | Elongation | Hardness | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW(85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW(25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW(25HRB) | |
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Advantages of Alloy Steel T22
High-Temperature Strength
Enhanced Durability
Seamless Construction
Good Weldability
Cost-Effectiveness
Resistance to Oxidation
Versatility
