Deck Machinery Winch LBS Sleeve Steel Wire Rope Split Sleeve

Categories LBS Sleeve
Brand Name: LBS
Model Number: Custom design
Place of Origin: Hebei,China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Delivery Time: 20 to 30 work days, depends on order amount and specification
Packaging Details: Export standard wooden case
Grooving Type: LBS groove
Port: Tianjin China
Sling Type: Wire rope or cable
Product condition: Fully machined
Color: According to customer demand
Application: marine ship,Port,Hoisting Machinery ...
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

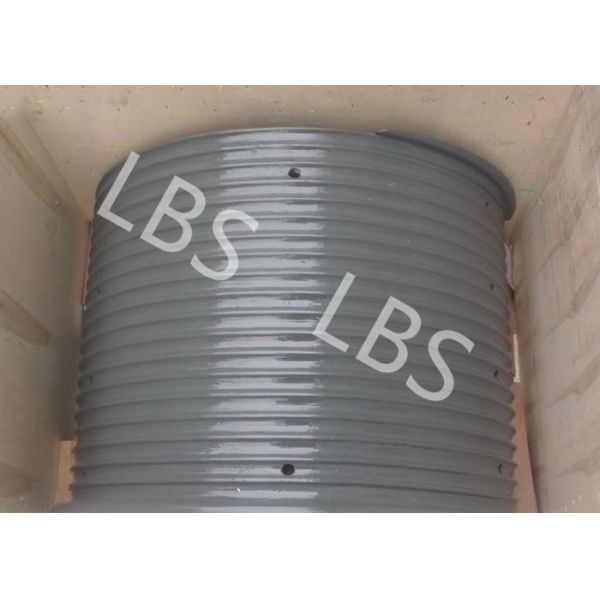

Deck Machinery Winch LBS Sleeve Steel Wire Rope Split Sleeve

Deck Machinery Winch LBS Sleeve Steel Wire Rope Split Sleeve



Product specifications:
1) Wire rope or cable diameter (mm)
2) Winch drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges

TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc

LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

FLEET ANGLE.doc


Processing equipment:
CNC machining center

Product material:
Polymer nylon, alloy steel, aluminum, carbon steel, all kinds of high-strength steel Q345, Q420, Q460, 20GrMo, 42GrMo, etc

Working environment:
Indoor, outdoor, rain and dust environment

Product application:
1. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
2. Crane machinery: the bridge lifting machine, tower crane
3. The hoist: building wipe wall machine, winding machine
4. Engineering machinery: tower crane, piling machine
5. Marine machinery: offshore petroleum crane winch, drawworks and hoist
......

Product structure:
Split wire rope groove sleeve: grooved split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum.
Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.

Technical parameters and application:

No:Wire diameter(mm):Rotation directionMain drum
diameter(mm)
Main drum length(mm)Application
18 10 13Lefthand,Righthand430763The oil workover rig winch,
Towing winch
Tower crane
213 18 20Lefthand,Righthand6231144

Engineering winch,
Lifting winch,

Crawler crane

322 25 26Lefthand,Righthand7301220Oil workover rig ,
Logging Winch
418 22 32Lefthand,Righthand6701240

Drilling Rig Winch,

drawworks

528 32 36 40Lefthand,Righthand560630Rotating Drilling Rig winch,
Lifting equipment
626 28 32 45Lefthand,Righthand760 11461970 1765

Offshore Crane,
Marine crane,Mooring winch

......


Product advantage:
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.


Product Tags:

lebus groove



drum sleeve
