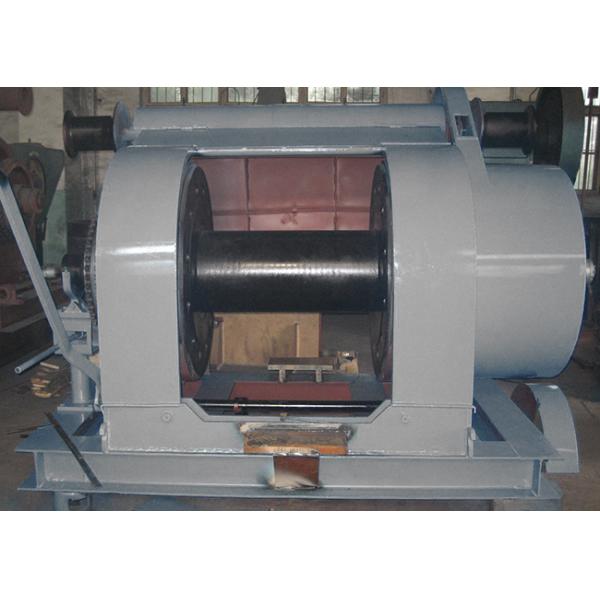

Heavy Duty Windlass Boat Winch / Large Tonnage Windlass Hoist

wire rope winch JM series technical sheet:

Features:

• Switch controller with forward, stop and reverse
• Switching Method:electric or hand
• wires with steel cover protection
• Uses 3 wires to power supply connection
• 3000 kg line pull capacity
• Drum capacity 16mm x 180m ropes
• Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
• With bolt holes on bottom for mounting.
• Shipping weight 1mt
• Apprance size: 1770mm(L) x 11200mm(W) x 1120mm(H)
• Motor:7.5kw,380v,3P,50HZ,

• wire rope winch JM series technical sheet:




  Model		JM2	JM3	JM5	JM8	JM10
  Line pull capacity (kg)		2000	3000	5000	8000	10000
  Wire rope average speed (m/min)		12	10	10	10	9
  Wire rope(mm):		12.5	15.5	21.5	26	30
  Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
  	Transmission ratio	23.34	31.5	23.34	31.5	40.17
  Drum (mm)	Diameter()	273	325	406	500	550
  	Length	480	520	645	900	1000
  Capacity(m)		150	180	250	300	450
  motor	Type	YZ160M2-6	YZ160M2-6	YZ160L-6	YZR225M-8	YZR250M1-8
  	Power(kW)	7.5	7.5	11	22	30
  	Rotate speed(r/min)	948	948	953	720	720
  Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-300
  Equipment Dimension (cm)		142 x96 x62	154 x107 x70	185 x135 x90	205x275x105	220x190x110
  Weight(kg)		630	680	1400	3000	4000




  Features:

• Switch controller with forward, stop and reverse
• Switching Method: Hand turn control
• wires with steel cover protection
• Uses 3 wires to power supply connection
• 3000 kg line pull capacity
• Drum capacity 16mm x 180m ropes
• Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
• With bolt holes on bottom for mounting.
• Shipping weight 1000kg
• Apprance size: 1775mm(L) x 1150mm(W) x 1100mm(H)
• Motor:7.5kw,380v,3P,50HZ,

• wire rope winch JM series technical sheet:




  Model		JM2	JM3	JM5	JM8	JM10
  Line pull capacity (kg)		2000	3000	5000	8000	10000
  Wire rope average speed (m/min)		12	10	10	10	9
  Wire rope(mm):		12.5	15.5	21.5	26	30
  Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
  	Transmission ratio	23.34	31.5	23.34	31.5	40.17
  Drum (mm)	Diameter()	273	325	406	500	550
  	Length	480	520	645	900	1000
  Capacity(m)		150	180	250	300	450
  motor	Type	YZ160M2-6	YZ160M2-6	YZ160L-6	YZR225M-8	YZR250M1-8
  	Power(kW)	7.5	7.5	11	22	30
  	Rotate speed(r/min)	948	948	953	720	720
  Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-300
  Equipment Dimension (cm)		142 x96 x62	154 x107 x70	185 x135 x90	205x275x105	220x190x110
  Weight(kg)		630	680	1400	3000	4000




  Features:

• Switch controller with forward, stop and reverse
• Switching Method: Hand turn control
•

• wires with steel cover protection
• Uses 3 wires to power supply connection
• 3000 kg line pull capacity
• Drum capacity 16mm x 180m ropes
• Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
• With bolt holes on bottom for mounting.
• Shipping weight 1000kg
• Apprance size: 1775mm(L) x 1150mm(W) x 1100mm(H)
• Motor:7.5kw,380v,3P,50HZ,

1. Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used LBS grooved drum)

2. One year of warranty

3. The engineer can provide overseas service

4. Quick and responsible after-sales service

6. Professional technicians provide installation, commissioning services.

7. Technical advisory for any time.

Shijiazhuang Jun Zhong Machinery Manufacturing Co., Ltd, located in shijiazhuang city, hebei province, china, covers an area of more than 80 square meters, the geographical position is superior, transportation is convenient. Factory existing staff more than 3000, more than 600 professional and technical personnel, We have skilled workers, advanced processing equipment.

Our factory has casting, forging, gear machining, sheet metal stamping, welding, heat treatment, machining and other advanced equipment more than 2000 sets. In recent years, we has introductioned Germany CW1000 processing center, CNC four axis, five-axis linkage machining center, CNC punching machine, large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and 80 machine and other advanced processing equipment.

Our factory adopts advanced and reliable technology, specializing in the production of various types of winches, LBS wire rope groove drum, automatic rope arrangement, petroleum drilling rig winch, trailer mounted pumping unit,fifth wheel,Herringbone Gear,etc., products widely used in aviation, shipbuilding, metallurgy, petroleum, coal, port, wind power, hydropower and other heavy machinery field. in addition to the domestic market, products as been successfully exported to Singapore, America, Britain and other parts of Asia pcific and the west.

In the process of production and management we always adhere to market-oriented, based on the science and technology, relying on scientific and technological innovation, in accordance with the domestic and foreign latest relevant standards and specifications, constantly absorbing new technology improved product of research and development, so that the overall quality of products continue to increase. our factory always adhere to the "integrity, customer first " business purposes, with high reputation, high quality products and service system, and a competitive price policy, to provide customers with satisfactory service, we sincerely look forward to working with customers from home and abroad to establish long-term stable business cooperation!
