OEM Offshore Marine Windlass Winch For Scientific Research Ship

Categories Wire Rope Winch Drum
Place of Origin: Hebei,China
Brand Name: LBS
MOQ: 1 set
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Price: Negotiation
Model Number: Custom design
Port: Tianjin China
Sling Type: Wire Rope Or Cable
Grooving Type: LBS Groove
Specifications: according to customer requirements
Application: Oil, Crane, Mine, Port......
Color: According To Customer Demand
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OEM Offshore Marine Windlass Winch For Scientific Research Ship

OEM Offshore Marine Windlass Winch For Scientific Research Ship



Processing equipment: CNC machining center
Rotation Direction: Left or Right

Product material:
Carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460,15CrMo,20GrMo, 42GrMo, etc

Product application:

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc


Technical parameters and application:

No:Wire diameter(mm):Rotation directionMain drum
diameter(mm)
Main drum length(mm)Application
18 10 13Lefthand,Righthand430763The oil workover rig winch,
Towing winch
Tower crane
213 18 20Lefthand,Righthand6231144Engineering winch,
Lifting winch,Crawler crane
322 25 26Lefthand,Righthand7301220Oil workover rig ,
Logging Winch
418 22 32Lefthand,Righthand6701240Drilling Rig Winch, drawworks
528 32 36 40Lefthand,Righthand560630Rotating Drilling Rig winch,
Lifting equipment
626 28 32 45Lefthand,Righthand760 11461970 1765

Offshore Crane,
Marine crane,Mooring winch

......

Product advantage:
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove systemmakes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

Product structure:

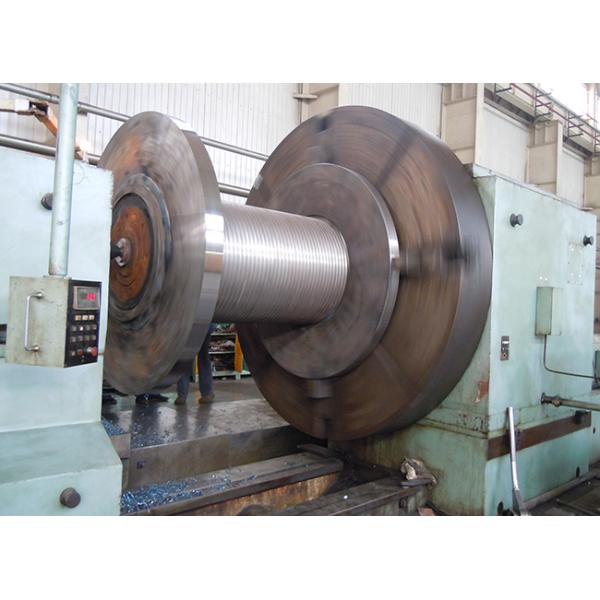

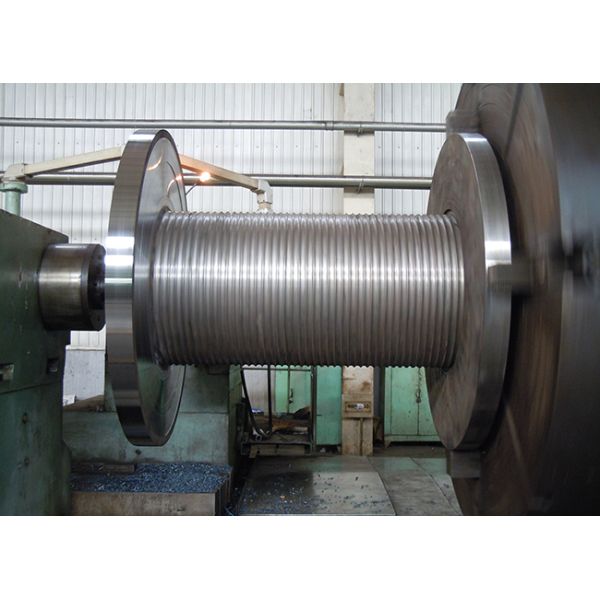

Integral wire rope LBS groove drum: the rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Our service:
The warranty starts from the date of BL (AWB) and lasts for 12 months.
We can provide on-site installation and commissioning services according to your requirements. Details and pricing of the services will be subject to the specially signed foreign technical service contract.
When failure occurs, please send a description of the failure in words and pictures to us. We will respond within 24 hours after receipt of your notice, and give solution proposals within 48 hours.
