overview
| Product name | wall cleaning winch |
| Drum design | LBS groove |
| Usage | construction or building |
| Function | lifting |
| Colour | gray or customer |
| Parameter | as your usage condition |
| Rope capacity | 5-100M |
Parameter for refer:can design as requirement
| Model | Layer plly force (T) | Rope speed | Drum bottom diameter | Difference of working pressures(Mpa) | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power |
| LBSOF1-10 | 30 | 0-35 | 305 | 15.9 | 65 | 15 | XH2-420 D51 |
| LBSOF1-20 | 50 | 0-40 | 380 | 16.3 | 70 | 20 | XH3-900 D240 101 |
| LBSOF1-30 | 80 | 0-40 | 470 | 15.6 | 100 | 24 | XH5-1800 D240101 |
| LBSOF1-40 | 100 | 0-40 | 470 | 16 | 90 | 28 | XH6-2000 D240 101 |
| LBS0F1-50 | 120 | 0-30 | 600 | 17.3 | 175 | 30 | XH6-3000 D240101 |
| LBSOF1-60 | 150 | 0-30 | 640 | 17.8 | 143 | 38 | XH7-4300 D240101 |
| LBS OF1-70 | 200 | 0-25 | 660 | 17.8 | 150 | 40 | XH8-900d240101 |
Design advantage of us :
Special spiral groove of LBS design to make the rope work smoontly
in its layer and trace can not be crushed or pinched by the up
layer rope that is imprtant in the heave working condition .Using
that LBS design can improve the wire rope and winch life about 3-5
itmes years than traditional design .
Product specification
Custom-made (according to customer requirements)

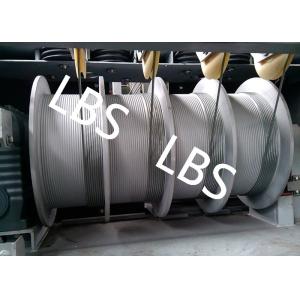

LBS groove drum advantage
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing
rope.
Product features
1. The fixing of the steel rope: adding PT screws to the drum, more
security measures than the general cable fixing method, can
effectively prevent the cable from falling off, and has good
strength and safety.
2. Drum drive mode: use star gear shaft and drive plate directly
drive drum, can easily or easily replace the cable or exchange
cable direction.
3. Electromagnetic brake: use DC electromagnetic brake, choose
advanced brake block, when power failure, electromagnetic brake
immediately automatic brake, never slide, safe and reliable.
4. Gearbox: by casting ductile iron, malleable, not easy to break,
and then by CNC computer composite machining, high precision, small
resistance; and the world's top new bearings, bearings and long
service life, low resistance, low transmission noise.
5. Special motor: E class insulation, winch special grade motor,
starting torque, inertia is small, can be used frequently for a
long time.
6. Airframe mounting: a multipurpose rack made of high quality
steel stamping, which can be used on hangers, elevators, and steel
beams
Product advantage
Top quality with competitive price.
Compact structure and reasonable design
Safe and reliable function
Highly efficient, constant operating torque motor.
Smooth running over the entire speed range.
