| Categories | Nickel Alloy Tube |
|---|---|
| Brand Name: | Yuhong |
| Model Number: | Incoloy 800H Tube |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | China |
| MOQ: | 100kgs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons per month |
| Delivery Time: | 10-15 DAYS |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Standard: | ASTM B407 |
| Material: | Incoloy 800H (N08810) |
| Pakage: | PLY-WOODEN CASE OR PALLET |
| Usage: | Construction Structure, super heater, Chemical industry, heater exchange, Oil Gas Sewage Transport |
| Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Application: | Boiler, heat Exchanger |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

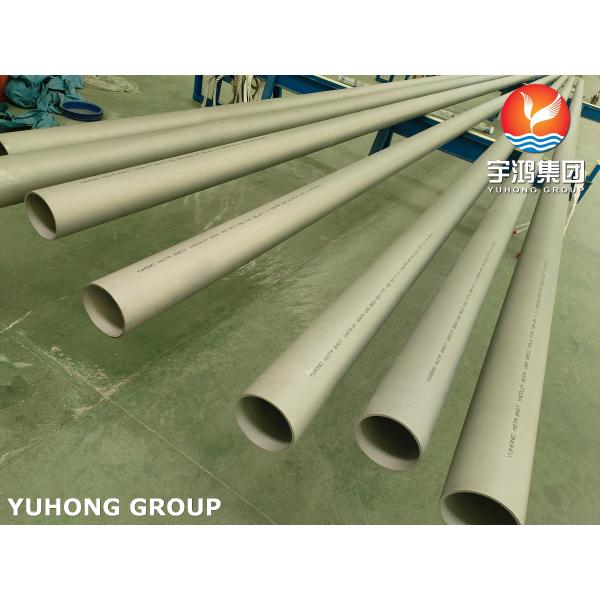

ASTM B407 Incoloy 800H Cooper Nickel Alloy SMLS Bolier Tube
Incoloy 800H material can be described as a nickel-chromium alloy and is part of the 800 series family of alloys.Incoloy 800H tubing has a number of properties found in other 800 series alloy tubing.Some of the key properties of Incoloy 800H tubing are resistance to prolonged exposure to elevated temperatures, oxidation, vulcanization, and carburization.Incoloy 800H tubing is also known for its excellent high temperature corrosion resistance.
Inconel 800H pipe is also known for its excellent resistance to high temperature corrosion. Creep and fracture properties are enhanced at temperatures above 600 degrees Celsius by the addition of carbon and annealing of Inconel 800H tubing.ASTM B407 UNS N08810 material is highly machinable, so it can be machined by standard procedures.
Specifications
| Seamless Pipe / Tubing | Welded Pipe / Tubing | |
| Incoloy 800 | ASTM B 407 / 163 | ASTM B 514 / 515 |
| ASME SB 407 / 163 | ASME SB 514 / 515 | |
| Incoloy 800H | ASTM B 407 / 163 | ASTM B 514 / 515 |
| ASME SB 407 / 163 | ASME SB 514 / 515 | |
| Incoloy 800HT | ASTM B 407 / 163 | ASTM B 514 / 515 |
| ASME B 407 / 163 | ASME SB 514 / 515 | |
| Incoloy 825 | ASTM B 423 / 163 | ASTM B 705 / 704 |
| ASME SB 423 / 163 | ASME SB 705 / 704 |
Chemical Composition
| Alloy 825 | Ni | Fe | Cr | Mb | Cu | Ti | C | Mn | S | Si | Al |
| 38.0-46.0 | 22.0 min | 19.5-23.5 | 2.5-3.5 | 1.5-3.0 | 0.6-1.2 | 0.05 max | 1.0 max | 0.03 max | 0.5 max | 0.2 max | |
| Alloy 800 | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.15-0.60 | 0.15-0.60 | 0.1 max | 1.5 max | 0.015 max | 1.0 max | ||
| Alloy 800H | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.15-0.60 | 0.15-0.60 | 0.05-0.10 max | 1.5 max | 0.015 max | 1.0 max | ||
| Alloy 800HT | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si | |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | 0.75 max | 0.25-0.60 | 0.85-1.20 | 0.06-0.10 max | 1.5 max | 0.015 max | 1.0 max |
Cooper Nickel Alloy Bolier Tube
| Outside Diameter | 10.3-426mm |
| Wall Thickness | 1.24-40.49mm |
| Length | Up to 25m |
| Standard | ASTM B163, ASTM B167, ASTM B407, ASTM B444, ASTM B622, ASTM B677, ASTM B829,etc. |
| Hastelloy Series | Hastelloy B(UNS N10001), Hastelloy B-2(UNS N10665), Hastelloy B-3(UNS N10675), Hastelloy C-4(UNS N06455), Hastelloy C-22(UNS N06022), Hastelloy C-276(UNS N10276), Hastelloy C-2000(UNS N06200), Hastelloy G-30(UNS N06030), Hastelloy G-35(UNS N06035). |
| Haynes Series | Haynes 230(UNS N06230), Haynes 556(UNS R30556). |
| Inconel Series | Inconel 600(UNS N06600), Inconel 601(UNS N06601), Inconel 617(UNS N06617), Inconel 625(UNS N06625), Inconel 690(UNS N06690), Inconel 718(UNS N07718). |
| Incoloy Series | Incoloy 020(UNS N08020), Incoloy 800(UNS N08800), Incoloy 800H(UNS N08810), Incoloy 800HT(UNS N08811), Incoloy 825(UNS N08825), Incoloy 925(UNS N09925). |
| Monel Series | Monel 400(UNS N04400). |
| Nickel Series | Nickel 200(UNS N02200), Nickel 201(UNS N02201). |
| High Temperature Alloys | GH2132,GH3030,GH3039,GH3128,GH3044,GH4080A. |
| Delivery Condition | Pickled&Annealed, Polished, Bright Annealed. |
| Technique | Seamless |
