| Categories | Hydraulic Pump Excavator Parts |
|---|---|
| Brand Name: | Belparts |
| Model Number: | EC230B EC240 EC240B |
| Place of Origin: | Made in china |
| MOQ: | 1PCS |
| Price: | Negotiated price |
| Payment Terms: | T/T, trade assurance,PayPal |
| Supply Ability: | 1000PCS |
| Delivery Time: | 1~7 days |
| Packaging Details: | Wooden case |
| Model: | EC230B EC240 EC240B |
| part number: | SA 1142-00531 SA 8230-14650 VOE 14343114 |
| Warranty: | 1 Year |
| Texture: | Steel |
| Part name: | Hydraulic pump |
| Company Info. |
| GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

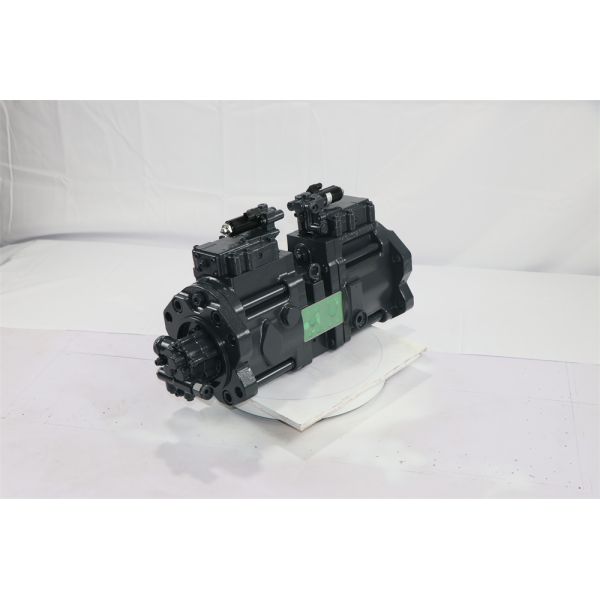

Belparts excavator main pump EC230B EC240 EC240B hydraulic pump SA 1142-00531 SA 8230-14650 VOE 14343114
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EC200 EC210 EC210B
Part number:SA 1142-00531 SA 8230-14650 VOE 14343114
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | EC200 EC210 EC210B |
| Part number | SA 1142-00531 SA 8230-14650 VOE 14343114 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| SA 1142-00531 | Pump more | 1 | ||
| 1 | SA 8230-14650 | Piston | 2 | |
| 2 | SA 14500003 | Piston | 9 | |
| 3 | SA 14500002 | Seat | 9 | |
| 4 | SA 8230-28580 | Cylinder | 1 | |
| 5 | SA 8230-28560 | Block | 1 | |
| 6 | SA 14500001 | Plate | 1 | |
| 7 | SA 8230-28590 | Cylinder | 1 | |
| 8 | SA 8230-28560 | Block | 1 | |
| 9 | SA 14500000 | Plate | 1 | |
| 10 | SA 8230-09800 | Plate | 2 | |
| 11 | SA 8230-30540 | Plate | 1 | |
| 12 | SA 14500012 | Bushing | 1 | |
| 13 | SA 7223-00450 | Check valve more | 2 | |
| 14 | SA 7223-00500 | Seat | 1 | |
| 15 | SA 7223-00520 | Guard | 1 | |
| 16 | SA 9676-73200 | Ball more | 1 | |
| 17 | SA 7223-00460 | Check valve | 2 | |
| 18 | SA 7223-00500 | Seat | 1 | |
| 19 | SA 7223-00540 | Guard | 1 | |
| 20 | SA 9676-73200 | Ball more | 1 | |
| 21 | SA 8230-09020 | Valve more | 1 | |
| 22 | SA 8230-09100 | Shaft | 1 | |
| 23 | SA 8230-09070 | Shaft | 1 | |
| 24 | SA 8230-09660 | Coupling | 1 | |
| 25 | SA 8230-26610 | Roller Bearing more | 2 | |
| 26 | SA 8230-26700 | Needle Bearing more | 2 | |
| 27 | SA 8230-14530 | Spacer | 4 | |
| 28 | SA 8230-09370 | Plate | 2 | |
| 29 | SA 8230-09680 | Bushing more | 2 | |
| 30 | SA 8230-09710 | Spring | 18 | |
| 31 | SA 8230-09670 | Spacer | 2 | |
| 32 | SA 8230-21920 | Plate | 2 | |
| 33 | SA 8230-08940 | Support | 2 | |
| 34 | SA 8230-09350 | Cover | 1 | |
| 35 | SA 8230-08930 | Body | 1 | |
| 36 | SA 8230-08980 | Valve assembly | 1 | |
| 37 | SA 8230-09690 | Bolt | 8 | |
| 38 | SA 9016-10804 | Bolt more | 4 | |
| 39 | SA 9415-11021 | Plug more | 3 | |
| 40 | SA 9415-11051 | Plug more | 4 | |
| 41 | SA 7242-11040 | Plug more | 21 | |
| 42 | SA 8230-09790 | Pin | 2 | |
| 43 | SA 8230-09320 | Pin | 1 | |
| 44 | SA 7223-00570 | Pin | 1 | |
| 45 | SA 8230-09250 | Piston | 2 | |
| 46 | SA 8230-09640 | Stop | 2 | |
| 47 | SA 8230-09650 | Stop | 2 | |
| 48 | SA 9511-22035 | O-ring more | 2 | |
| 49 | SA 9511-22095 | O-ring more | 1 | |
| 50 | SA 9511-22145 | O-ring more | 4 | |
| 51 | SA 9511-12008 | O-ring more | 16 | |
| 52 | SA 9511-12011 | O-ring more | 8 | |
| 53 | SA 9511-12024 | O-ring more | 4 | |
| 54 | SA 9511-12018 | O-ring more | 2 | |
| 55 | SA 8230-26900 | Seal more | 1 | |
| 56 | SA 9566-10180 | Ring | 2 | |
| 57 | SA 9566-20350 | Ring | 2 | |
| 58 | SA 8230-25620 | Nut | 2 | |
| 59 | SA 9111-12000 | Nut more | 2 | |
| 60 | SA 8230-25980 | Ring | 2 | |
| 61 | SA 8230-26430 | Plate | 2 | |
| 62 | SA 7223-00660 | Spring Pin | 4 | |
| 63 | SA 8230-25450 | Eye Bolt | 2 | |
| 64 | SA 8230-26780 | Bolt | 2 | |
| 65 | SA 8230-09700 | Bolt | 2 | |
| 100 | SA 8148-13080 | Sealing Kit more | 1 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) | L1 | L | A | d | D | Weight (kg) | ||||
Rated | Max | Min | Rated | Max | ||||||||||
Intet | Outlet | |||||||||||||
| CBN-F520-BF** | 20 | 20 | 25 | 600 | 2500 | 3000 | 92 | 66.5 | 134 | 48 | 65 | 25 | 20 | 5.1 |
| CBN-F525-BF** | 25 | 68.5 | 138 | 5.3 | ||||||||||
| CBN-F532-BF** | 32 | 93 | 69 | 139 | 30 | 5.6 | ||||||||
| CBN-F540-BF** | 40 | 72 | 145 | 51 | 76 | 35 | 5.9 | |||||||
| CBN-F550-BF** | 50 | 76 | 153 | 25 | 6.3 | |||||||||
| CBN-F563-BF** | 63 | 81.5 | 164 | 6.8 | ||||||||||
