Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai

Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai

Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai
Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai
Categories Hydraulic Pump Excavator Parts
Brand Name: Belparts
Model Number: R480LC-9 R520LC-9 R370LC-7
Place of Origin: Made in china
MOQ: 1PCS
Price: Negotiated price
Payment Terms: T/T, trade assurance,PayPal
Supply Ability: 1000PCS
Delivery Time: 1~7 days
Packaging Details: Wooden case
Model: R480LC-9 R520LC-9 R370LC-7
Warranty: 1 Year
Weight: 40Kg
Condition: 100% New
Texture: Steel
Part name: Hydraulic pump/Main pump
Quality: High quality
Contact Now
Company Info.
GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai

Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai


Product Description

Product name

Excavator Hydraulic pump

Place of Origin:

China(mainland)

Model:

R480LC-9 R520LC-9 R370LC-7

Part number:

31QB-10011 31NA-10020

MOQ:

1 PCS

Payment term:

T/T, trade assurance,PayPal

Delivery time:

Within 1~7 days after receiving the payment

Packing:

Standard exporting packing or as required

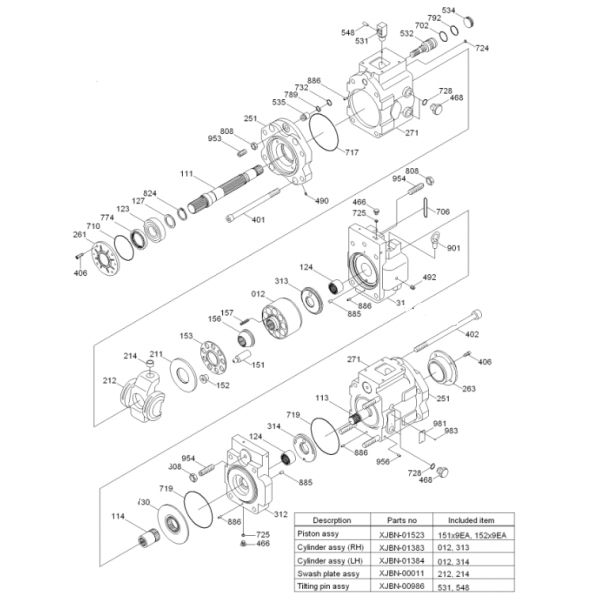

#Part NoPart NameQty.Price request
*31QB-10011MAIN PUMP
*-1,-2,-3,-4		1 
*-1@FUEL INJECTION PIPE & NOZZLE1 
111XJBN-00976SHAFT-DRIVE(F)1 
113XJBN-00977SHAFT-DRIVE(R)1 
114XJBN-00572COUPLING-SPLINE1 
123XJBN-00571BEARING-ROLLER2 
124XJBN-00978BEARING-NEEDLE2 
127XJBN-00569SPACER-BEARING3 
130XJBN-00568BOOSTER1 
N012XJBN-00680BLOCK-CYLINDER2 
N151XJBN-00681PISTON18 
N152XJBN-01522SHOE18 
153XJBN-00683PLATE-SET2 
156XJBN-00564BUSHING-SPHERICAL2 
157XJBN-00541SPRING-CYLINDER18 
211XJBN-00023PLATE-SHOE2 
N212XJBN-00012PLATE-SWASH2 
N214XJBN-00013BUSHING-TILTING2 
251XJBN-00560SUPPORT-S.P.2 
261XJBN-00025COVER(FR)-SEAL1 
263XJBN-00979COVER(RR)-SEAL1 
271XJBN-01594CASING-PUMP2 
311XJBN-00559COVER-VALVE(F)1 
312XJBN-00558COVER-VALVE(R)1 
N313XJBN-01387PLATE(R)-VALVE1 
N314XJBN-01388PLATE(L)-VALVE1 
401XJBN-00028SCREW4 
402XJBN-00555SCREW-HEX SOC HD4 
406XJBN-00355SCREW-HEX SOC HD8 
466XJBN-00356PLUG4 
468XJBN-00031PLUG4 
490XJBN-00032PLUG28 
492XJBN-00234PLUG1 
N531XJBN-00981PIN-TILTING2 
532XJBN-00703PISTON-SERVO2 
534XJBN-00034STOPPER(L)2 
535XJBN-00035STOPPER(S)2 
N548XJBN-00360PIN-FEED BACK2 
702XJBN-00040O-RING2 
706XJBN-00982O-RING1 
710XJBN-00983O-RING2 
717XJBN-00984O-RING2 
719XJBN-00985O-RING3 
724XJBN-00902O-RING15 
725XJBN-00903O-RING10 
728XJBN-00905O-RING4 
732XJBN-00047O-RING2 
774XJBN-01595SEAL-OIL1 
789XJBN-00049RING-BACK UP2 
792XJBN-00050RING-BACK UP2 
808XJBN-00051NUT4 
824XJBN-00052RING-SNAP2 
885XJBN-00053PIN-22 
886XJBN-00054PIN-SPRING5 
901XJBN-00055BOLT-EYE2 
953XJBN-00056SCREW-SET2 
954XJBN-00553SCREW-SET2 
956XJBN-01181SCREW-SET8 
981XJBN-00156NAME PLATE1 
983XJBN-00455PIN2 
*-2@FUEL INJECTION PIPE & NOZZLE
SEE 4020,FRONT		1 
*-2@FUEL INJECTION PIPE & NOZZLE
SEE 4030,REAR		1 
*-3@FUEL INJECTION PIPE & NOZZLE
SEE 4040		1 
S011XJBN-01523PISTON ASSY
SEE ILLUST		2 
S013XJBN-01383CYLINDER ASSY-RH
SEE ILLUST		1 
S014XJBN-01384CYLINDER ASSY-LH
SEE ILLUST		1 
S030XJBN-00011SWASH PLATE ASSY
SEE ILLUST		2 
S530XJBN-00986TILTING PIN ASSY
SEE ILLUST		2 
N@FUEL INJECTION PIPE & NOZZLEAR 


Model
Nominal
displacement
(ml/r)		Pressure(MPa)Speed(r/min)
Volumetric
efficiency
(≥%)		L1
Weight
(kg)

Rated
Max
Min.
Rated
Max
CBXM-F10-AT**102025800200025009272921.9
CBXM-F16.8-AT**16.880.5100.52.2
CBXM-F2O-AT**2084.5104.52.3


Model
Nominal
displacement
(ml/r)		Pressure(MPa)Speed(r/min)
Volumetric
efficiency
(≥%)
Weight
(kg)

Rated
Max
Optimum speed
Speed range
KS55-G141420251500～2500600～300092
KS55-G171720251500~2500600～300092
