KG-5560DC28.8 Brushless DC Motor 14A 110000RPM Used For Vacuum Cleaner

Brushless DC Motor 14A 110000RPM Used For Vacuum Cleaner KG-5560DC28.8​

Lead time:

Product Description

Essential details

Brand Name: Go-Gold

Model Number: KG-5560DC28.8

Feature: Vacuum Cleaner

Rated Voltage: 28.8V

Operation voltage range: 22.7 ‐35V

Rated Speed: 110000RPM

Rated Power: 400W

Max Air Power: ≥140W

Warranty: 3years

Place of Origin: Guangdong, China

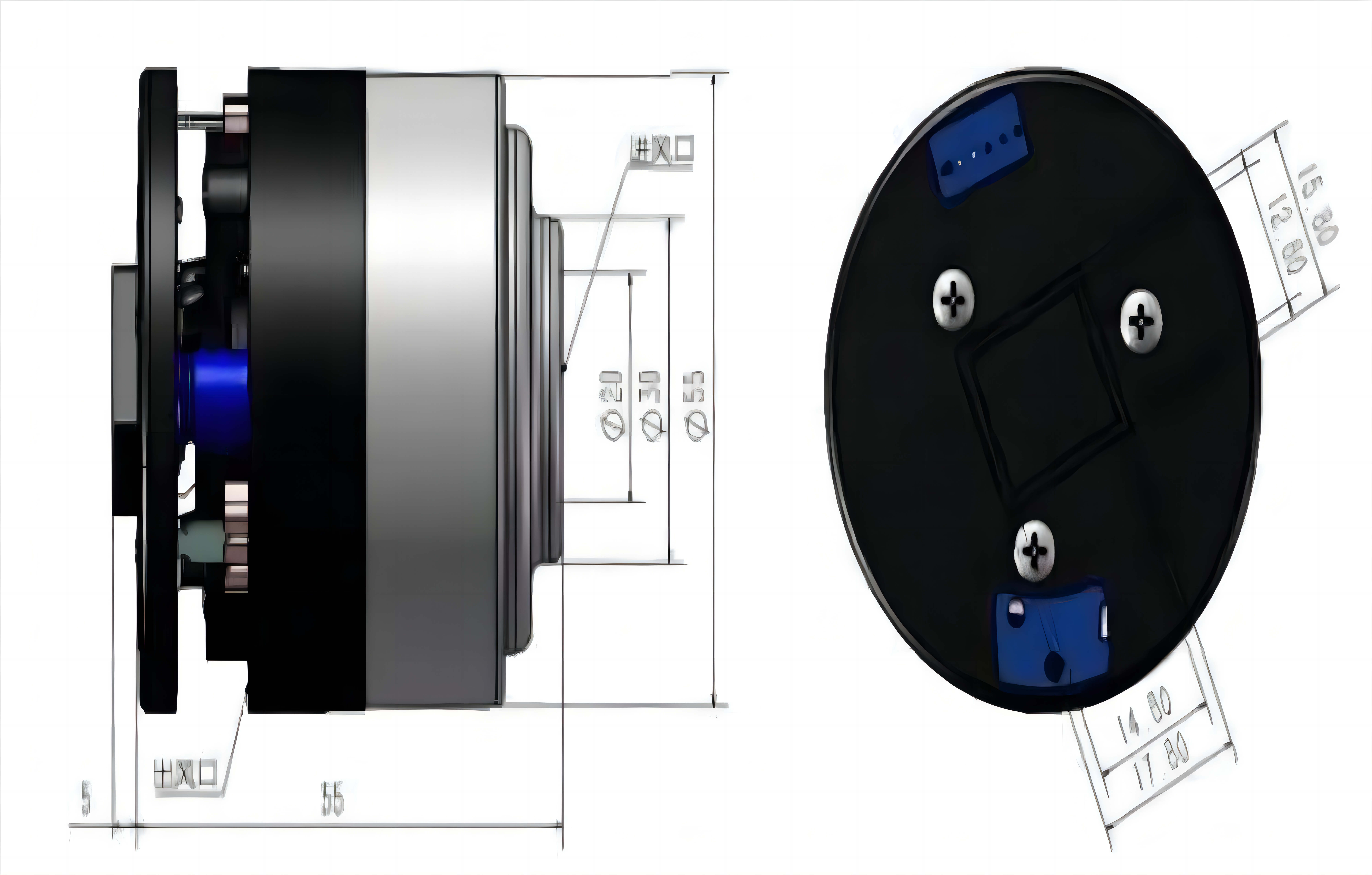

Drawing

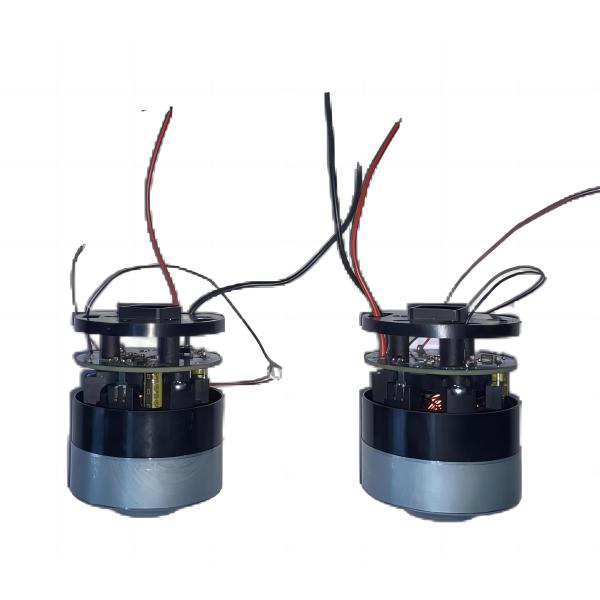

Sample

Due to their superior eficiency, excellent controllability, and higher speed capabilities, brushless DC motors are one of the mostwidely used DC motors. These characteristics make it suitable for many kinds of applications in a larae variety of industries.

Nowadays, DC motors are nearly everywhere and have a solid role in manufacturing and industrial applications as actuators and in CNCmachine tools. Similarly, its eficiency has made it a popular choice for white goods, computer hard drives, electric and hybrid vehicles, andeven medical equipment.

A brushless DC motor is composed of two main parts: the rotor and the stator.

Stator: The stator caries the windings of the motor unlke brushed DC motors. cols are not in the rotor but are wound and fxed to the stator. Wiresare wrapped around laminated steel arms or teeth, forming stator windings.

Rotor: The rotor consists mainly of a shaft and a peranent magnet with altemating magnetic poles. The number of poles in the rotor depends onthe application. Having more poles can improve torque but reduce maximum speed.

• Higher efficiency and reliability
• Lower acoustic noise
• Smaller and lighter
• Greater dynamic response
• Better speed versus torque characteristics
• Higher speed range
• Longer life

Our Adventage

1.With the best after-sale service to satisfy every customer.

2.With the good principle "quality and reputation always come first".

3.With the professional technical guidance and strong development ability.

4.With Advanced automatic machine and production line for ensure the high efficiency ,excellent quality and favorable cost.

5.Our company is specialized in the production of motor with its own factory with 8 years of production experience.

Our company specialized in manufacturing in various of Universal motor, DC motor, Induction motor and Brushless motor that are widely applied to household appliances, intelligent home, electric tools, medical equipment etc.

6.Go-Gold Motor is a company that provides professional technical guidance and best after-sale service to satisfy every customer.

Shenzhen Go-Gold Motor Co., Ltd
