Smart Home Motor 24V 350mA 1000RPM 100W Low Nosie High Torque Go-Gold

Smart Home Motor 24V 350mA 1000RPM 100W Low Nosie High Torque Go-Gold

Essential Detials

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-2838GM24

Usage: Sweeping Robot

Type: Gear Motor

Rated Torque: 17 kg.cm

Rated Speed: 1000RPM

Rated Current: 350mA

Product Name: Sweeping Robot Motor Gear Motor

Certification: ISO

Rated Voltage: 24V

Keywords: Sweeping Robot Motor

Noise: Low

Lead Time

Performance specification

Dimensions

Motor Application

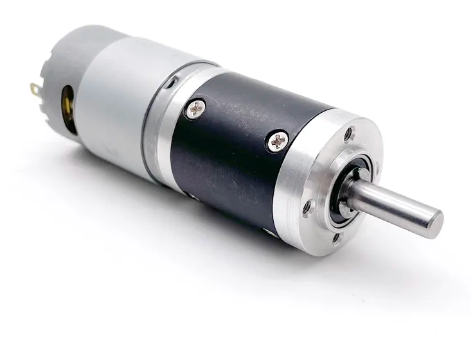

Motor Picture

Definition of Gear Motor

Gear Motor refers to the integration of reducer and motor. This integrated body is often also called a gear motor. It is usually integrated and assembled by a professional reducer manufacturer and then supplied as a complete set with the motor.

Working Principle of Gear Motor

Gear Motors generally use motors, internal combustion engines or other high-speed running power to drive large gears through the small gears on the input shaft of the gear reducer achieve a certain reduction purpose. They adopt a multi-stage structure, which can greatly reduce the speed. To increase the output torque of the reduction motor, its core function of "power-increasing deceleration" is to use gear transmission at all levels to achieve the purpose of deceleration. The reducer is composed of gear pairs at all levels.

Gear Motor Classification

Gear Motor can be divided into the following types according to their transmission methods and structural characteristics:

• Direct coupling gear motor: It is composed of an electric motor and a gearbox. The output shaft is coaxial with the electric motor to meet the needs of high torque and low speed operation.

• Reduction gear motor: It consists of an electric motor, a reducer and an output shaft. It can provide different output speeds and torques and is suitable for various load conditions.

• Planetary gear motor: It consists of a sun gear, a planet gear and an internal ring gear. It outputs power through a sleeve or output shaft. It is small in size and has high transmission efficiency.

• Helical gear motor: It consists of a helical gear and a vertical output shaft, which can achieve high-power transmission and smooth operation.

The Role of Gearbox in Gear Motor

• Acceleration and deceleration are often referred to as variable speed gearboxes.

• Change the transmission direction. For example, we use two gears to transmit the force vertically to another rotation axis.

• Change the rotational torque. Under the same power conditions, the gear that rotates faster achieves the purpose of separating the engine from the load.

• Clutch function: We can separate the engine from the load by separating the two originally meshed gears. Such as brake clutch, etc.

• Distribute power. For example, we can use one engine to drive multiple slave shafts through the main shaft of the gearbox, thereby realizing the function of one engine driving multiple loads.
