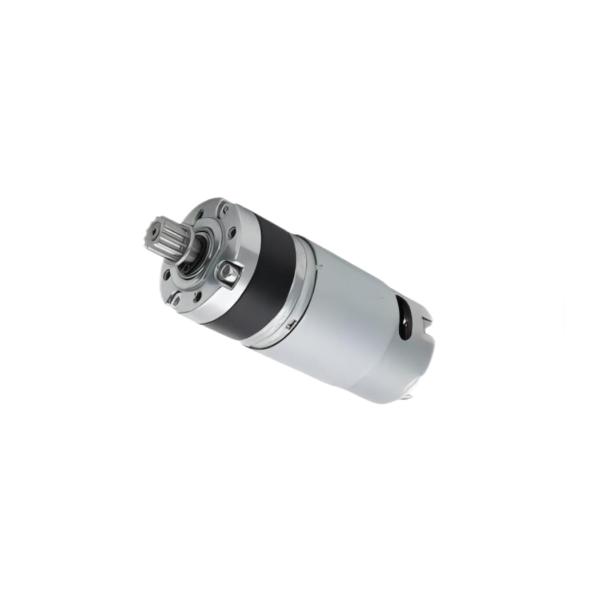

Electric Tools Motor 12V 0.7-2.4A Gear Electric Drill Motor GO-GOLD

Electric Tools Motor 12V 0.7-2.4A Gear Motor For Electric Drill GO-GOLD

Product Description

Lead Time

Essential Details

Application: Electrical Tools

Model Number: KG-2857GM12

Warranty: 3 Years

Rated Power: Customized

Key Word: Gear Motor

Rated Speed: 1-500RPM

Stall Current: 2.7A-15.0 A

Rated Torque: 0.64-30kg.cm

Place of Origin: Guangdong, China

Rated Voltage: 12V

Rated Power: 2.05W

Continuous Current: 0.7-2.4A

Efficiency: 78%

Size: 36*93mm

Drawing

Sample

Application

Motors can be constructed in several different physical configurations. In the conventional (also known as inrunner) configuration, the permanent magnets are part of the radially center core. In the outrunner (or external-rotor) configuration, the radial-relationship between the coils and magnets is reversed. The stator coils in the outrunner configuration form the center core of the motor, while the permanent magnets spin within an overhanging rotor which surrounds the core.

A gearmotor (or geared motor) is a small electric motor (AC induction, permanent magnet DC, or brushless DC) designed with an integral (non-separable) gear reducer (gearhead) attached.

The end shield on the drive end of the motor is designed to provide a dual function. The side facing the motor provides the armature/rotor bearing support and a sealing provision through which the integral rotor or armature shaft pinion passes. The other side of the motor end shield provides multiple bearing supports for the gearing itself, and a sealing and fastening provision for the gearhousing.

Significance Of Back EMF

When the motor is operating then the concept of generator comes into the picture i.e., whenever the flux linking with the conductor changes then there will be an induced emf in the conductor. Here, the flux produced by the poles will be stationary and constant and because of the motor principle, the armature starts rotating.

Because the armature starts rotating the flux produced by the main field will be cut by the armature conductor and therefore there will be an induced emf in the armature conductor according to the generator principle.

We know that the direction of the induced emf produced by the motor is opposite to the applied voltage. But the magnitude of the induced emf will be similar to that of the induced emf of the generator.

Summarize

• gear motor combined with international technical requirements of manufacturing, with a high scientific and technological content.
• compact structure, reliable and durable, high overload capacity.
• low energy consumption, superior performance, reducer efficiency of more than 95%.
• small vibration, low noise, high energy saving, the selection of high-quality steel materials, steel cast iron box, high-end gear motor using special aluminum alloy die-casting box, gear surface through high-frequency heat treatment.
• after precision machining to ensure positioning accuracy, gear reducer gear drive assembly of the gear motor can be configured with all kinds of mainstream motors in the market, forming a new product features of mechatronics, modular structure, and fully ensure the quality characteristics of product use.
• the product adopts the series, modular design idea, has a wide range of adaptability, can be combined with various types of motor, installation position and structural scheme, and the gear reducer can be selected according to the actual needs of any speed and various structural forms.

Shenzhen Go-Gold Motor Co., Ltd
