Hot Rolled Prefab Steel Warehouse For Slope Roof With Strong Load Capacity

Main Parameters Of Steel Structure Warehouse

Length: The total length of the plant needs to be determined. Whether there is a requirement for the column spacing, the column spacing is generally 6m, but it can also be 7.5m, 9m, or 12m;

Span: generally 9-36m, with 3m as a multiple, when the span is large, it is necessary to determine the design of several spans;

Height: indoor floor to the intersection of steel column axis and steel beam axis (clear height of plant), without lifting the crane should be 4.5-9m; when there is a crane, the specific model and lifting height of the crane should be determined;

Whether the roof and walls need to be insulated.

Main Components

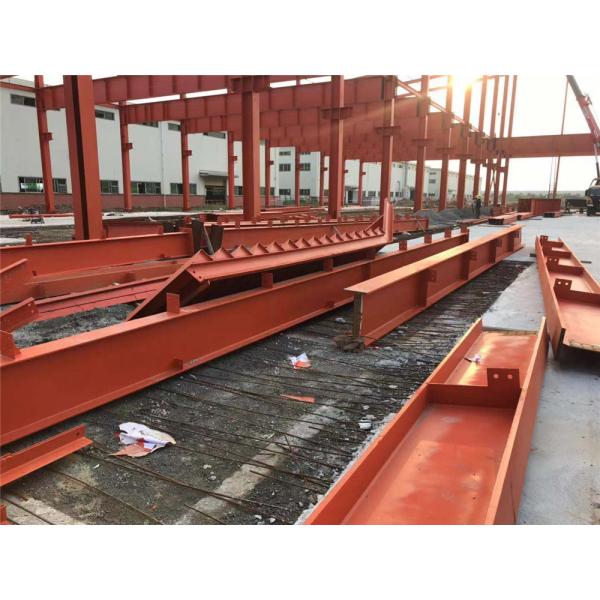

The main components of steel warehosue include steel column, steel beam, wind-proof column and crane beam.

Steel column: It can be a H-shaped steel column with a constant cross-section or a H-shaped steel column with a variable cross-section.

It is easy to manufacture, safe and reliable, and the main material is Q235B or Q345B.

When the horizontal span of the steel workshop building does not exceed 15m and the column height does not exceed 6m, the steel column should be made of H-shaped steel with equal cross section.

When the span of the factory building is greater than 15m and the column height exceeds 6m, the variable-section steel column should be adopted.

1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.

2. Fasteners are packed in wooden cases

3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.

4. Container type: 40ft HC, 20ft GP
