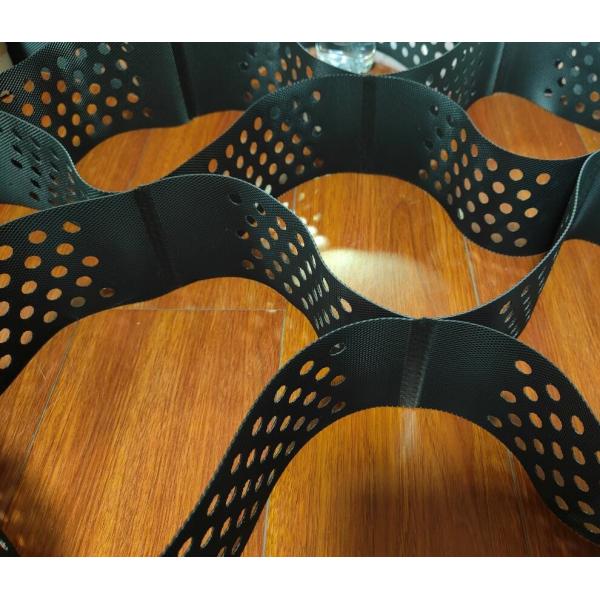

ASTM Standard HDPE Geocell 50mm Height Geo Cell for Road Construction

ASTM Standard HDPE Geocell 50mm Height Geo Cell for Road Construction

ASTM Standard HDPE Geocell 50mm Height Geo Cell for Road Construction
ASTM Standard HDPE Geocell 50mm Height Geo Cell for Road Construction
Categories HDPE Geocell
Brand Name: Geomax
Model Number: 150-445
Certification: CE
Place of Origin: ANHUI CHINA
MOQ: 1000 ㎡
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Delivery Time: 10-20 days
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Material: HDPE
Type: 150-445
Color: Black
Welding space: 445mm
Thickness: 1.5mm
Height: 150
Surface: Perforated
Standard: ASTM
Contact Now
Company Info.
Anhui Hechuang New Synthetic Materials Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM Standard HDPE Geocell 50mm Height Geo Cell for Road Construction


PRODUCT DESCRIPTION

ASTM Standard HDPE Geocell 50mm Height Geo Cell Road Geocells


Product Introduction

Geocell has been paid attention to by engineering circles because of its excellent efficiency, but also from its basic principle.
In the description of its principle, it is described as "a honeycomb three-dimensional confinement system, which can significantly
improve the performance of ordinary filling materials in a wide range of load bearing and insect erosion control applications."
The key principle is the three-dimensional constraint. It is well known that when a car travels in the desert, it makes two deep
ruts, the part of which sinks deeply, and the sides of the ruts rise high. If the car behind continues to follow the rut, the
sunken part will sink further, and the swollen part will rise further, until it ruts against the car's chassis and the sunken rut
covers most of the wheels and stops moving. So, it is because when external load ACTS on the foundation surface, according to the
prandtl's theory and Taylor theory shows: under the action of concentrated load, active zone 1 compression subsidence, and pass
force decomposition to each side to transition zone 2, excessive area passive zone 2 and 3, passive area will be deformation and
uplift without any restrictions.

Specifications


Index PropertiesTest MethodUnitsValues
Material--100% Virgin HDPE
Carbon Black contentASTM D 1603%≥1.5
DensityASTM D 1603g/cm30.935-0.965
Sheet Thickness ± 3%ASTM D 5199mm1.5
Seam Peel StrengthUSACE GL-86-19KN/m≥14.2
Tensile strength at YieldASTM D 1603KN/m≥22
Environmental stress crack resistanceASTM D 1603hrs≥5000
OIT oxidation induction timeASTM D 1603min≥150
TypeGM330GM356GM400GM432GM445GM500GM660GM712
Welding Distance(mm) ± 3%330356400432445500660712
Cell Depth(mm) ± 3%50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%250 x 210260 x 225290 x 260320 x 275315 x 300360 x 300470 x 450510 x 475
Expanded Cell numbers(width×length)10 x 349 x 348 x 348 x 348 x 347 x 345 x 345 x 34
Expanded Section size (width×length) (m) ± 3%2.50 x 7.142.34 x 7.652.32 x 8.842.56 x 9.352.52 x 10.22.52 x 11.222.35 x 15.32.55 x 16.15
Expanded Section Area (m2) ± 5%17.8517.920.523.9425.728.7435.9541.18

Application


SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.


SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.


CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.


RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
