HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating

HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating

HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating
HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating
Categories PoE LAN Transformer
Brand Name: LINK-PP
Model Number: HXB4016HLT
Certification: ROHS,Reach
Place of Origin: China
MOQ: 50pcs
Price: $0.09-$2.3
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6.5million-PCS/Month
Delivery Time: Ships within 1-2 weeks
Packaging Details: Tape and Reel (1 Reel = 350pcs)
Number of Channels/Ports: Single Port
Mounting Style: 24 PIN SMD
PoE Power Rating: 90W
Data Rate: 2.5Gigabit
Length: 17.55 mm
Width: 15.90 mm
Height: 6.00 mm
Breakdown Voltage: 1500Vrms
Winding Configuration: 2wCMIC X FM
Operating Temperature: -40 to +85°C
Contact Now
Company Info.
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating


Features and Benefits of HXB4series Transformers:


  • Supports IEEE 802.3bt PoE standard
  • Single port configuration for streamlined connectivity
  • 2.5 Gigabit data rate for high-speed networking
  • Compact SMD mounting style with 24-pin configuration
  • Built-in safety features with a breakdown voltage of 1500Vrms
  • Operating temperature ranges from -40°C to +85°C
  • Reliable winding configuration (2wCMIC X FM) ensures stable performance

Electrical Specifications @25℃:


Items/Part NumberHXB4016HLTHXB4017HLT
Turns Ratio1CT:1CT1CT:1CT
Media side inductance180uH MIN @100KHz, 0.1Ve180uH MIN @100KHz, 0.1Ve
Insertion Loss-1.0dB MAX @ 1-100MHz
-1.5dB MAX @ 125MHz		-1.0dB MAX @ 1-100MHz
-1.5dB MAX @ 125MHz
Return Loss

-16dB MIN @ 1-40MHz

-(16-10 log10(f/40))dB MIN @ 40<f≤100MHz

-16dB MIN @ 1-40MHz

-(16-10 log10(f/40))dB MIN @ 40<f≤100MHz

PoE (Current Per Pair mA)10001000
Operating Temperature-40°C - +85°C-40°C - +85°C
Isolation (Pri: Sec)1500Vrms1500Vrms
Note90W PoE+90W / Surge DM 3KV

Application:


• Ethernet switches

• Network routers

• Power over Ethernet (PoE) devices

• Industrial automation systems

• Security cameras

• Building management systems

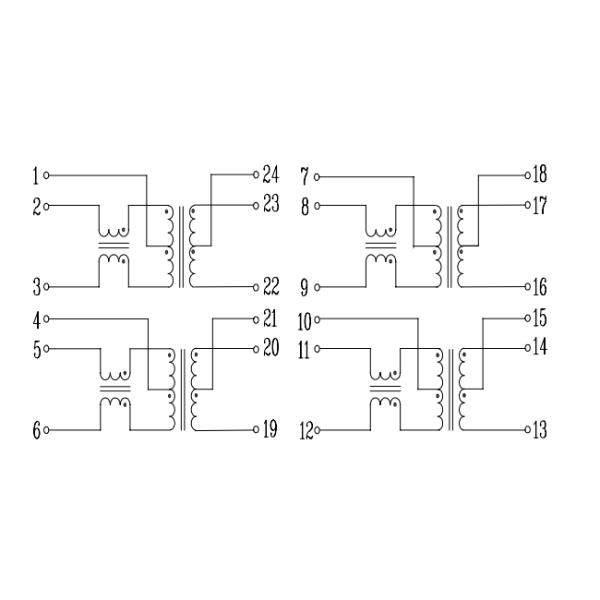

HXB4016HLT HXB4017HLT Schematic:

Product Tags:

HXB4016HLT POE Transformer



HXB4017HLT LAN Transformer



IEEE 802.3bt PoE Ethernet Transformer

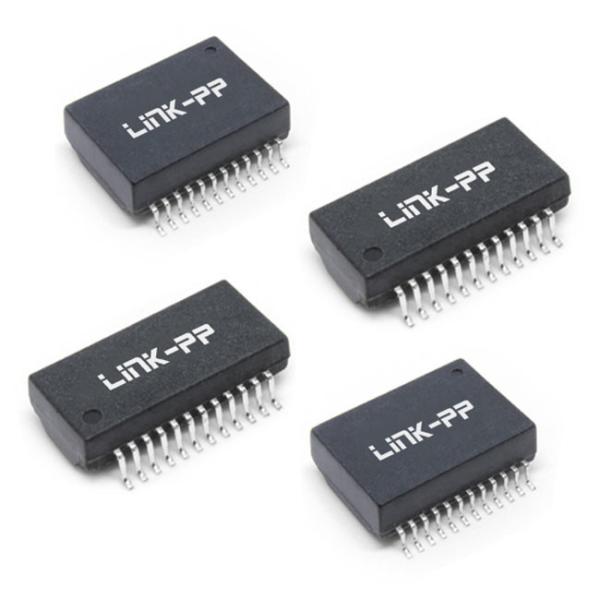

Buy HXB4016HLT HXB4017HLT LAN Magnetic Transformer with 90W PoE Rating at wholesale prices
