Wheel Motor Replacement For Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503

Categories Low Speed High Torque Hydraulic Motor
Brand Name: HANJIU
Model Number: BMER-3-240
Certification: CE, ISO9001
Place of Origin: China
MOQ: 100 Pieces
Price: 175 usd/pc
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Delivery Time: 45 - 55 work days
Packaging Details: Box, carton, pallet
Product: Low Speed, High Torque (LSHT) Motor
Model No.: BMER-3-240
Displacement: 240cc
Flange: 4 bolt Wheel mount
Shaft: tappered shaft
Port: SAE ports
Rotation: Standard
Color: Black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

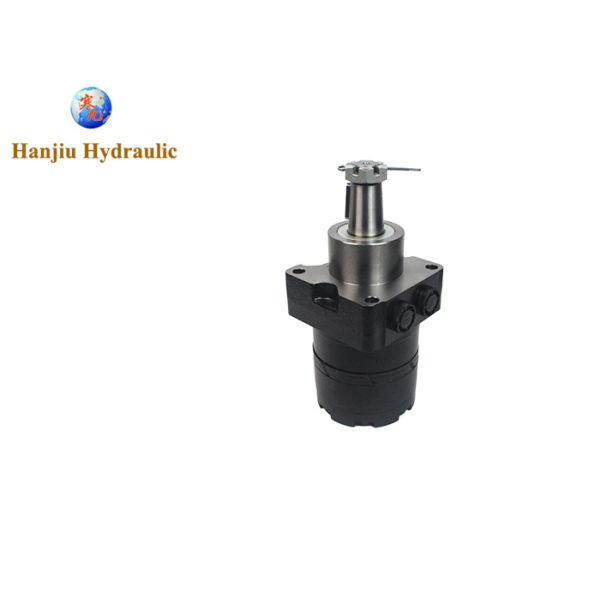

Wheel Motor Replacement For Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503


Wheel Motor Replacement for Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503


Quick review:

Producttorqmotor, wheel drive motor
Model No.BMER-2-250-WS-T31-R
Displacement250CC
Flange4 bolts wheel shaft, 147.6mm
Shafttappered shaft
Port
7/8-14 UNF
RotationStandard
ColorBlack
BrandHanjiu

Replaces part number:
For Exmark 1-523328 1523328
For Toro 103-6988 1036988
For Oregon 27-500 27500
For Parker TF0240US081AADD
For Stens 025-503 025503

Application:
Lazer Z Serial No. 102,000-370,000 52", 60" and 72" decks;
Lazer Z HP Serial No. 160,000-370,000, 44", 48" and 52" decks, Z 500's Z Master, 2004 & Newer 60" and 72" ;
Z 250's Z Master 742XX Series, 1999-2040, 52", 62" and 72" decks


Specification:

TypeBMERBMERBMERBMERBMERBMERBMERBMERBMERBMERBMER
125160200230250300350375475540750
Geometric displacement (cm3/rev.)118156196228257296345371462540745
Max. speed (rpm)cont.360375330290290250220200160140100
int.490470425365350315270240195170120
Max. torque (N•m)cont.32545053062570081090599010859801050
int.38052560071079093010351140118012401180
peak450590750870980112012851360126013801370
Max. output (kW)cont.12.015.015.516.017.518.017.516.514.511.58.0
int.14.017.518.019.020.021.020.019.016.515.010.0
Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
int.24242424242424241917.512
peak27.627.627.627.627.627.627.627.620.520.514
Max. flow (L/min)cont.4560707075808075757575
int.6075858590959590909090


New Design Parker TF0250 wheel mount replacement LSHT motor BMER with Valve cavity 4
