0-12m/min 26-29 Gauge AG Panel Steel Profile Metal Roof Sheet Roll
Forming Machine
AG Panel is a type of metal roofing panel commonly used in
agricultural buildings such as barns, sheds, and livestock
shelters. The name "AG" stands for Agricultural, as this panel is
specifically designed to meet the needs of the agricultural
industry. AG Panels are typically made from galvanized steel or
aluminum and have a low-profile, ribbed design. The panels are easy
to install and provide excellent durability and weather resistance.
AG Panels are available in various colors and finishes to match the
aesthetic requirements of the agricultural structures. They are
known for their affordability, longevity, and ability to withstand
harsh environmental conditions.
AG Panels are available in various sizes and thicknesses, depending
on the specific needs and requirements of agricultural buildings.
The most common thicknesses for AG Panels range from 26 gauge
(0.0185 inches) to 29 gauge (0.0142 inches). As for the dimensions,
AG Panels typically come in standard widths of 36 inches or 48
inches. The length of the panels can vary, with standard lengths
ranging from 8 feet to 20 feet. However, custom lengths can also be
manufactured to accommodate specific project needs.
Technical parameter:
| Item NO | Description | Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.7 | Effective width | 914mm |
| 1.8 | Feeding Coil width | 1100mm |
| 1.9 | Roller stations | About 20 stations |
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List:
| No. | Name | Quantity |
| 1 | 5 ton passive decoiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Hydrulic station | 1 set |
| 4 | Control box | 1 set |
| 5 | Out table | 1 set |
Working flow

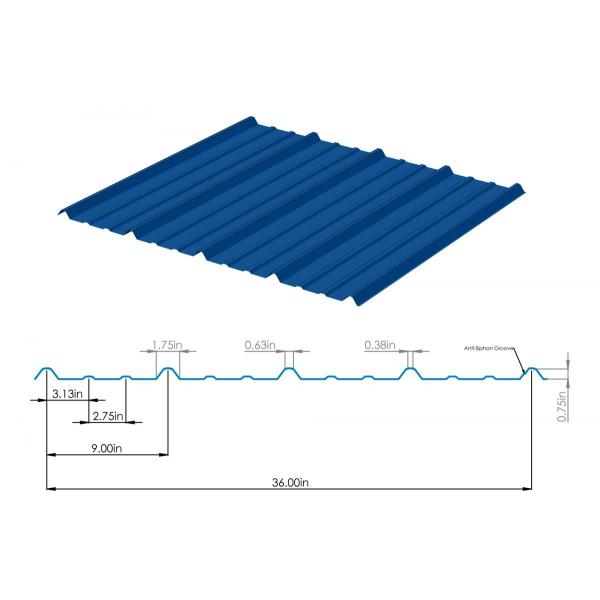

Profile Drawing

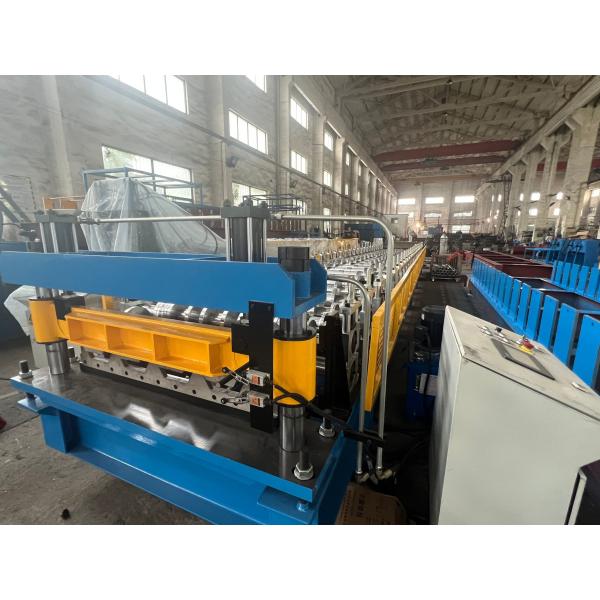

Machine Shows
Application
Company Introduction
Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise
integrating production, sales and services. We are mainly engaged
in providing machineries and equipment. Owing to a professional
teamwork, we are experienced in manufacturing, import and export,
customers' design, installation and test, technical solution and
after-sale services. We have shipped out our machines to more than
50 countries, and keep good business relationships with a large
amount of worthy customers, contributing to our great business
records and reputation.
Our service
1. Professional mechanical background sales for better undestanding
customer's need
2. Experienced in China machine industry for supplying
comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure
every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example
installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting,
etc
|
